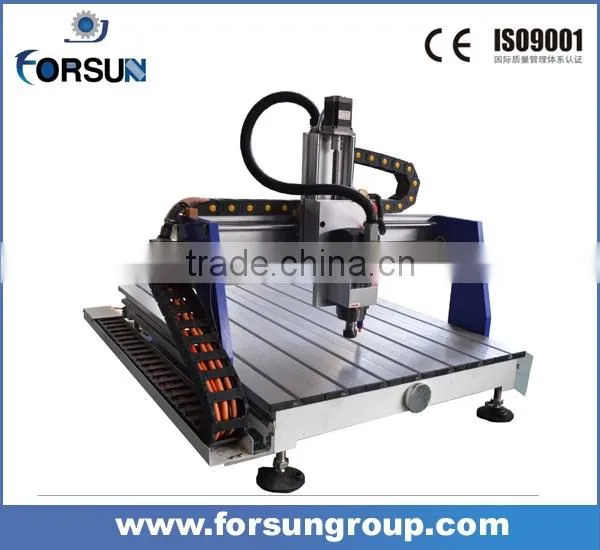

FS4040A branding machines small desktop cnc engraving machine brass cnc router
Suitable materials:
Cutting and engraving on wood,acrylic,aluminum,brass,PCB board,double color board, soft metal etc.
Applicate industry:
Advertisement,furniture,door,cabinet,electric industry and so on.
Machine Features:
1.Working area: 400mm*400mm*100mm(Option:600*900*100mm)
2.PVC table with Aluminum profile with clamps to fix materials
3.1.5 kw air cooling spindle promise long life,low voice and fast speed
4.DSP control system is very convient to operate no need to connect with computer
5.Tool sensor
6.HIVIN Linear Guide,TBI ball screw promise load heavy materials with stable working and high precision
7.1PH 220V 50HZ
8.Package: plywood case
Technical parameters:
| NO. | Items | Parameters | Option | |
| 1 | Working Area | X Y Z | 400*400*100mm | <=2000mm |
| 3 | Table Type | T-Slot Extrusion PVC | ||
| 4 | Accuracy | Working Accuracy | ±0.01/300mm | |
| Repositioning accuracy | ±0.01/300mm | |||
| 5 | Frame Structure | Cast steel | ||
| 6 | Drive of X,Y,Z | X.Y.Z with ball screw | ||
| 7 | Speed | MAX Traveling Speed | 6000mm/min | |
| MAX Working Speed | 4000mm/min | |||
| 8 | Spindle | Spindle Power | 1.5KW 0-24000r/min | Italian HSD Spindle |
| 10 | Drive | Stepper | ||
| 14 | Working Voltage | AC220V/50Hz | ||
| 15 | Commend Code | G Code | ||
| 16 | Operating System | DSP | NC Studio | |
| 17 | Net Weight /Gross Weight | 80Kg/130Kg | ||
| 18 | Packing size | 860*830*930mm | ||
| All parameters above subject to change without prior notice | ||||
Air cooling spindle
DSP controller system
Stepper motor
HIWIN linear guide
TBI ball screw
Option Items
1.Oil mist cooling system:When processing hard materials,the temperture will very high,then need it use for cooling cutting tools
2.Vacuum pump:If you need vacuum table,it will very necessary
3.Dust collector: attract dust
5.AC Servo motors
6.Vacuum table system
7.NC studio Control system
Rotary axis,used for engraving cylindrical materials
The Mini CNC Router Machine Working Samples
The Mini CNC Router Machine Relaed Products
FS6090C Strong body and 3 axis with dust proof
The Mini CNC Router Machine Packing
1. Delivery:within 30 days
2.Payment:T/T,L/C
3.Packing:plywood case or as your requirement
The Mini CNC Router Machine CE
After-sale service about our mini cnc router machine:
1.18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by email,fax or calling.
3. free training in our factory.Also we can dispatch our technician to customers place if customer agree to air ticket,food and hotel.
If you are not sure which cnc router machine you need,pls tell us the follow details:
1.the raw materials you need cutting or engraving
2.the max working size you need(length,width and thickness)
If u own a Forsun you'll own 24 after service form Forsun, 1.5 year guarantee of the machines. Give Forsun a chance, and you will win a surprise! And if you are interested in our products, please let we know!
♥ Send an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
