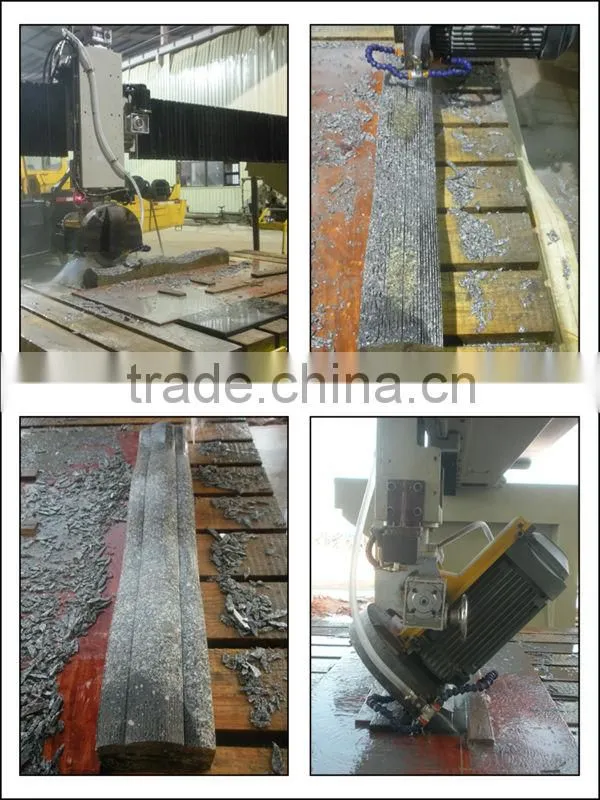

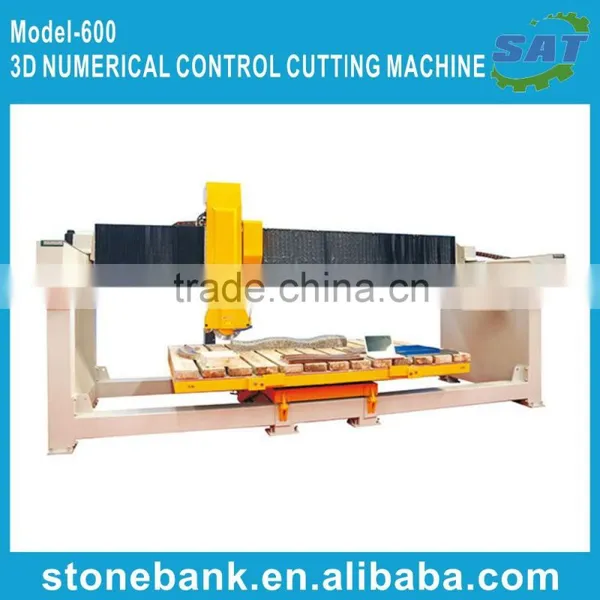

XZCQ-600 3D NUMERICAL CONTROL CUTTING MACHINE(MONOLITHIC)

XZCQ-600 3D NUMERICAL CONTROL CUTTING MACHINE(MONOLITHIC) thumbnail-1
XZCQ-600 3D NUMERICAL CONTROL CUTTING MACHINE(MONOLITHIC) photo-1
US$ 35,000 - 45,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Bridge Saw
Use:
Granite
Contact Supplier Request Quote Chat Now
Stone Bank Trading Department Yuncheng District
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Bridge Saw
Use Granite
Production Capacity 100%
Place of Origin Guangdong, China
Brand Name SAT
Model Number 600
Voltage 380V
Power(W) 50hz
Dimension(L*W*H) 5800x2800x2800mm
Weight 5000KG
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas
Product Description



This machine is controled by system of 3d hererotype stone cutting.through the man-machine interface,enter the code of figure,which is easy to know the processing efficiency and schedule.except the normal bridge-cutting function ,it contains the funciton of cutting 2d beeline plane and 3d curve and arcside.

this machine is monolithic,with machine,electronic control and oil-pressure.it's easy to transport and fixing,which is featured by good rigidity.it's drived by high-quality rail to insure the processing definition.



Machine dimension

5800x2800x2800mm

Water put

25L/min

Working table outlook dia

3200x1850mm

Weight

5000kg

Machine setting area

50m²

Blade size

Ø350-Ø500mm

Power full

380V 50HZ

Max production dia

3200×1850mm

Total power

19.4kw

Cutting thickness

300mm

Main motor power

11kw

Pressure system power

1.5kw

left/right power

2.3kw

working pressure

5-7Mpa

front/back power

2.3kw

Hydraulic pressure oil

46#

Rise/down power

2.3kw

Machine lubricating oil

CD40
