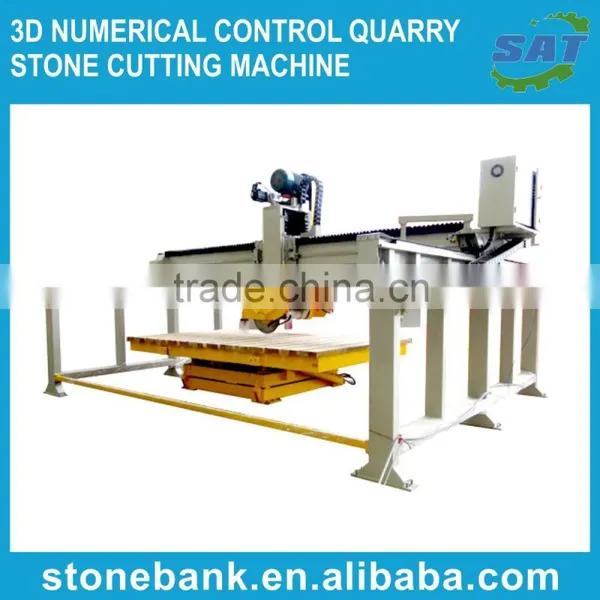

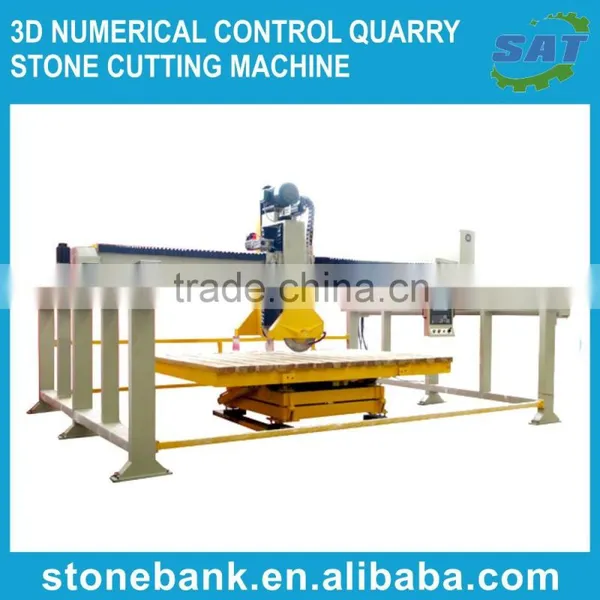

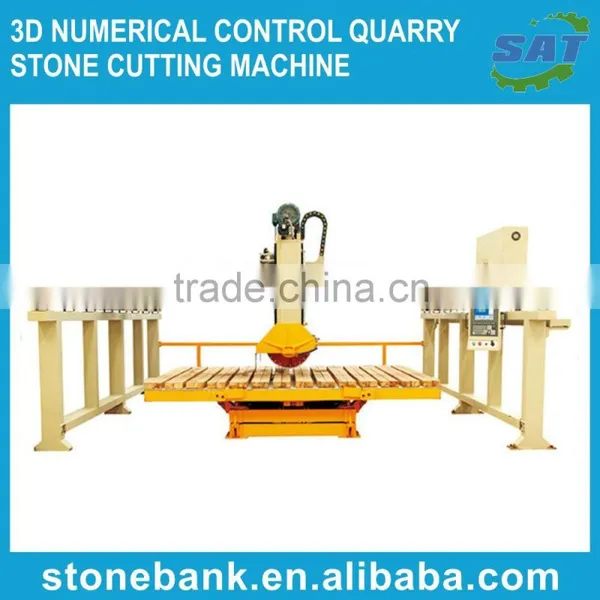

Help Center3D Numerical Control Quarry Stone Cutting Machine (SPLIT STYLE)
Related Products
Specification
Bridge Cutter is ideal and special equipment for stone processing factory, especially widely used in cutting big size plates such as granite, marble, artificial marble and concrete plate etc..

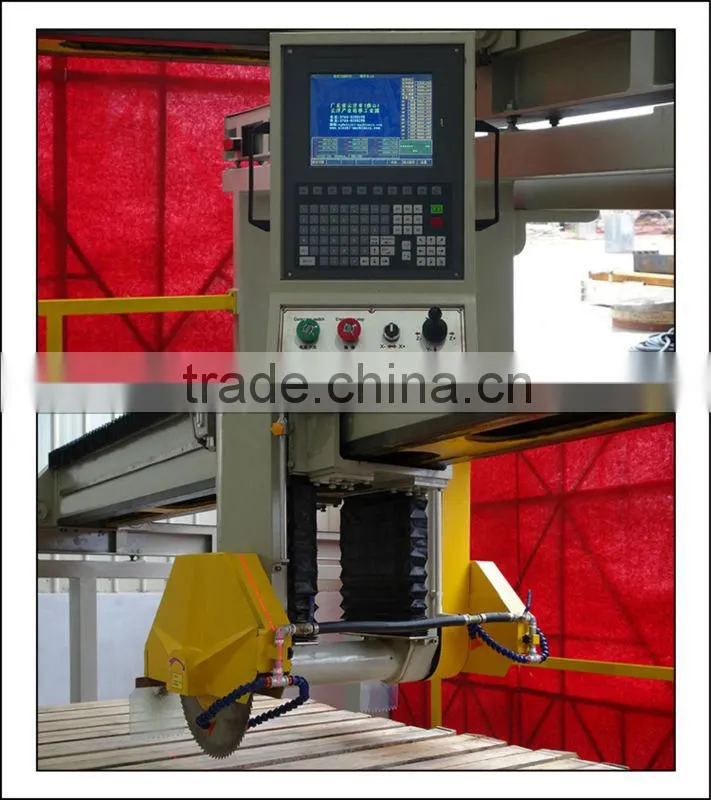

Adopted laser device positioning system and CPU controlling system, with reliable function, precise cutting and easy operation, this equipment carries out high efficient cutting by slow cutting and quick return.
The movement of crossbeam and carriage is controlled frequency coverter, disc elevation is controled by adjustable hydraulic cylinder,the trolley can be rotated in a range of 90 degree.
Machine dimension |
5800x4500x3200mm |
Water put |
50L/min |
Working table outlook dia |
3200x1850mm |
Weight |
6000kg |
Machine setting area |
50m² |
Blade size |
Ø350-Ø600mm |
Power full |
380V 50HZ |
Max production dia |
3200x1850mm |
Total power |
26.9kw |
Cutting thickness |
200mm |
Main motor power |
18.5kw |
Pressure system power |
1.5kw |
left/right power |
2.3kw |
working pressure |
5-7Mpa |
front/back power |
2.3kw |
Hydraulic pressure oil |
46# |
Rise/down power |
2.3kw |
Machine lubricating oil |
CD40 |

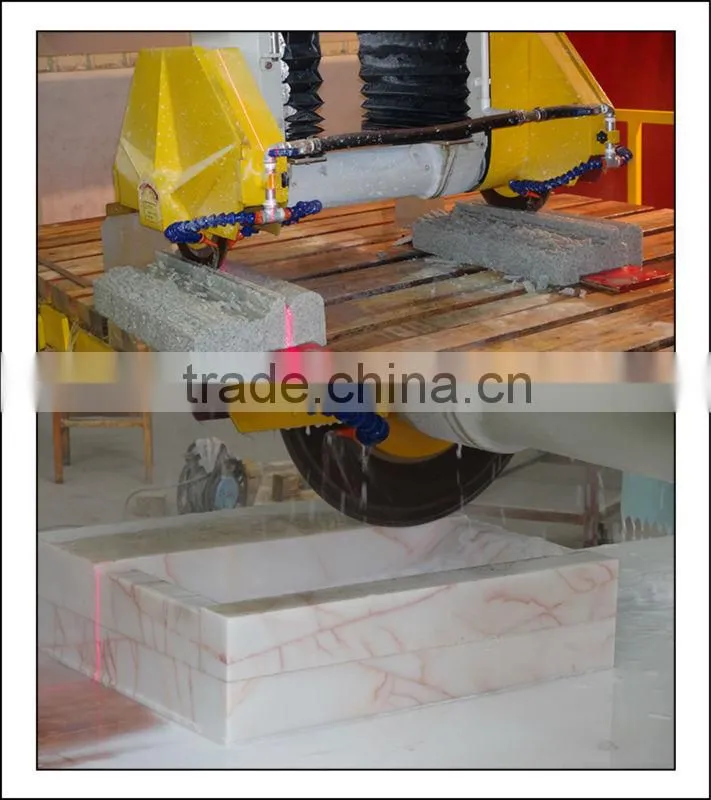

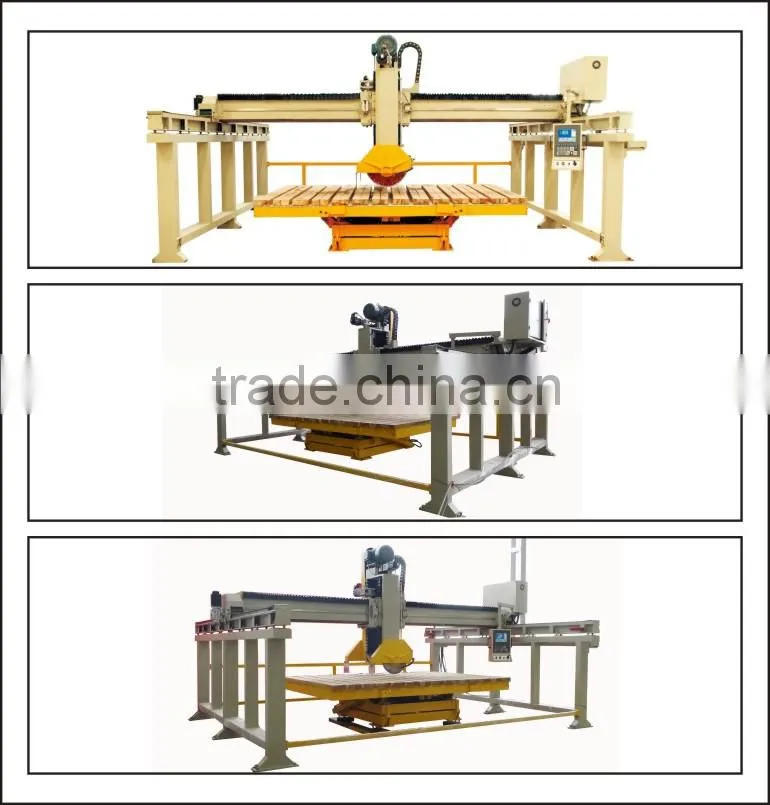

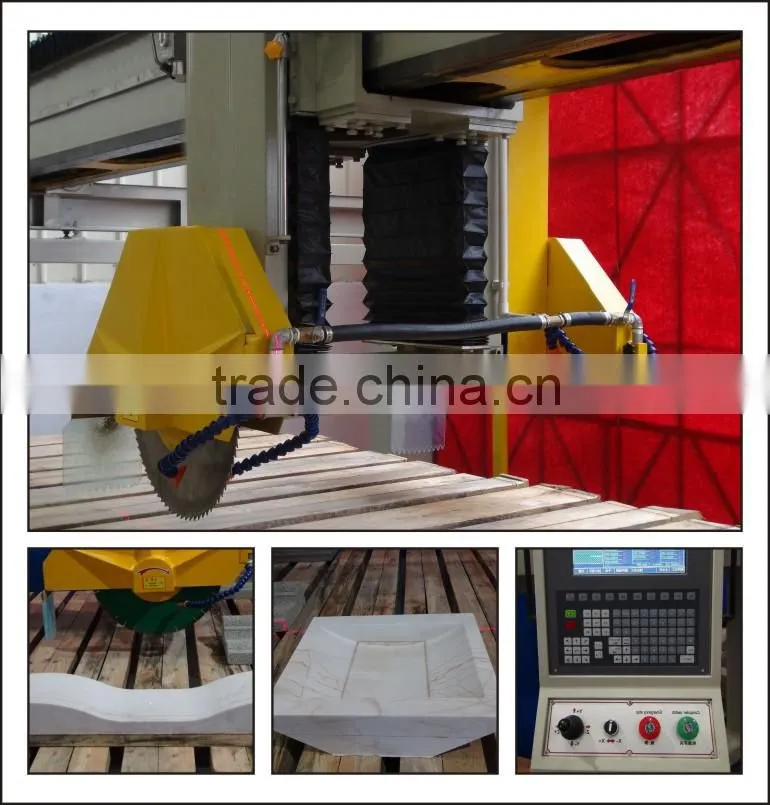

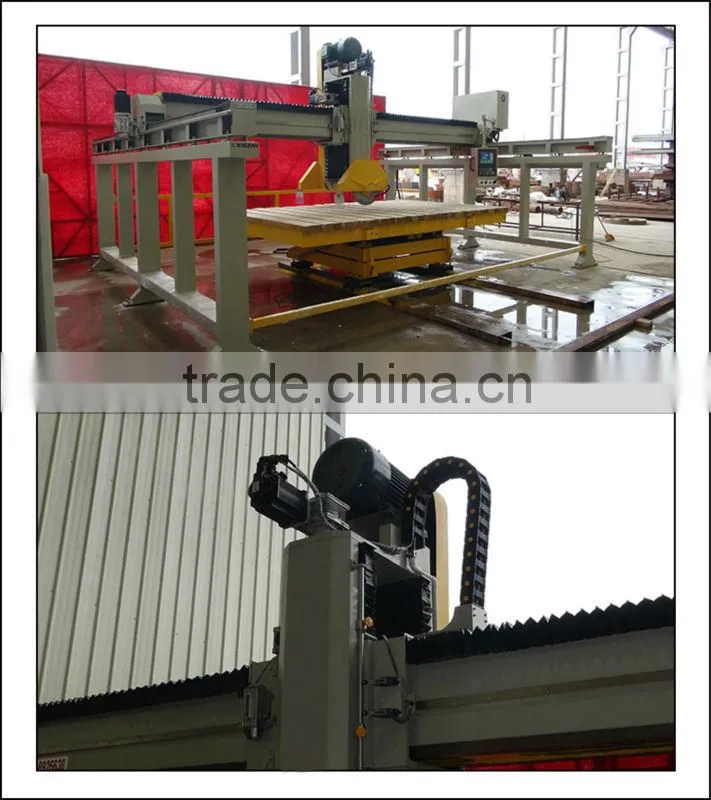

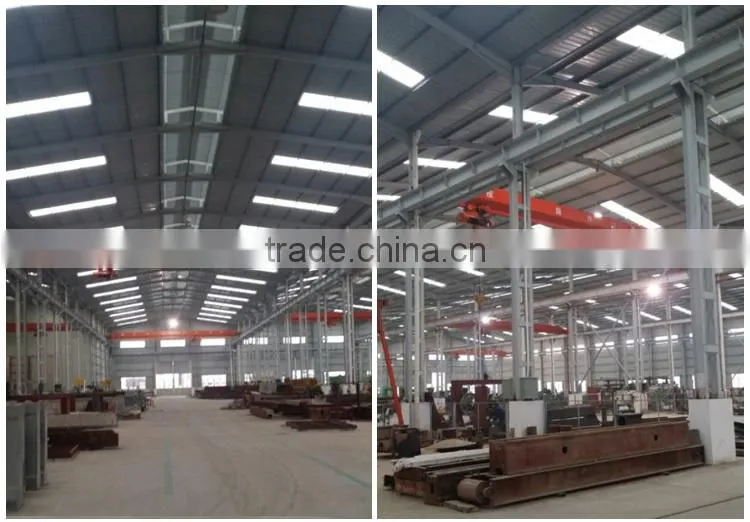

Machine show
BRIDGE CUTTER TOOLS
1PCS
Diameter350mm Saw blade cutting Marble, Segment Hight 7.5mm, Seg.Thickness 2.4mm, Metal core thickness is 1.8mm, arbor hole 50mm
1.Payment Terms
(1)50% of contract value will be paid by T/T in advance as down payment;
(2)50% of contract value will be paid by T/T before the machine delivery..
2. Delivery Terms
Within 30 days after receipt of down payment.
3. Packing
To be packed in standard packing, wooden form.
4. Start-Up
This includes all actions necessary to put the above-mentioned equipment in operation until the completion of the production acceptance standards.
5. Training
Includes on-site basic operation and maintenance training.
Warranty
The Seller guarantees that the equipment is completely brand-new and will conform to the technical specifications. The mechanical guarantee on machinery and equipment shall be 12 months after the acceptance date. During the guarantee period, if the accessories or equipment are damaged, due to the Buyer’s insufficient maintenance or improper operation of the equipment, the Seller will replace or repair it at Buyer’s charge. If the said damages are due to faults in design or workmanship, the Seller will replace or repair it at his own cost. (Vulnerable parts excluded)
