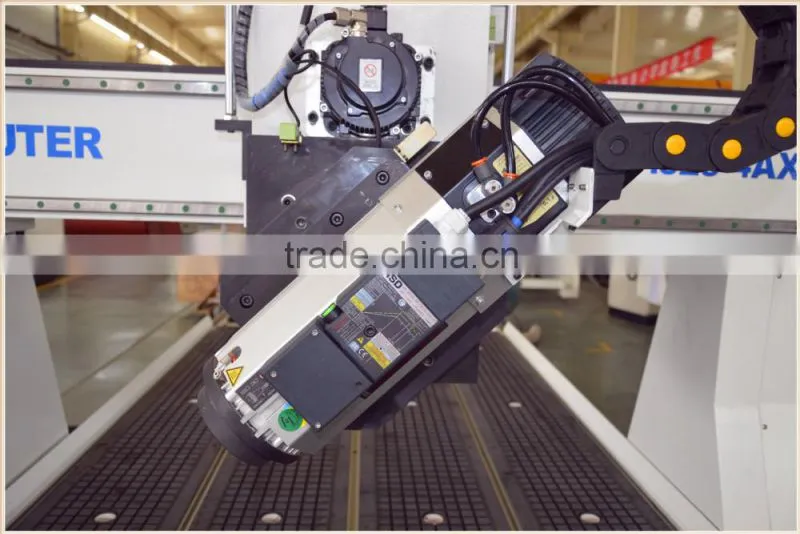

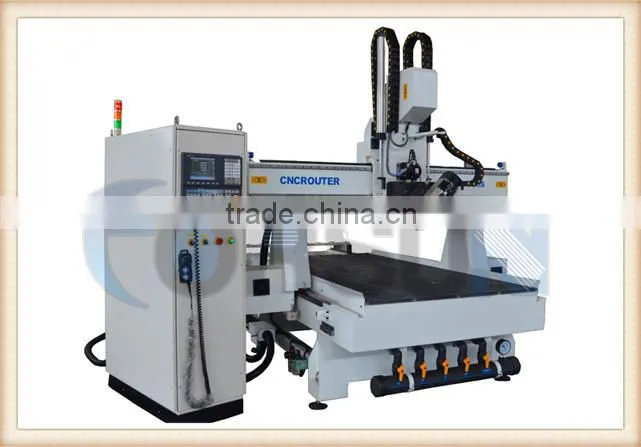

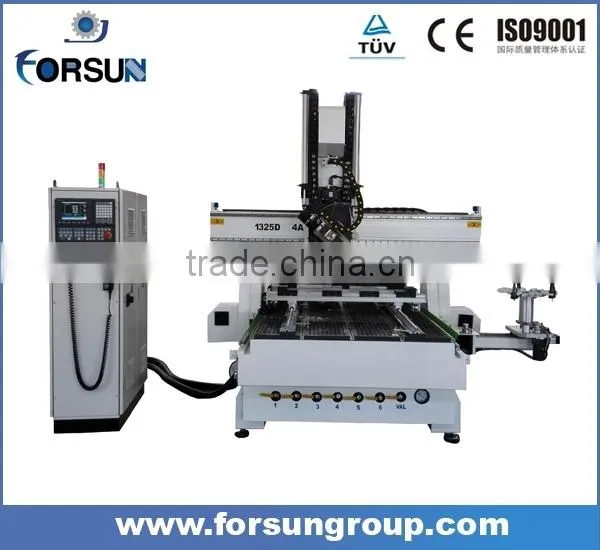

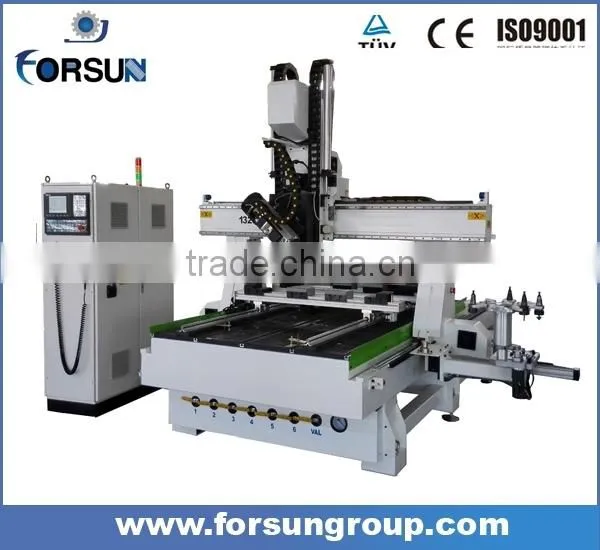

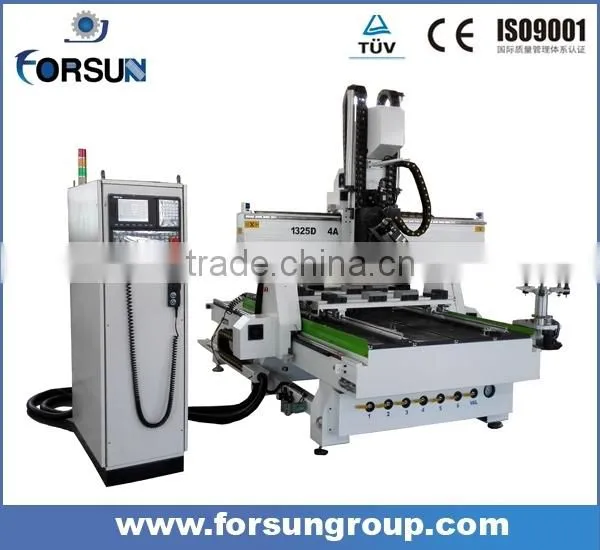

Best sales!Woodworking cnc router with 4 axis engraving plastic machinery
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,
artificial stonesplastics and soft metal sheets suv.
The parameters about the 4 axis pvc engraving machine :
| NO | Description | Parameter |
| 1 | X,Y,Z, Working Area | 1300x2500x500mm B axis is with 360 degree |
| 2 | Table Size | 1300×2500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
| 5 | Table Surface | Vacuum and T-slot Combined |
| 6 | Frame | Heavy Steel Tube Structure |
| 7 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 35000mm/min |
| 12 | Spindle Power | 9.0KW HSD Spindle |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | 850W YASKAWA AC Servo motors |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | USB / Ethernet |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 4280*2290*2050mm |
| 26 | N.W. | 1700KG |
| 27 | G.W. | 1800KG |
| 28 | Optional Parts | Siemens Control system |
| Colombo Spindle | ||
| Siemens Servo system | ||
| Dust Collector System | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System |
Other Pictures:

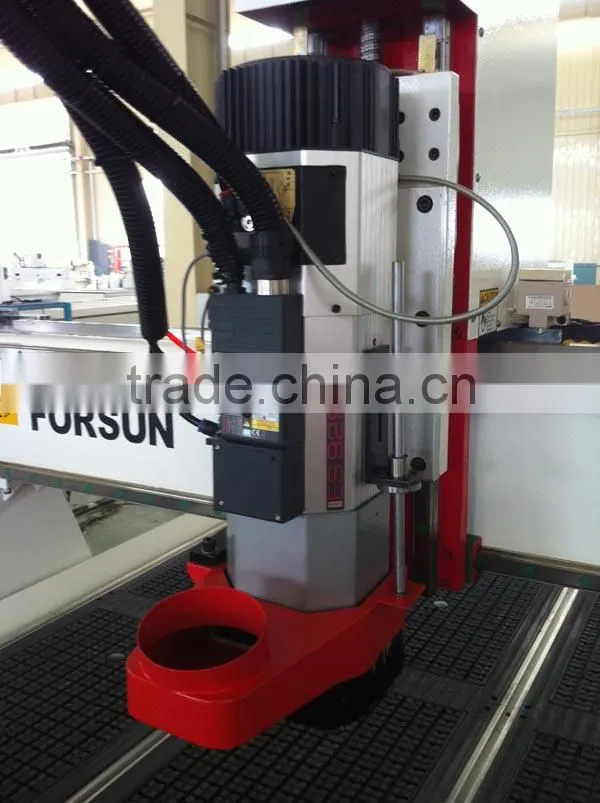

9.0KW HSD Spindle from Italy
Eisler Gear box from Germany
Auto Calibrication
YASKAWA Servo System from Japan
Professional Cables for CNC Router.High Flexible,Temprerature resistant,High anti-interference
Syntec control system from Taiwan
YASKAWA Servo from Japan

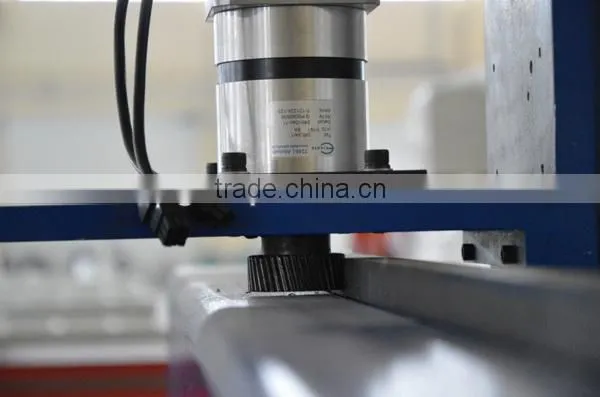

Powerful Helical Rack and Pinion

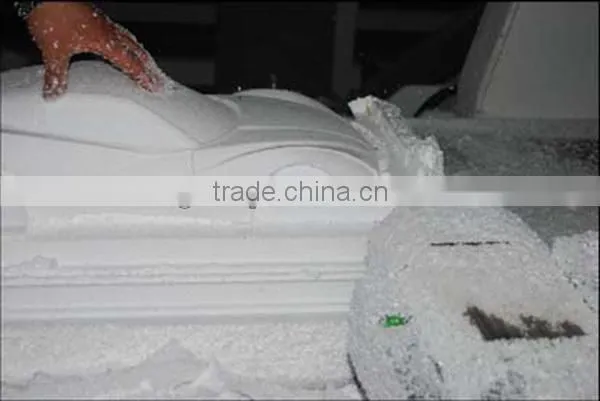

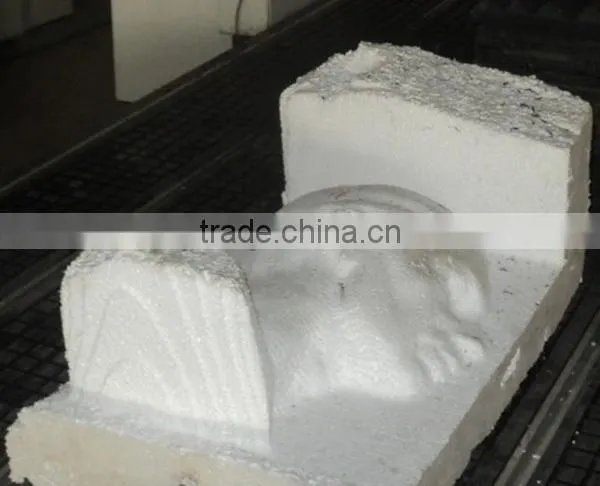

Working samples:
| workshop |
1) The main target of cutting:Foam,Styrofoam,EVA,EDE,EPS and so on.
Blade can not be replaced.
2)Full computer control ,mechanical transmission,high precision.
3)2D auto CAD drawing,easy to control.
Certified:
What kind machine do you offer ?
We offer CNC Router,Laser cutting machine,plasma CNC Router,Marble CNC Router
What materials can YOUR machines route and cut?
Our routers work with a full range of materials including all non-ferrous metals such as brass
and aluminum, any type of wood, granite or corian, virtually all types of acrylic and plastics,
plus glass and sign foam.
What kind of software does YOUR machine need?
The router is an open based system and can handle any HPGL or G-code software.
What other software ,other than what's included with the machine,Do I need?
Within 12 days after the deposit
Packing:
Wooden case or as your requirment
Payment:
T/T,50% deposit and the balance 50% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
5.warranty:1.5 years
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
