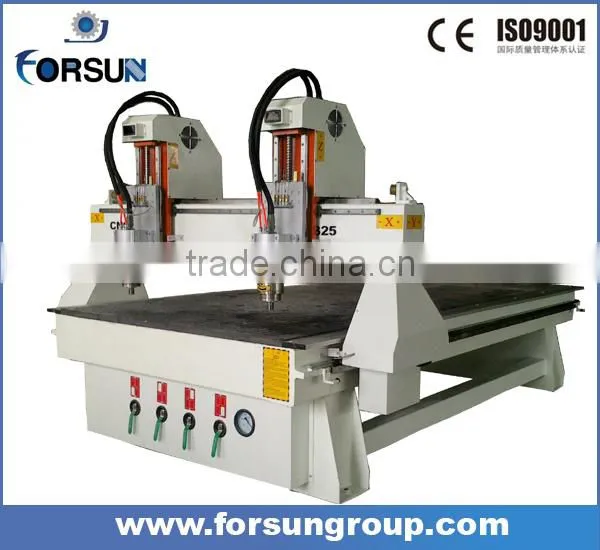

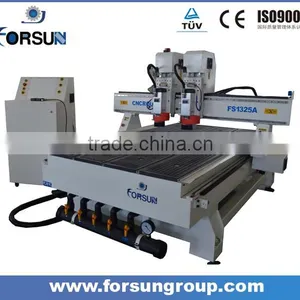

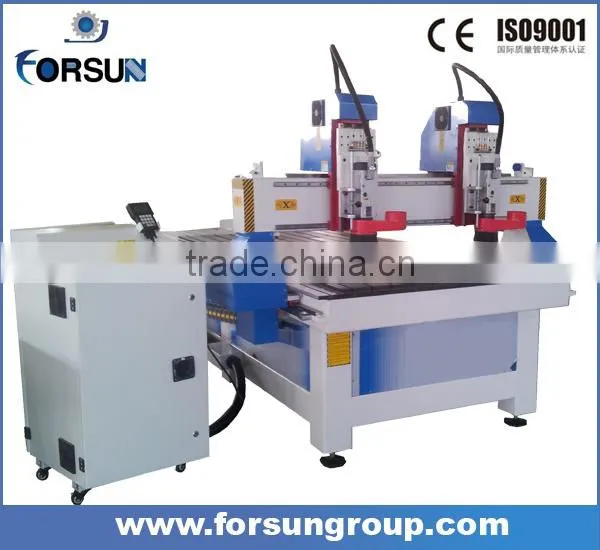

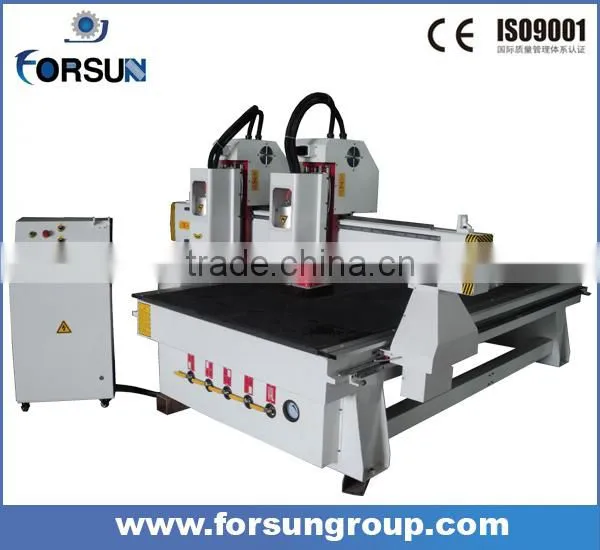

China supplier multi spindle 3d woodworking cnc milling machinery for sale
1.Main introduction of woodworking machine for sale
1)6mm thickness heavy duty steel tube for machine’s body, and 8 thickness for the gantry,
the machine structure is strong and stable.
2)2 sets spindles with 2 sets inverters, every inverter has a switch, can flexibly choose the
spindles work separately or totally, verysuitable for mass processing work, can increase
the working efficiency.
3)The spindle can work together or not. You can set it according to your require, one machine
with two machines' function. Very afforable!!
2. Technical Parameters of woodworking machine for sale
NO. |
Items |
Parameters |
||
1 |
Working area(X Y Z Axis) |
1500*3000*200mm |
||
2 |
Table Type |
T-Slot & Vacuum table |
||
3 |
Working Accuracy |
±0.03/300mm |
||
|
Repositioning Accuracy |
±0.02/300mm |
||
4 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
||
5 |
MAX Travel ling Speed |
32000mm/min |
||
|
MAX Working Speed |
15000mm/min |
||
6 |
Spindle Power |
2.2 KW Air cooling spindle |
||
|
Spindle Speed |
0-18000r/min |
||
7 |
Drive and Motor |
Step driver and motor |
||
8 |
Working Voltage |
AC220V/60Hz |
||
9 |
Operating System |
DSP |
||
10 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
||
11 |
Packing size |
3170*1920*1850mm |
||
3.Top Quality Components of woodworking machine for sale
We use top quality components for the machine, such as CS water cooling spindle,
Fuling Inverter, Yako Driver, Hiwin linear and so on, to keep the machine in best
condition even after working for many years.
1)Imported high-precision ball screw, which moving smoothly, to ensure the machine’s
high precision.
2)Well-known Spindle, strong cutting ability, low noise, to ensure the machine working for
long time.
3)High-performance drive motor to ensure the machine’s high speed and accuracy.
4)Perfect design, top quality accessories, to minimize the machine’s failure rate.
5)Breakpoint specific memory to keep the carving status when power off, processing
time forecast and other functions in case of the accidental power outages.

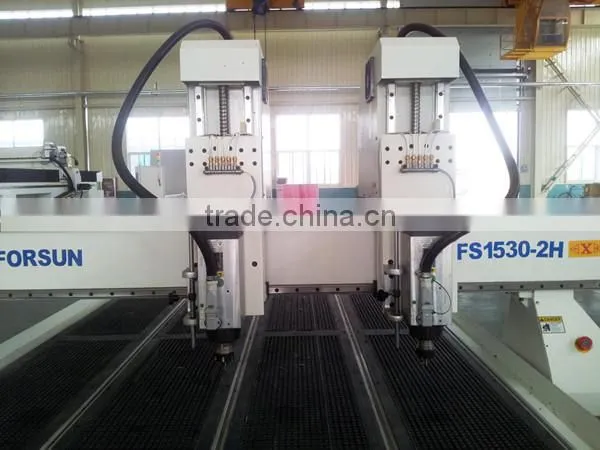

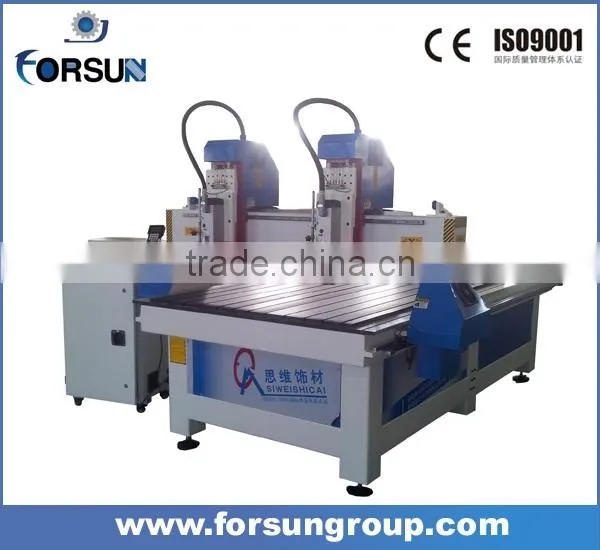

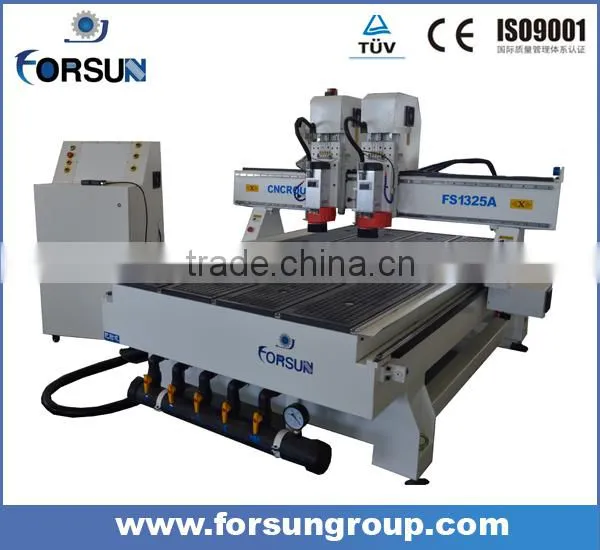

Independent double Spindles on the run

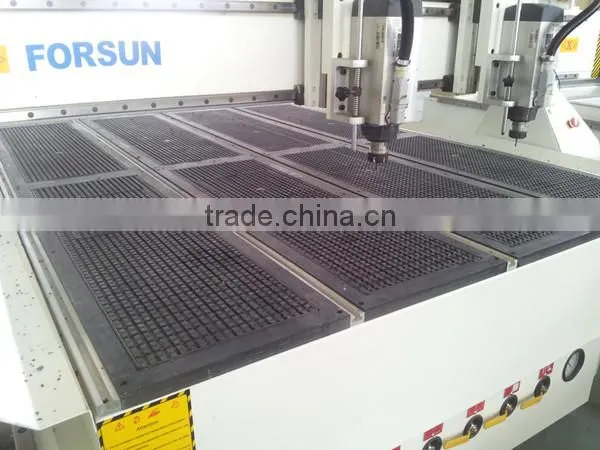

Working Table: Vacuum & T-slot combined

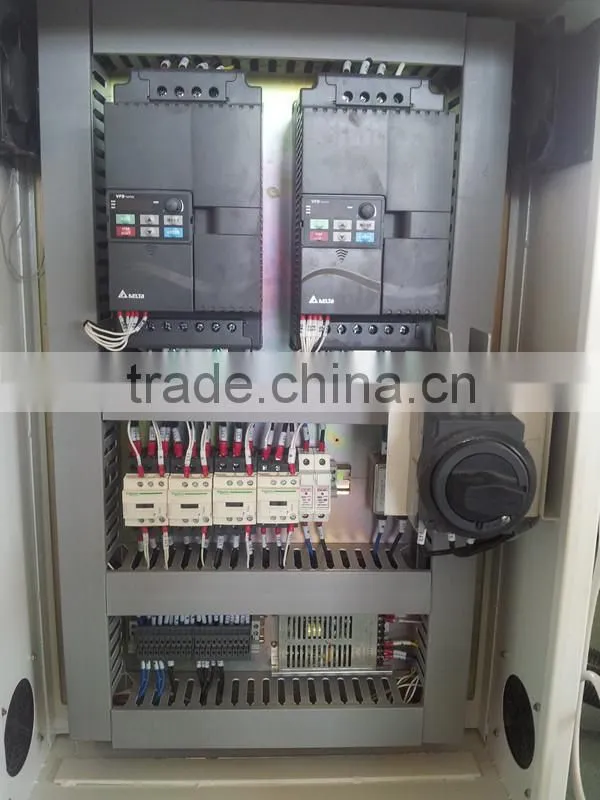

Famous brand Taiwan Delta Inverters:

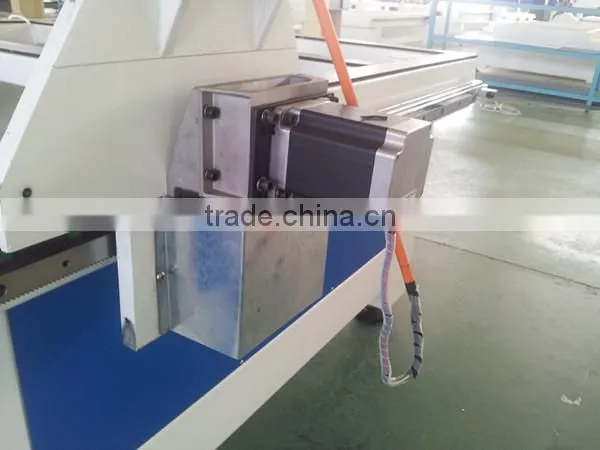

Big torque Stepper motor, with 8 wires:

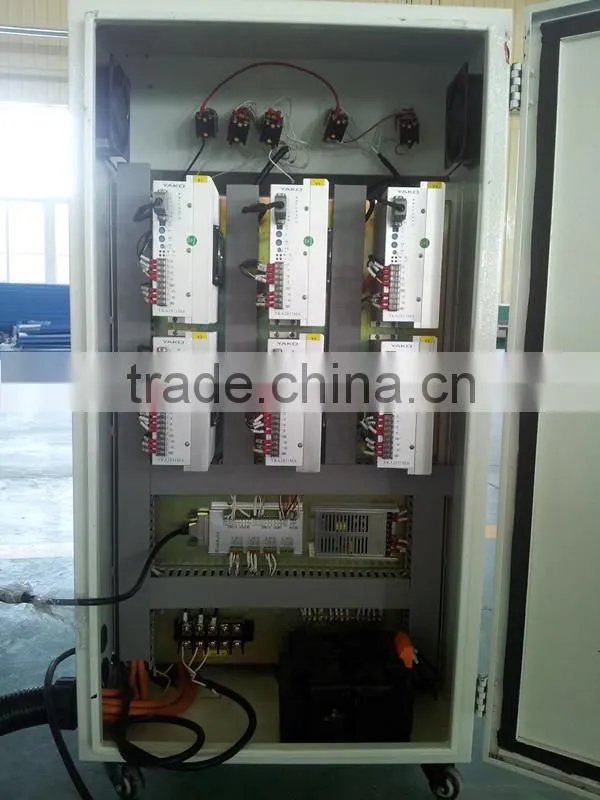

Big power YAKO drivers

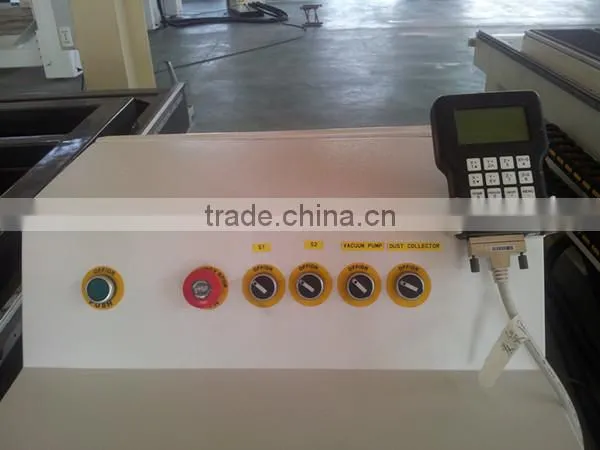

DSP control system
4. Application of our woodworking machine for sale
1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.
Working Samples
Waterproof inside packing, plywood outside packing.
Services of our woodworking machine for sale
1. 18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers'
place if customer agrees to air ticket, food and hotel.
Our Factory:
Our Certificate:
Our Customers visit:
Q1:How long is the delivery time?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific
requirements, it would be 15 to 30 days.
Q2: What mode of payment?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this machine during warranty period,
what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just let us know,we will
give you solutions in 30 minutes.
