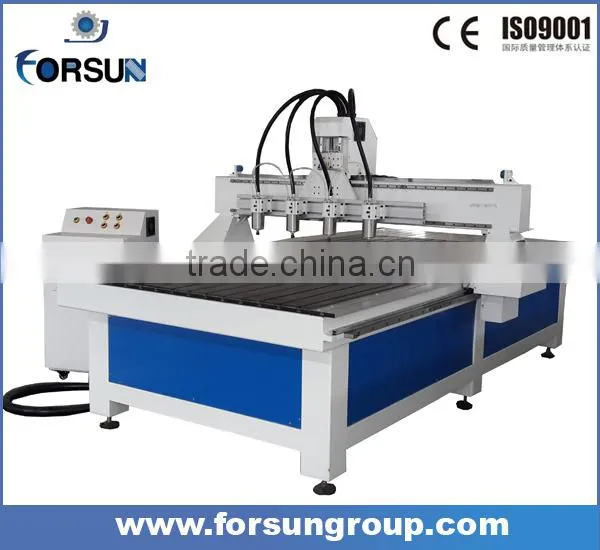

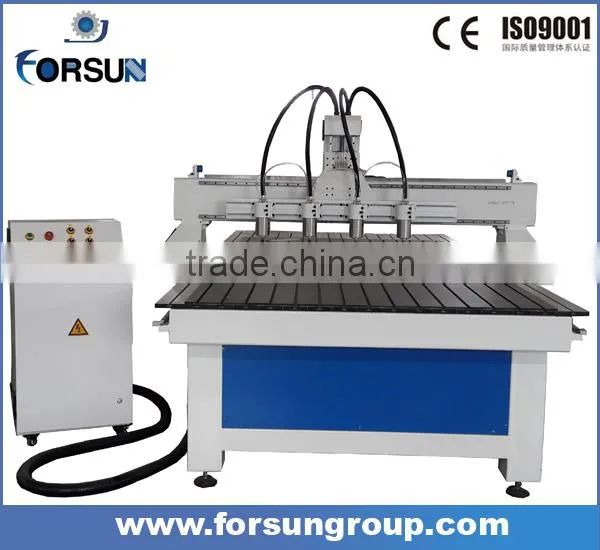

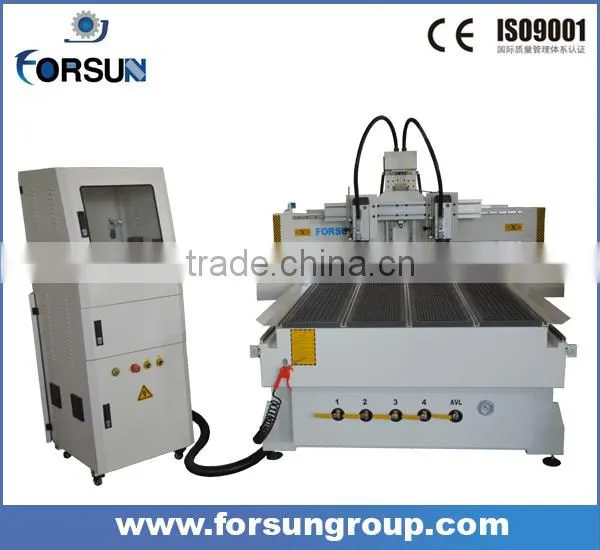

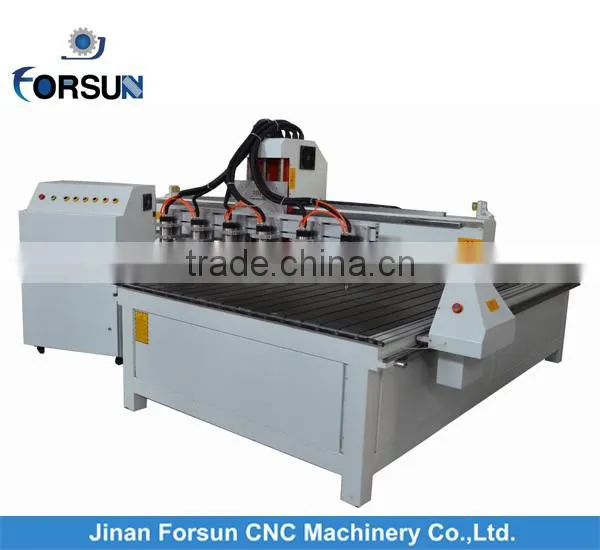

FS1530A-6H CNC 6 heads cnc router multi-spindle cnc router machine
1. Standard features of 6 heads cnc router:
X,Y,Z Working area:1500*3000*200mm
1) Solid steel frame construction thicken to 8mm
2) 2.2 kw water cooling spindle
3) steppor driver and motor
4) T-Slot PVC table with Aluminum sheet
5) HIVIN Linear Guide for maximum stiffness
6) DSP controller system
7) Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw
8) Art Cam software
9) Chinese Fuling Inverter
10) 220V 60HZ
11) Plywood case package
Option:
1.Vacuum System
2.Dust Collector system
3. HSD Spindle
4.Rotary Axis
2. Application of our 6 heads cnc router:
Engraving on wood,MDF,plywood,acrylic,PVC sheet,double color boards,EPS and so
on,mainly for mass production of embossment
3. Technical Parameters of 6 heads cnc router:
NO. |
Items |
Parameters |
|
1 |
Working area |
1500*3000*200mm |
|
2 |
Structure |
Solid steel frame construction |
|
3 |
Table Type |
T-Slot Extrusion PVC |
|
4 |
Working Accuracy |
±0.03/300mm |
|
5 |
Re-positioning Accuracy |
±0.02/300mm |
|
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
|
7 |
MAX Travel ling Speed |
32000mm/min |
|
8 |
MAX Working Speed |
15000mm/min |
|
9 |
Spindle Power |
2.2 KW water cooling spindle |
|
10 |
Spindle Speed |
0-18000r/min |
|
11 |
Drive and Motor |
Step driver and motor |
|
12 |
Working Voltage |
AC220V/60Hz |
|
13 |
Operating System |
DSP |
|
14 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
|
15 |
Packing size |
3170*1920*1850mm |
|

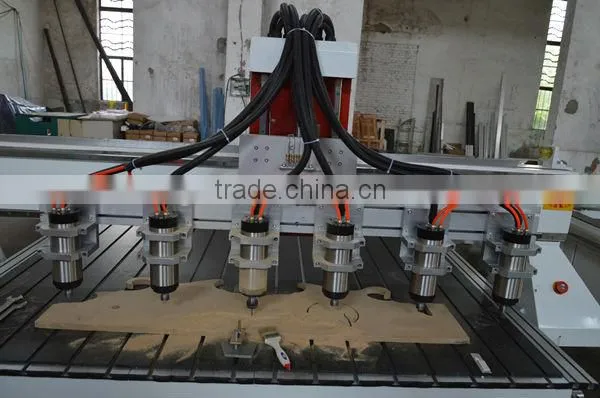

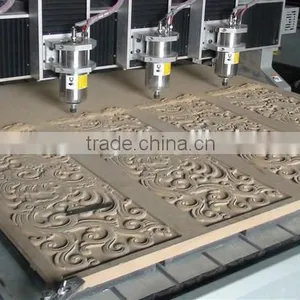

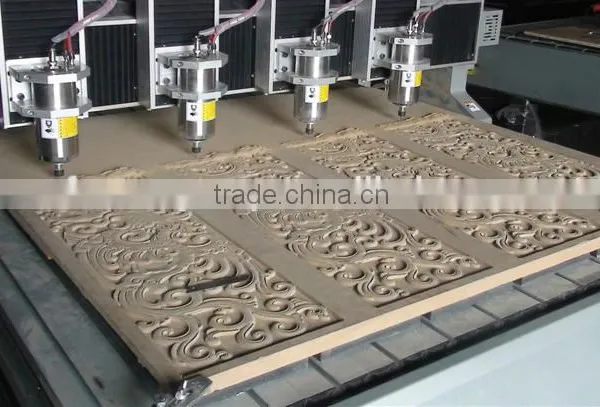

Spindles on the run of 6 heads cnc router

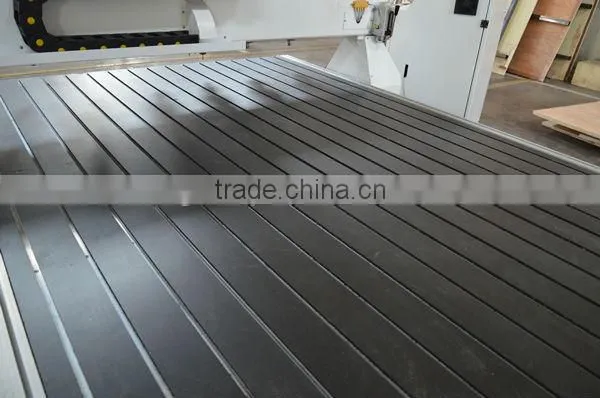

Working Table of 6 heads cnc router

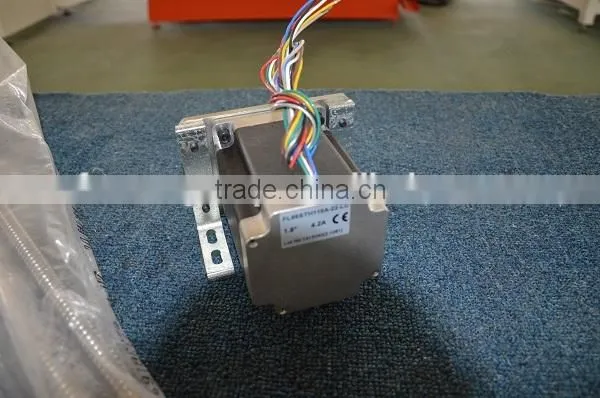

Stepper motor:

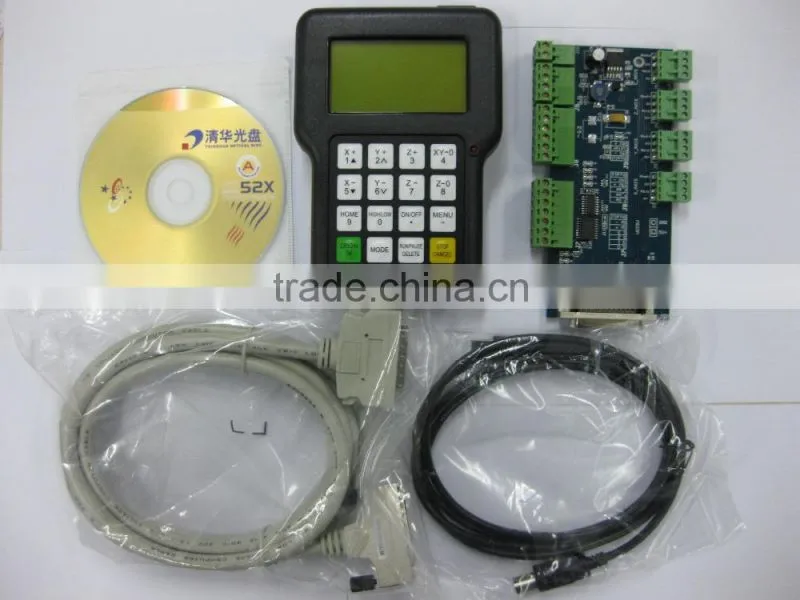

DSP contol system

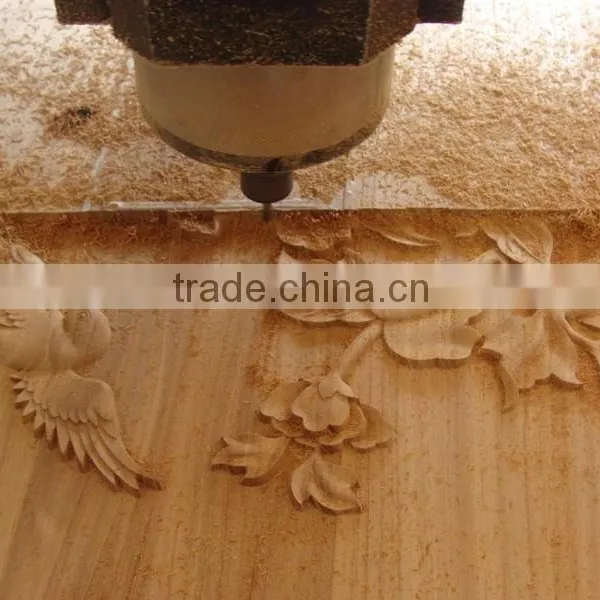

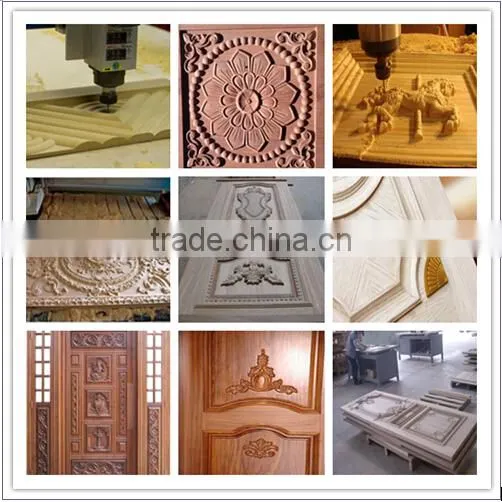

Working Samples of 6 heads cnc router
Waterproof inside packing, plywood outside packing.
Services of our 6 heads cnc router :
1. 18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers'
place if customer agrees to air ticket, food and hotel.

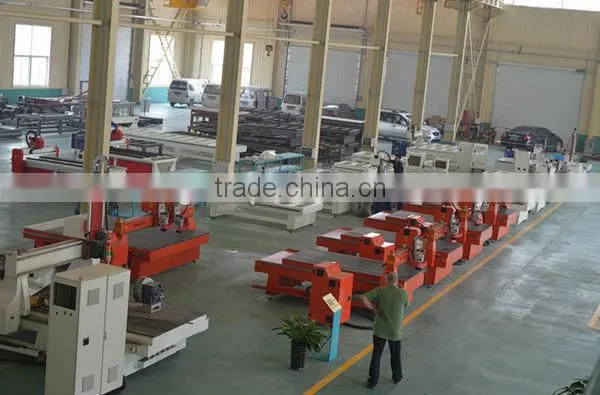

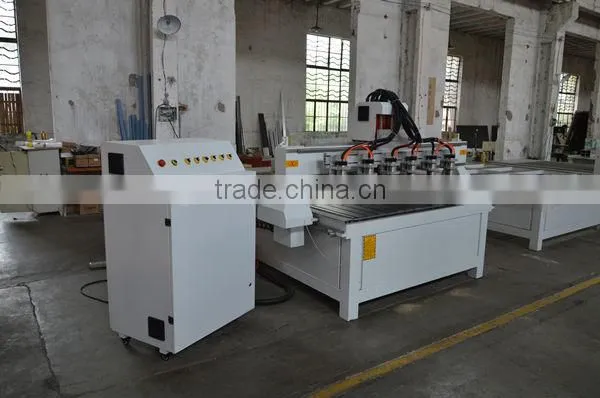

Our Factory:
Our Certificate:
Our Customers visit:
Q1:How long is the delivery time of this 6 heads cnc router?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific
requirements, it would be 15 to 30 days.
Q2: What mode of payment for this 6 heads cnc router?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this machine during warranty period,
what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just let us know,we will
give you solutions in 30 minutes.
