Specifications
1.HIWIN Linear Guide for maximum stiffness2.DSP controller
3.ArtCam software

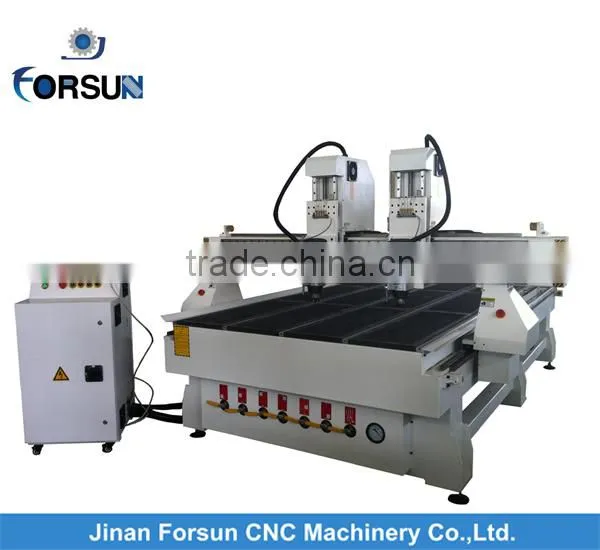

double heads cnc woodworking machine cnc relief engraving machine
Application:
1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum
Technical Parameters:
NO. |
Items |
Parameters |
Option |
|||
1 |
Working Area |
XYZ |
1500*3000*200mm |
<=2000mm |
||
3 |
Table Type |
T-Slot Vacuum table |
|
|||
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
|||
Repositioning Accuracy |
±0.02/300mm |
|||||
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
||||
7 |
Speed |
MAX Traveling Speed |
32000mm/min |
|||
MAX Working Speed |
15000mm/min |
|||||
8 |
Spindle |
Spindle Power |
3.5 KW Air cooling spindle |
Italian HSD Spindle |
||
Spindle Speed |
0-18000r/min
Stepper |
Servo |
||||
10 |
Drive and Motor |
|||||
12 |
Working Voltage |
AC380V/50Hz |
AC380V/60Hz |
|||
14 |
Operating System |
DSP |
NCSTUDIO |
|||
15 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
||||
16 |
Packing size |
3570*1920*1850mm
|
||||
All parameters above subject to change without prior notice |
||||||
Standard features:
1)Working area: 1300mm*2500mm*200mm(X,Y,Z axis)
2) Solid steel frame construction thicken to 10mm , strong stability because of low center of gravity
3) 3.5 kw COLOMBO air cooling spindle,long life and good cooling effect
4) Stepping drives ,large power and high accuracy
5) T-Slot Vacuum table, can adsorb different size materials and has strong suction
6) HIWIN Linear Guide for maximum stiffness
7) DSP controller,with U disk avaliable not need the computer,simple operation,good independence
8) Drive System X and Y axis: Rack and Pinion, Z axis: Lead Screw.High precision,large load bearing and stable running
9) Automatic Tool Calibration,better control of the distance between the knife and the material,improve the work efficiency
10) ArtCam software,
11) Delta Inverter
12) 3PH 380V 50HZ
13) Plywood case package
Option:
1. Dust Collector system
2. AC Servo motors
3. HSD Spindle
4. Rotary Axis
Other machines parts pictures:

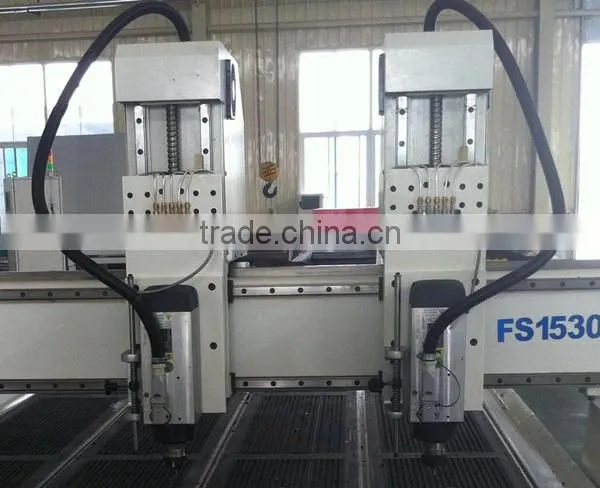

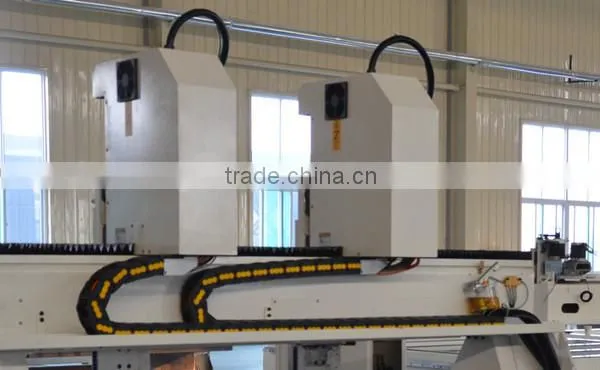

Two separate heads.

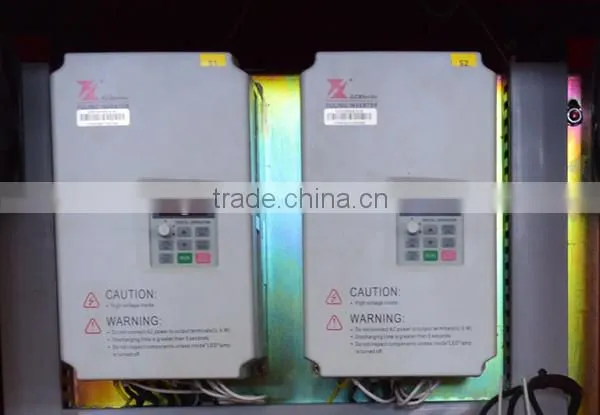

Inverter

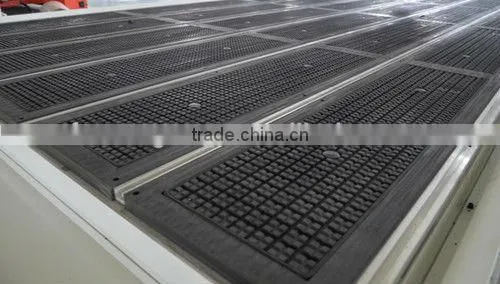

T-slot vacuum table

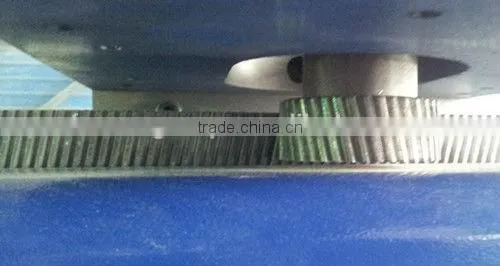

Rack and pinion

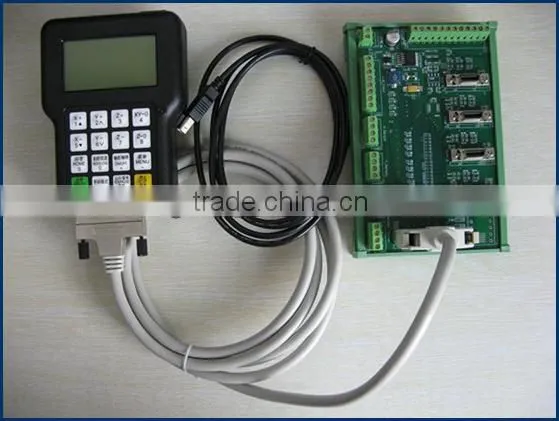

DSP contrller system (option: NC Studio system)

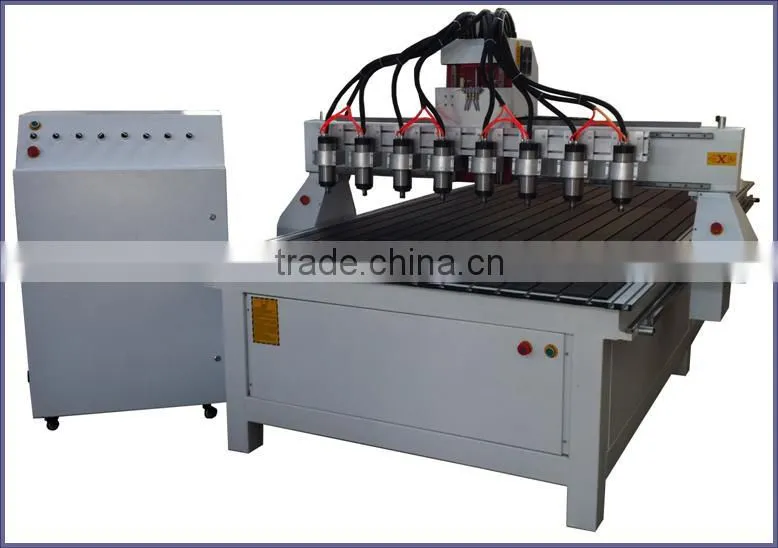

Related machine (customized to your needs)

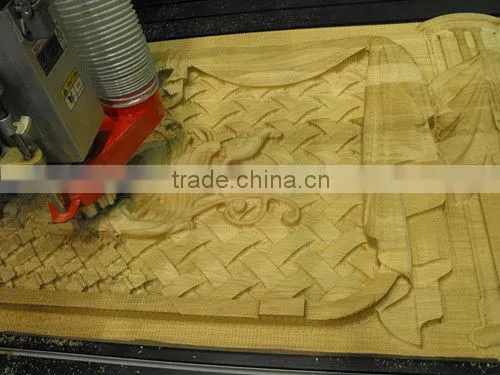

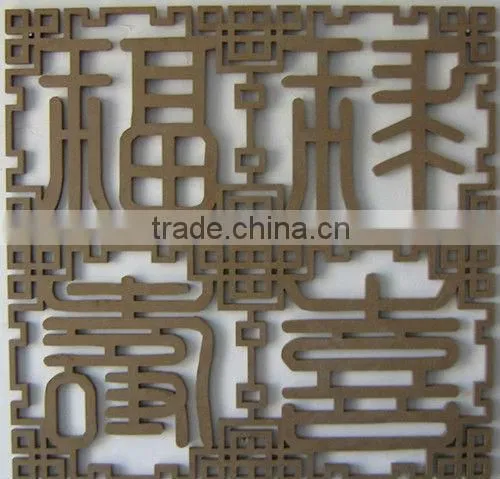

Working Sample:
Certified:
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
Should you have any question ,contact me!
