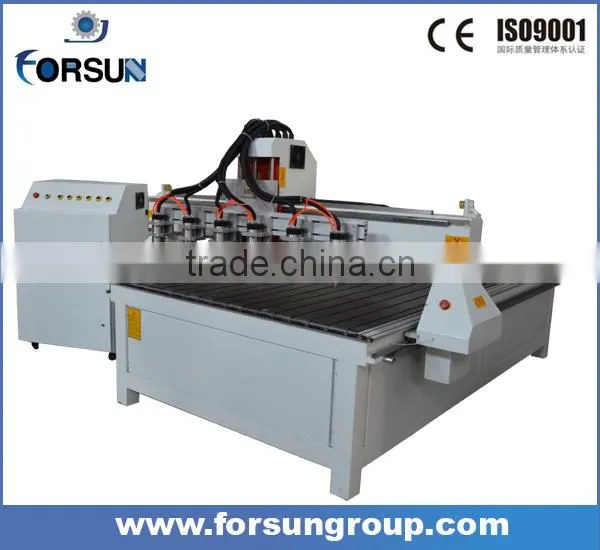

High qualtiy mass processing work woodworking cnc router/wood carving machine

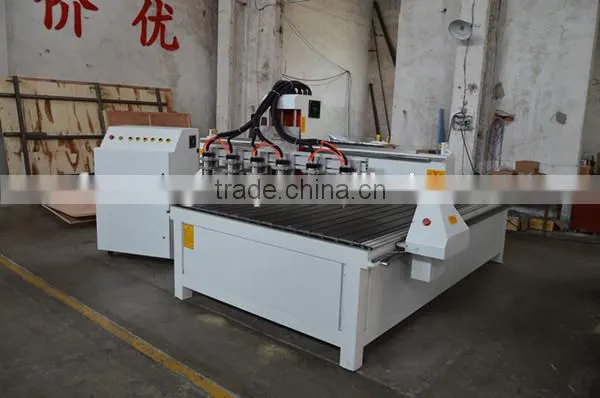

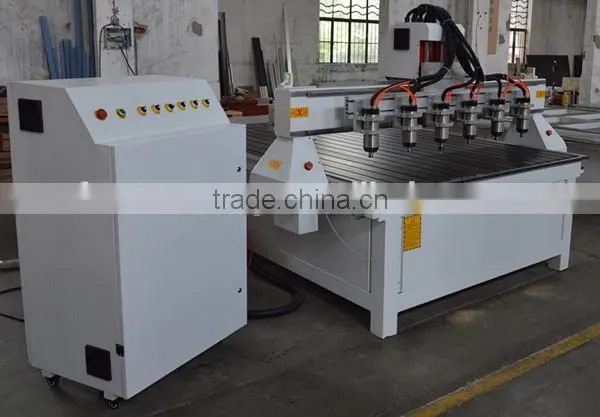

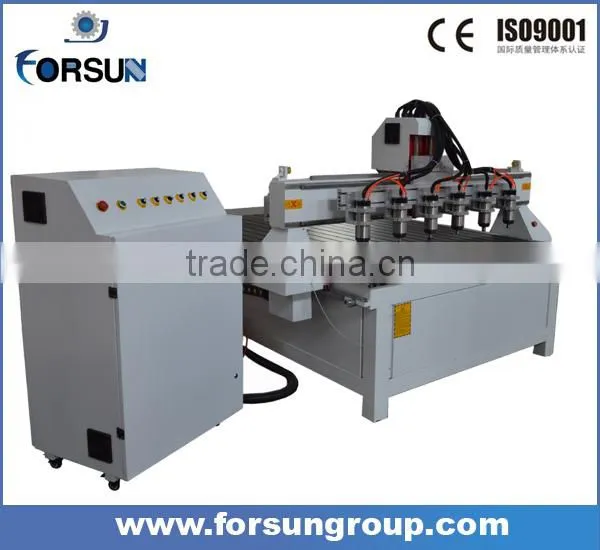

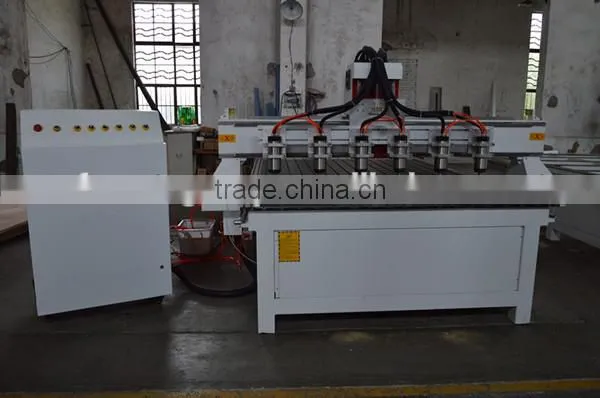

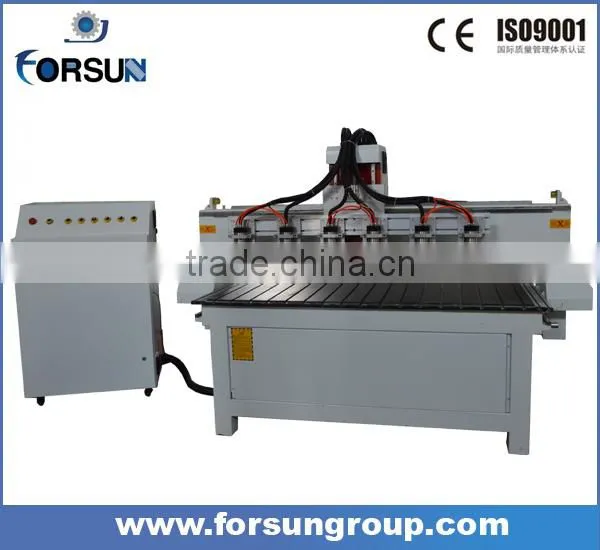

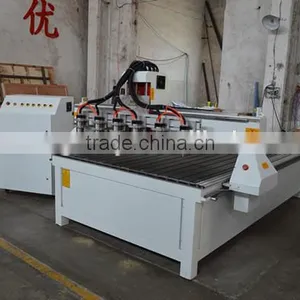

1.Main introduction of woodworking cnc router
1)6mm thickness heavy duty steel tube for machine’s body, and 8 thickness for the gantry,
the machine structure is strong and stable.
2)6 sets spindles with 6 sets inverters, every inverter has a switch, can flexibly choose the
spindles work separately or totally, verysuitable for mass processing work, can increase
the working efficiency.
3) Two big pneumatic cylinder provide more power to protect the Z axis because of the heavy
spindle.
2. Technical Parameters of woodworking cnc router
NO. |
Items |
|
Parameters |
|||
1 |
Working area(X Y Z Axis) |
1300*2500*200mm |
||||
2 |
Table Type |
T-Slot Extrusion PVC |
||||
3 |
Working Accuracy |
±0.03/300mm |
||||
|
Repositioning Accuracy |
±0.02/300mm |
||||
4 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
||||
5 |
MAX Travel ling Speed |
32000mm/min |
||||
|
MAX Working Speed |
15000mm/min |
||||
6 |
Spindle Power |
2.2 KW water cooling spindle |
||||
|
Spindle Speed |
0-24000r/min |
||||
7 |
Drive and Motor |
Step driver and motor |
||||
8 |
Working Voltage |
AC220V/60Hz |
||||
9 |
Operating System |
DSP |
||||
10 |
Net Weight/Gross Weight |
1060 KG/1180 KG |
||||
11 |
Packing size |
3170*1920*1850mm |
||||
3.Top Quality Components of woodworking cnc router
We use top quality components for the machine, such as CS water cooling spindle,
Fuling Inverter, Yako Driver, Hiwin linear and so on, to keep the machine in best
condition even after working for many years.
1)Imported high-precision ball screw, which moving smoothly, to ensure the machine’s
high precision.
2)Well-known , strong cutting ability, low noise, to ensure the machine working for long time.
3)High-performance drive motor to ensure the machine’s high speed and accuracy.
4)Perfect design, top quality accessories, to minimize the machine’s failure rate.
5)Breakpoint specific memory to keep the carving status when power off, processing
time forecast and other functions in case of the accidental power outages.

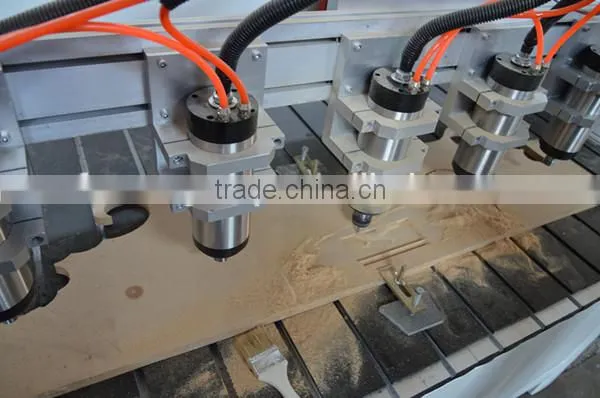

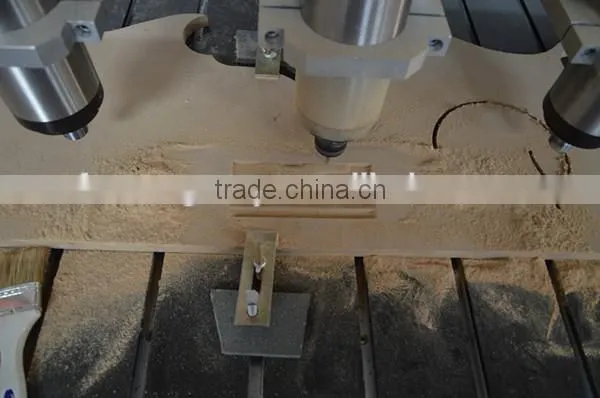

Spindles on the run
Working Table
Stepper motor:

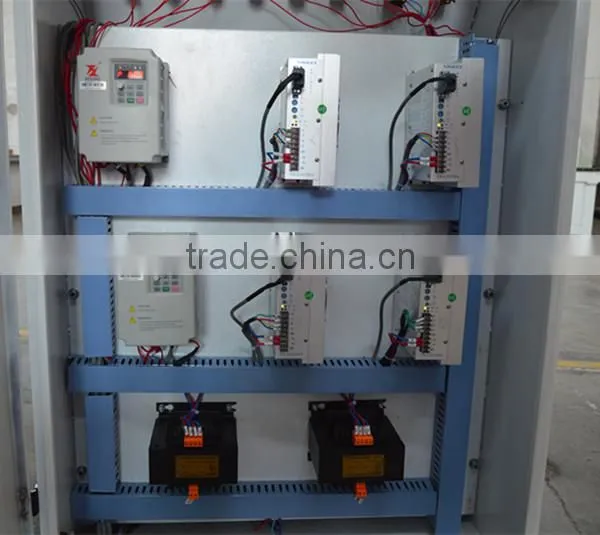

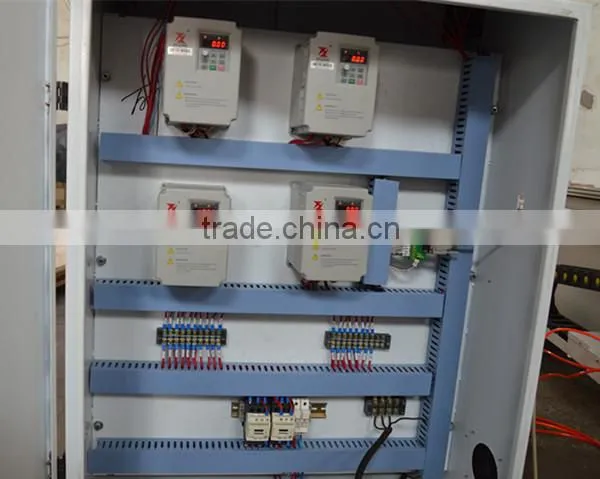

Fuling Inverters & drivers
DSP contol system
4. Application of our woodworking cnc router
1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.
Working Samples
Waterproof inside packing, plywood outside packing.
Services of our woodworking cnc router
1. 18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by emails, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers'
place if customer agrees to air ticket, food and hotel.
Our Factory:
Our Certificate:
Our Customers visit:
Q1:How long is the delivery time?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific
requirements, it would be 15 to 30 days.
Q2: What mode of payment?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this machine during warranty period,
what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just let us know,we will
give you solutions in 30 minutes.
