H20 /H16 Formwork Beam Used in Construction
US$ 6.2 - 6.8
MOQ: 4200 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yelu
Model Number:
Construction LVL beam
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Formwork Beam H20US$ 6.2 - 6.8MOQ: 4200 Meters -
Formwork H20 BEAMS FOR MID - EST MARKETUS$ 6.2 - 6.8MOQ: 4200 Meters
-
H20 Beams, Used H20 Formwork Beam, Used H20 Formwork GirderUS$ 6.7 - 7MOQ: 1800 Meters
-
H20 Wooden Beam for ConstructionUS$ 6.7 - 7MOQ: 1800 Meters
-
High Quality Formwork H20 Timber Beam H20 BeamUS$ 6.7 - 7MOQ: 1800 Meters
Place of Origin
Shandong, China
Brand Name
Yelu
Model Number
Construction LVL beam
Grade
First-Class
Main Material
Pine
Formaldehyde Emission Standards
E2
Plywood Type
Veneer Boards
Veneer Board Surface Finishing
Double-Sided Decoration
Veneer Board Surface Material
Other, Formwork beam h20
Formwork beam H20 range
Description:

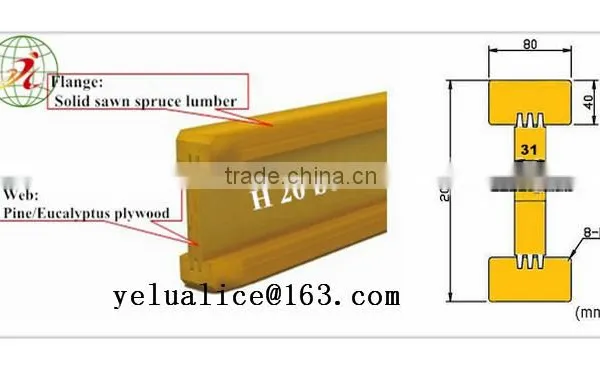

1).Flange: Solid sawn spruce lumber, 80x40mm
2).Web: poplar Spruce 3-ply rediate pine plywood (pine is imported from New Zealand.)
3).Thickness of Web: 27mm/ (+/ 1mm) , or as requested.
4).Height : 200mm
5).Glue : Phenolic WBP(can be boiled for 72 hours)
6).Painting : Yellow Waterproof or as requested.
7).Length : 1.8m,2m,3m, up to 9.6m, or as requested.
Specification:

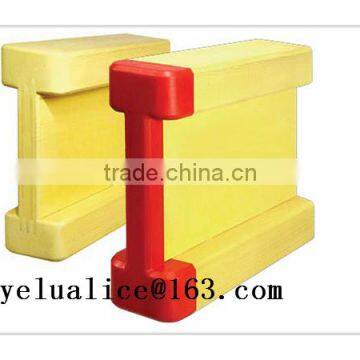

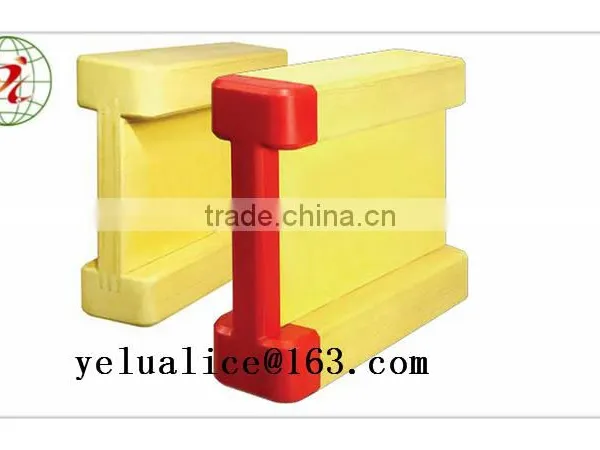

- Protection cap possible up to 9m-over 9 m only cut straight
- Rounding with sealing possible up to 9m-over 9m only cut straight
- Labor force Vk=23.9KN
- Contact resistance Rb,k=47.8KN
- Bending moment Mk = 10.9 KNm
- Rigidity I Ei=450 KNm2
- Weight: 4.8kg/m
H20 Beams:

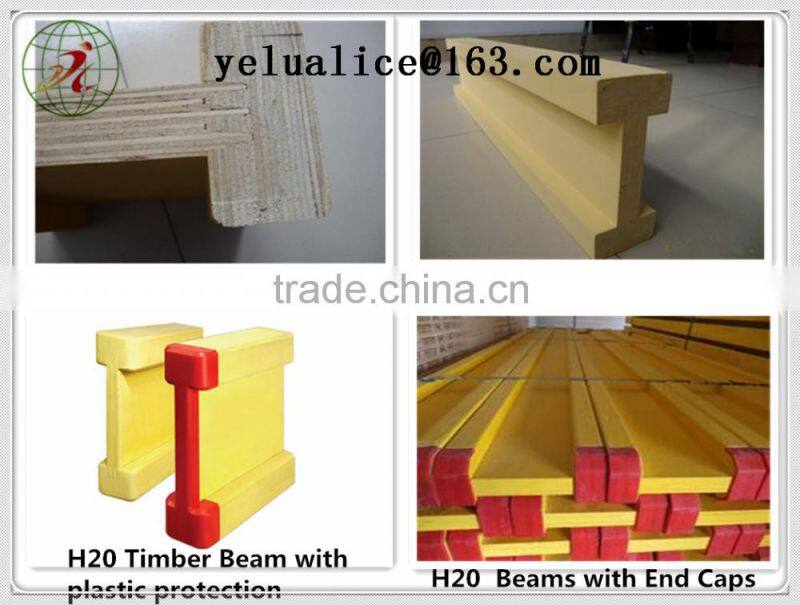

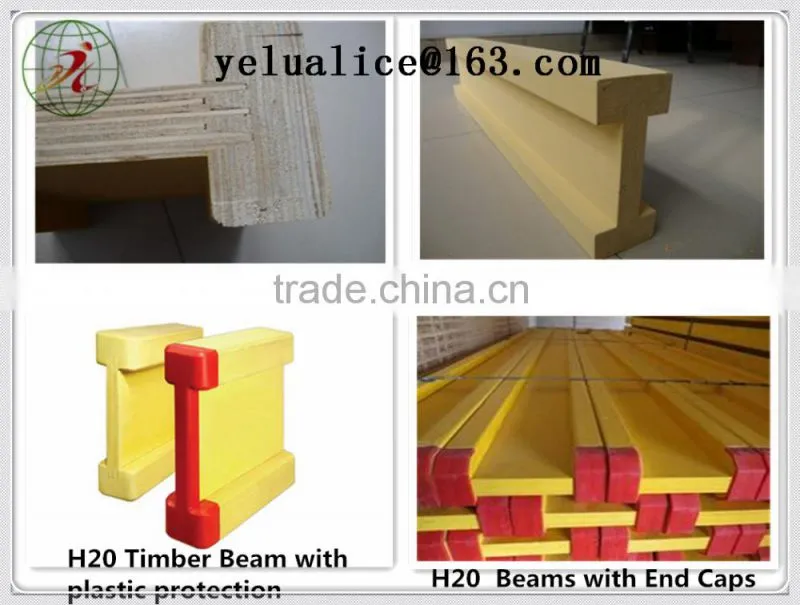

H20 Beam timber(Details show) :

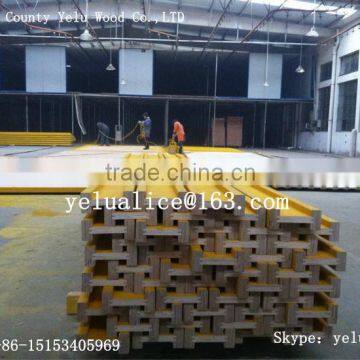

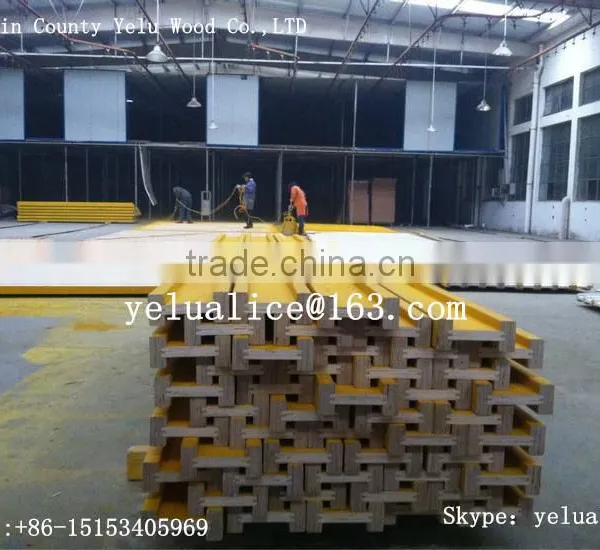

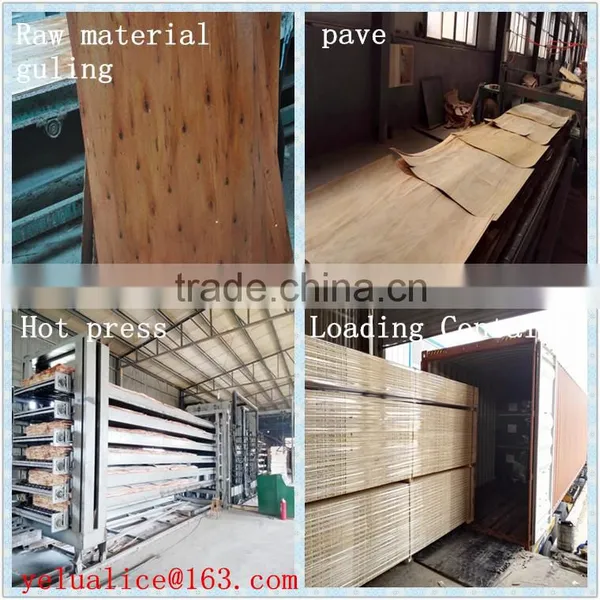

H20 Beam timber(Production process) :
H20 Beam timber(Application) :
Is used for concrete formwork construction.
H20 timber beam widely applied in slab formwork system,wall formwork system, column formwork system,
timber structures, and other temporary bearing structures.
Caution:
- Wooden formwork beams are only to be used in an upright position.
- In addition, they are to be secured against tipping according to static requirements
- Every item must be inspected by the installation firm and may only be used if in perfect condition.
- Damaged or formwork girders weakened by decay are not be used.
Adavantage
1.Quality Assurance
All products were certified by sgs.
The company follows 5S management system.
2. Strong team
Professional production equipment and testing equipment.More than 50 R & Dengineers and
Professional production equipment and testing equipment.More than 50 R & Dengineers and
over 30 professional quality management personnel,, more than 300 production line operator.
3.Rich experienve
3.Rich experienve
15 years of professional experience.
4. Quality Service
Professional sincerity; Sincerely service.
5. Quality Commitment
Full refund or replacement for quality faulty.
Contact us
Alice liu (Ms for export)
-----------------------
Ning jin county yelu wood Co.,Ltd
Skype: yelualice
Tel: (0086) 15153405969
Mobile: (0086) 18505347209
H20 /H16 formwork beam used in construction
