SCAFFOLD LAMINATED VENEER BOARD /SCAFFOLD BOARD
US$ 6.2 - 6.8
MOQ: 48 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yelu
Model Number:
Construction LVL beam
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Formwork H20 Timber Beam/H20 Wood BeamUS$ 6.8 - 7.1MOQ: 400 Meters -
SGS H20 Beams for Dubai MarketUS$ 6.8 - 7.1MOQ: 400 Meters
-
YELU H20 Timber Wood Beam Construction MarterialUS$ 6.8 - 7.1MOQ: 400 Meters
-
SGS H20 Pine LVL BeamUS$ 6.8 - 7.1MOQ: 400 Meters
-
Sales Promotion H20 /H16 Formwork Beam Used in ConstructionUS$ 6.8 - 7.1MOQ: 500 Meters
Place of Origin
Shandong, China
Brand Name
Yelu
Model Number
Construction LVL beam
Grade
First-Class
Main Material
Pine
Formaldehyde Emission Standards
E2
Plywood Type
Veneer Boards
Veneer Board Surface Finishing
Double-Sided Decoration
Veneer Board Surface Material
Other, SCAFFOLD LAMINATED VENEER BOARD
SCAFFOLD LAMINATED VENEER BOARD /SCAFFOLD BOARD
Formwork beam H20 range
Description:
1).Flange: Solid sawn spruce lumber, 80x40mm
2).Web: poplar Spruce 3-ply rediate pine plywood (pine is imported from New Zealand.)
3).Thickness of Web: 27mm/ (+/ 1mm) , or as requested.
4).Height : 200mm
5).Glue : Phenolic WBP(can be boiled for 72 hours)
6).Painting : Yellow Waterproof or as requested.
7).Length : 1.8m,2m,3m, up to 9.6m, or as requested.
Specification:
- Protection cap possible up to 9m-over 9 m only cut straight
- Rounding with sealing possible up to 9m-over 9m only cut straight
- Labor force Vk=23.9KN
- Contact resistance Rb,k=47.8KN
- Bending moment Mk = 10.9 KNm
- Rigidity I Ei=450 KNm2
- Weight: 4.8kg/m
H20 Beams:
H20 Beam timber(Details show) :
H20 Timber Beam with
plastic protection H20 Timber Beams with End Caps

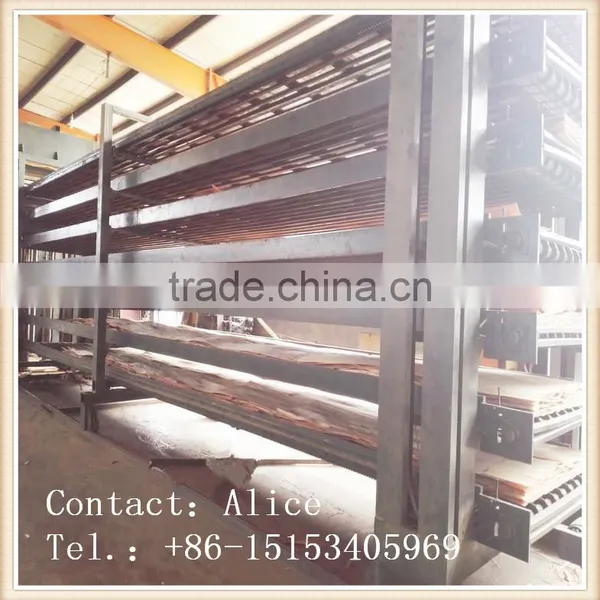

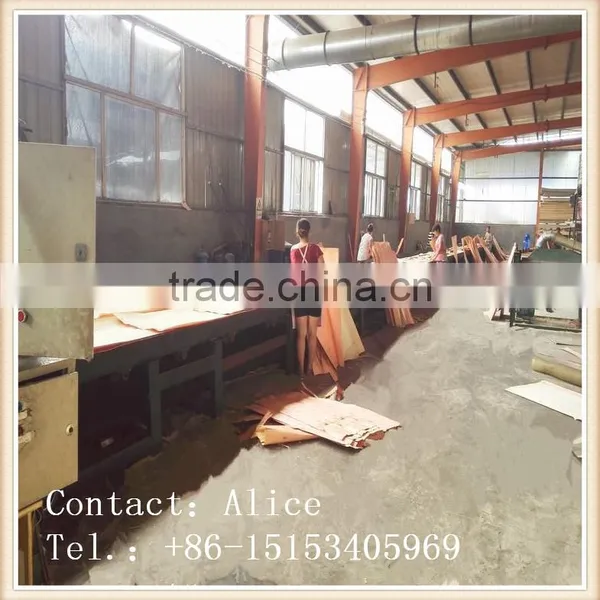

H20 Beam timber(Production process) :

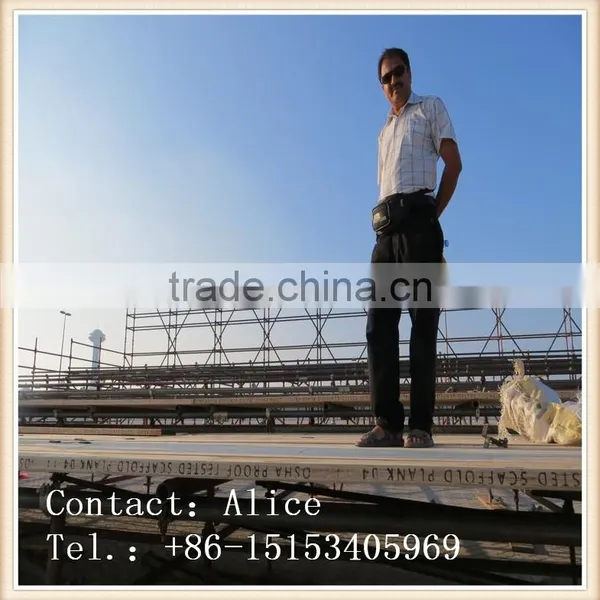

H20 Beam timber(Application) :
Is used for concrete formwork construction.
H20 timber beam widely applied in slab formwork system,wall formwork system, column formwork system,
timber structures, and other temporary bearing structures.
Caution:
- Wooden formwork beams are only to be used in an upright position.
- In addition, they are to be secured against tipping according to static requirements
- Every item must be inspected by the installation firm and may only be used if in perfect condition.
- Damaged or formwork girders weakened by decay are not be used.
Adavantage
1.Quality Assurance
All products were certified by sgs.
The company follows 5S management system.
2. Strong team
Professional production equipment and testing equipment.More than 50 R & Dengineers and
Professional production equipment and testing equipment.More than 50 R & Dengineers and
over 30 professional quality management personnel,, more than 300 production line operator.
3.Rich experienve
3.Rich experienve
15 years of professional experience.
4. Quality Service
Professional sincerity; Sincerely service.
5. Quality Commitment
Full refund or replacement for quality faulty.
