Specifications
10mm drill machine:1. CE certified
2. 1.5 warranty
3. Best service

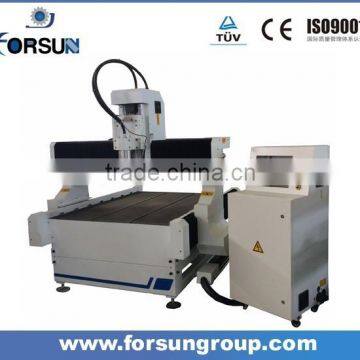

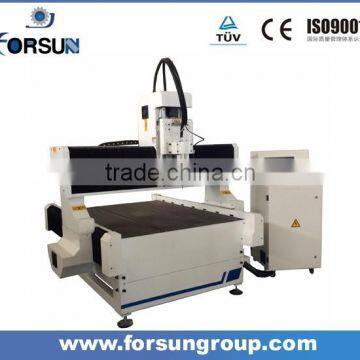

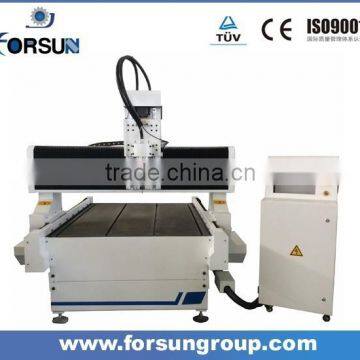

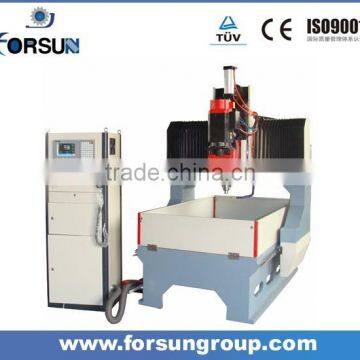

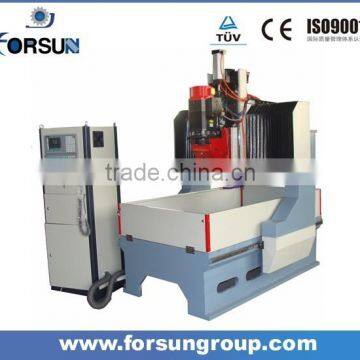

metal drilling machine cnc cutting machine 10mm drill machine
Processing material:
Engraving and drilling processing for soft metal sheets such as copper and aluminum.
Advantage :
Whole Cast Steel heavy duty Structure,fast speed. working stable.
Technical parameters:
NO. |
Items |
|
Parameters |
1 |
Working area |
X Y Z Axis |
1000*1200*300mm |
2 |
Table Type |
|
Cast steel table |
3 |
Accuracy |
Working Accuracy |
±0.03/300mm |
Repositioning Accuracy |
±0.03/300mm |
||
4 |
Drive system |
X,Y with Rack and pinion Z with Ball screw 2510 |
|
5 |
Speed |
MAX Traveling Speed |
32000mm/min |
MAX Working Speed |
15000mm/min |
||
6 |
Spindle |
Spindle Power |
BT40 Servo drilling spindle |
Spindle Speed |
0-24000r/min |
||
7 |
Drive and Motor |
|
YASKSWA Servo |
8 |
Working Voltage |
|
AC 380V/50Hz |
9 |
Operating System |
|
Syntec controller system |
10 |
Net/Gross Weight |
|
3000KG/3200KG |
11 |
Packing size |
|
2070*2070*2100mm |
Configuration:
1) Working size:1000*1200*300mm
2) Whole Cast Steel heavy duty Structure
3) BT40 servo drilling spindle
4) 5.5KW Delta inverter
5) Gantry moved machine
6) HWIN Linear Guide 30mm
7) YASKAWA servo from Japan
8) Auto lubrication
9) Oil mist coolings system
10) TBI Ball screw 2510
11) NSK bearing from JAPAN
Other machines parts pictures:

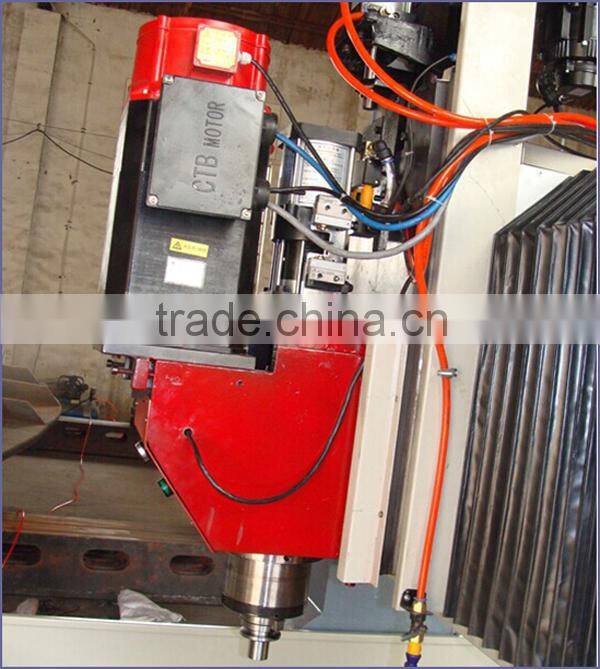

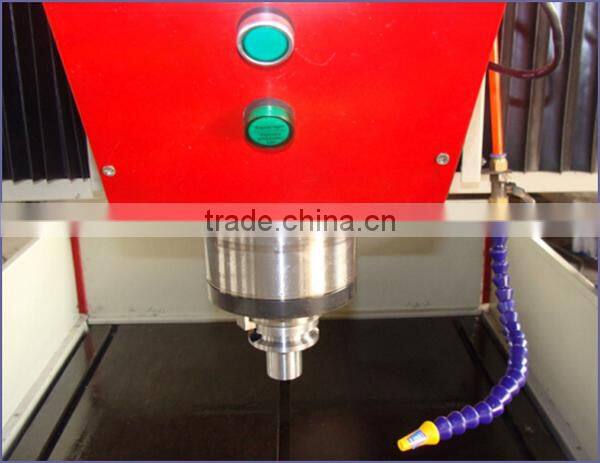

BT40 Servo drilling spindle
Spindle structure

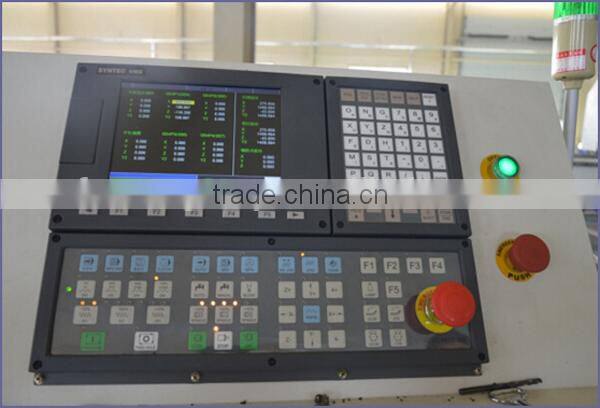

Syntec controller system:used for cnc router for many years

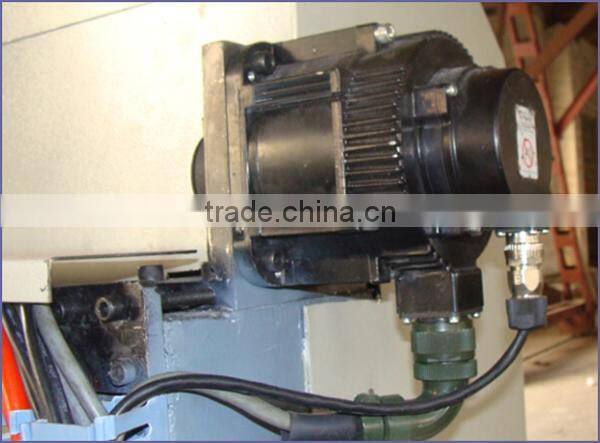

YASKAWA Servo motor

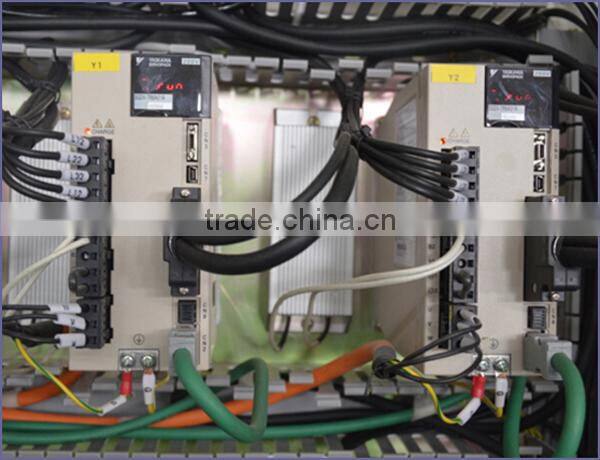

YASKAWA Servo driver
Taiwan Delta inverter
working Samples:
Metal drilling

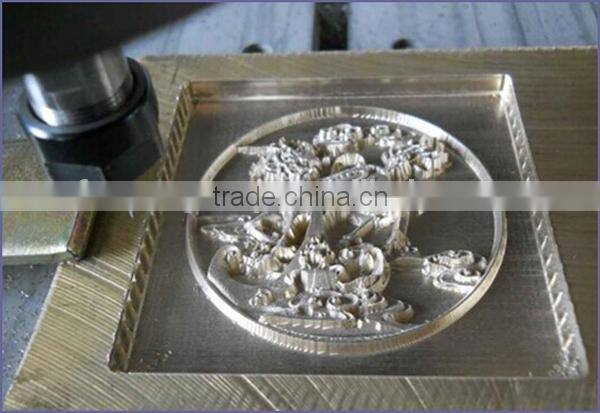

Metal engraving
Our factory:
Our certified:
Delivery:
Within 20 days after the deposit
Packing:
Wooden case or as your requirment
Payment:
T/T,50% deposit and the balance 50% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
5.warranty:1.5 years
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
