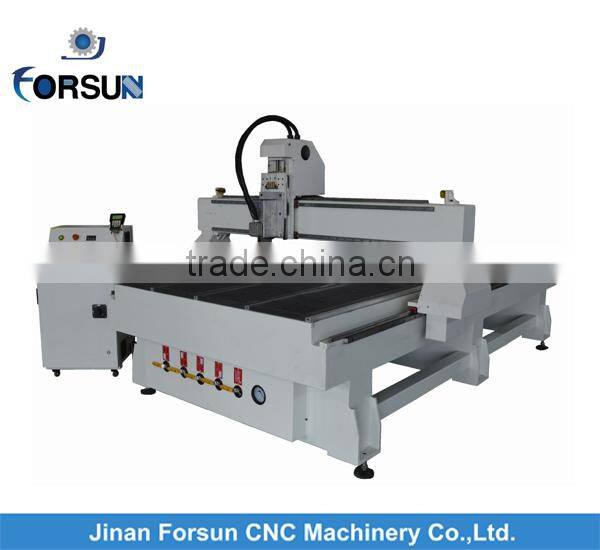

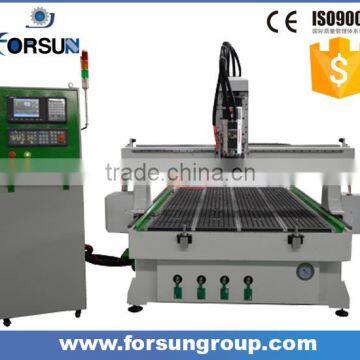

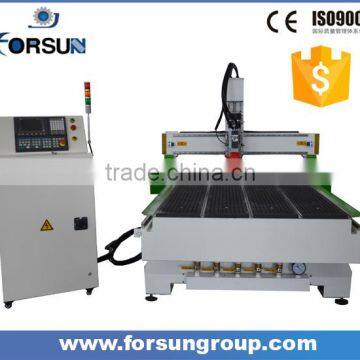

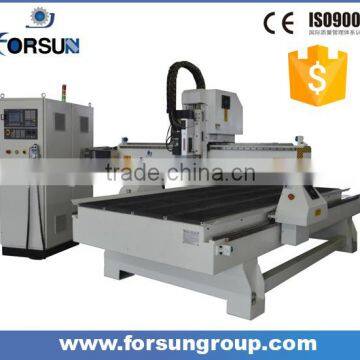

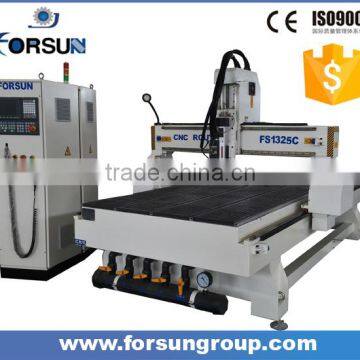

Trade Assurance high precision CNC router machine /woodworking cnc router machine

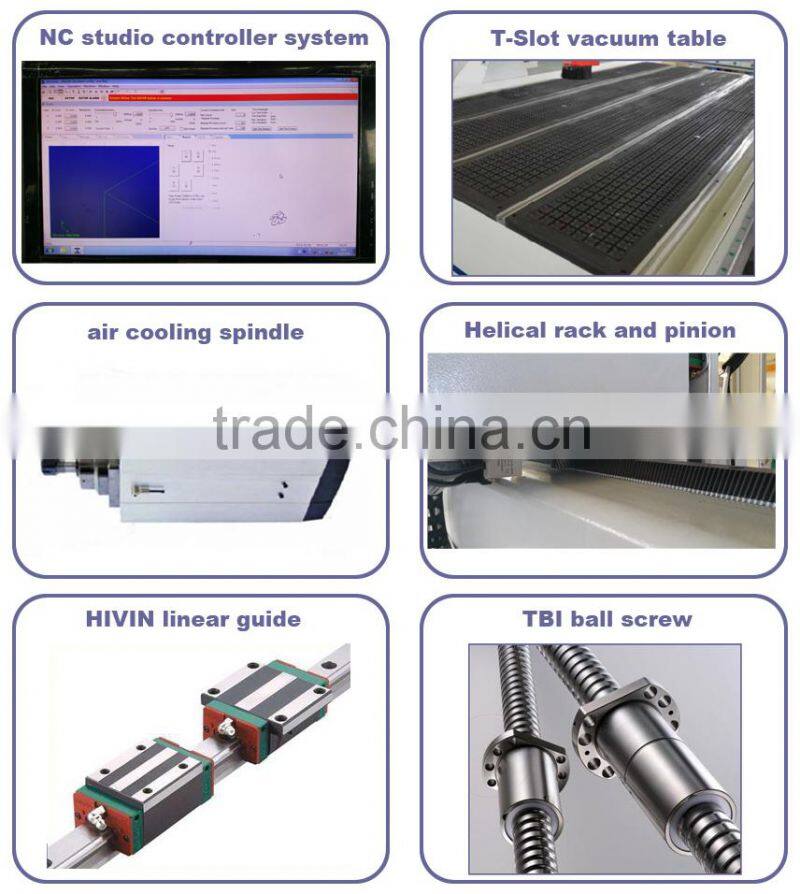

Configuration of cnc router machine:
1) Working area: 1300mm*2500mm*200mm (X,Y,Z axis)
2) Solid steel frame construction thicken to 10 mm
3) 3.0 kw water cooling spindle or air cooling spindlle
4) Stepping drives and motor
5) T-Slot PVC table with Aluminum sheet
6) HIWIN Linear Guide from Taiwan
7) NC Studio controller (option : DSP)
8) X and Y axis: Rack and Pinion, Z axis: ball Screw
9) Automatic Tool Calibration
10) 3PH 380V 50HZ
11) Plywood case package
Option items of cnc router machine
1.AC Servo motors
2.T-Slot vacuum table
3.DSP Control system or Mach3 control system
4.Dust collector system
5.Oil mist cooling system (We suggest if processing on hard material)
Application of 4 axis wood cnc router machine
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, ABS
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum
Technical parameters of cnc router machine
NO | Description | Parameter |
1 | X,Y,Z,Working Area | 2000x3000x200mm |
2 | Table Size | 2000×3000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.03mm/300mm |
5 | Frame | Cast Steel struture |
6 | Max. Power Consumption | (Without Spindle) 2.0Kw |
7 | Max. Rapid Travel Rate | 32000mm/min |
8 | Max. Working Speed | 15000mm/min |
9 | Spindle Power | 4.5KW HSD Air cooling spindle |
10 | Spindle Speed | 0-18000RPM |
11 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
12 | Command Language | G Code |
13 | Computer Interface | USB / Ethernet |
14 | Collet | ER25 |
15 | X,Y Resolution | <0.03mm |
16 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
17 | Running Environment Temperature | 0 - 45 Centigrade |
18 | Relative Humidity | 30% - 75% |
19 | Packing Size | 3650X2300X2050mm |
20 | N.W. | 1700KG |
Working samples of cnc router machine
Packaging & Shipping
The package and payment of machine cnc/ 4 axis cnc router machine
Delivery:
Within 20 days after the deposit
Packing:
Wooden case or as your requirment
Payment:
T/T,30% deposit and the balance 70% should be paid before shipment
Our Services
The service of the cnc router/cnc wood router
1.18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical support by email,fax or calling.
3. free training in our factory.Also we can dispatch our technician to customers place if customer agree to air ticket,food and hotel.

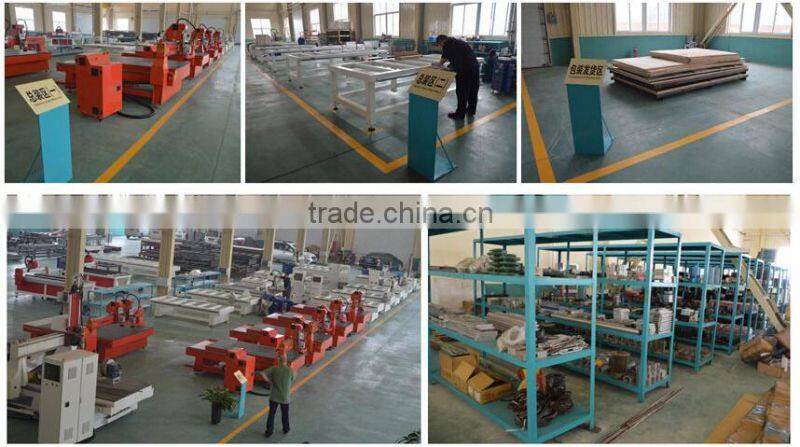

Our wood cnc router machine factory
Customers visit our cnc router machine factory
Our cnc router machine certification
FAQ
The customers who like our cnc router machine often ask?
Q1.how to get the most suitable cnc router and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of cnc router.
Yes,we have
Q3.If we do not know how to use the cnc router,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal
Q4.How about your cnc router after-sales service?
we offer you 24 hours service phone,skype or MSN
Q5.How about your cnc router guarantee period?one year and during the time,if you have any questions ,we will solve it for free.
Contact with me:
Email:sales7(@)
Whatsapp/ Viber:0086-13075365628
Skype: forsun.sales7
Tel:0086 531 83188997
Website:
Facebook: /forsuncnc
Youtube: /channel/UCaCl11JOcXVn1r0QHto4y4A/videos
If you want to buy ATC CNC Router please click here : ATC CNC Router
If you want to buy laser cutting machine please click here : Laser Cutting Machine
If you want to buy marble engraving machine please click here: Marble Engraving Machine
If you want to buy Plasma cutting machine please click here : Plasma Cutting machine
If you want to buy Foam cutting machine please click here : Foam Cutting machine
If you have any question,please contact with me freely,Welcome you inquiry :))))))
