2016 jinan hot sale small metal engraving cnc router machinery
Machine configuration of small cnc metal engraving machine
1) Working size:1000*1200*300mm, also can produce according to your requests
2) Whole Cast Steel heavy duty Structure
3) SYNTEC controller: easy operate
4) BT40 servo drilling spindle: professional spindle for metal
5) 5.5KW Delta inverter
6) Gantry moved machine
7) Taiwan Linear Guide: high working accuracy
8) Japan servo motors: high speed
9) Auto lubrication
10) Oil mist coolings system
11) Taiwan Ball screw
Option of small cnc metal engraving machine :
1. NC studio controller, Mach3 controller or DSP
2. AC Servo motors
Technical data of small cnc metal engraving machine
NO. | Items |
| Parameters |
1 | Working area | X Y Z Axis | 1000*1200*300mm |
2 | Table Type |
| Cast steel table |
3 | Accuracy | Working Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03/300mm | ||
4 | Drive system | X,Y with Rack and pinion Z with Ball screw 2510 | |
5 | Speed | MAX Traveling Speed | 32000mm/min |
MAX Working Speed | 15000mm/min | ||
6 | Spindle | Spindle Power | BT40 Servo drilling spindle |
Spindle Speed | 0-24000r/min | ||
7 | Drive and Motor |
| YASKSWA Servo |
8 | Working Voltage |
| AC 380V/50Hz |
9 | Net/Gross Weight |
| 2500KG/2700KG |
10 | Packing size |
| 2070*2070*2100mm |

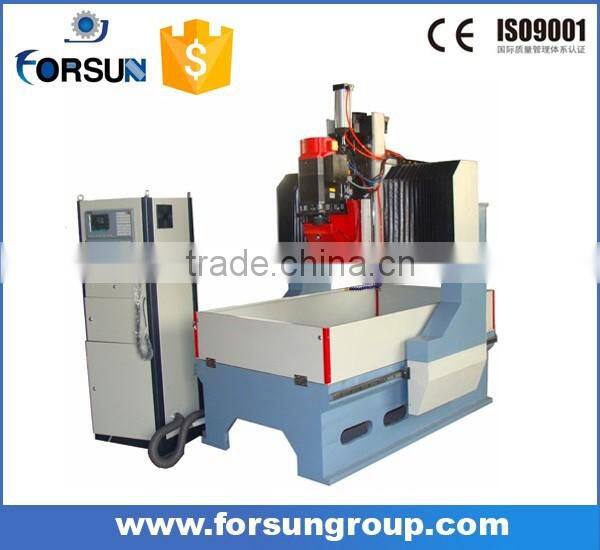

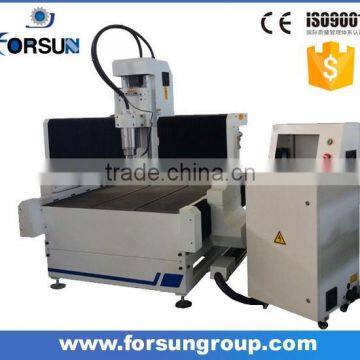

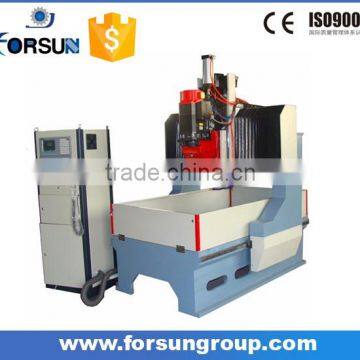

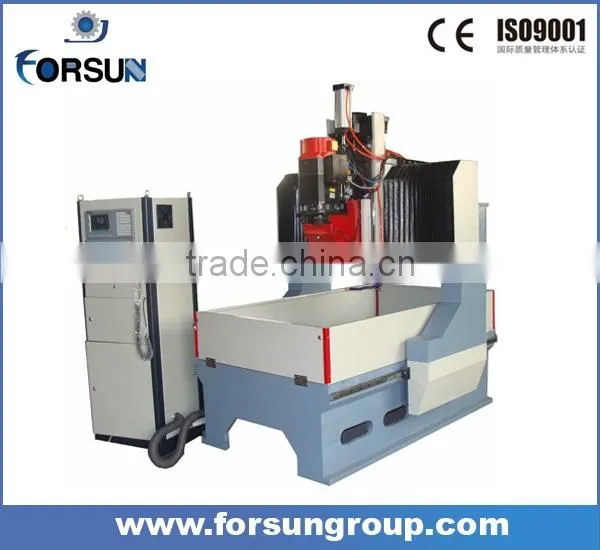

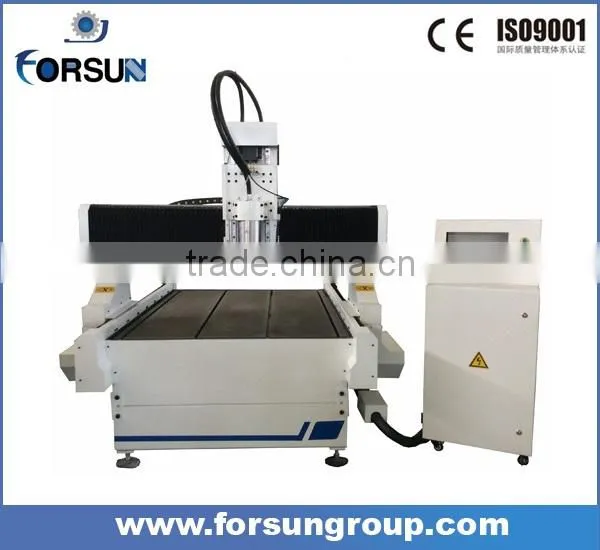

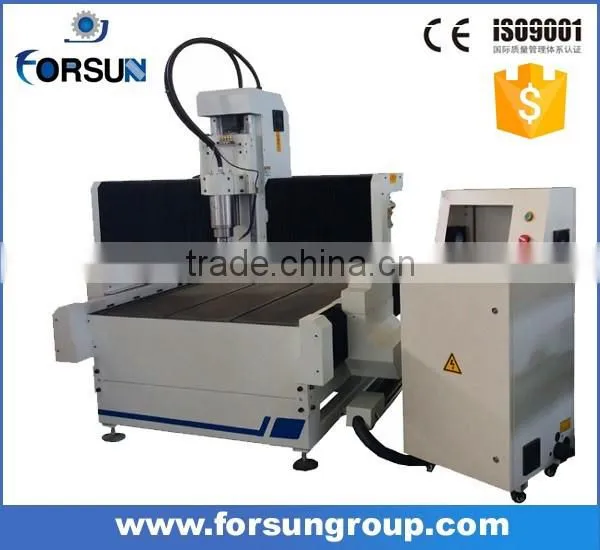

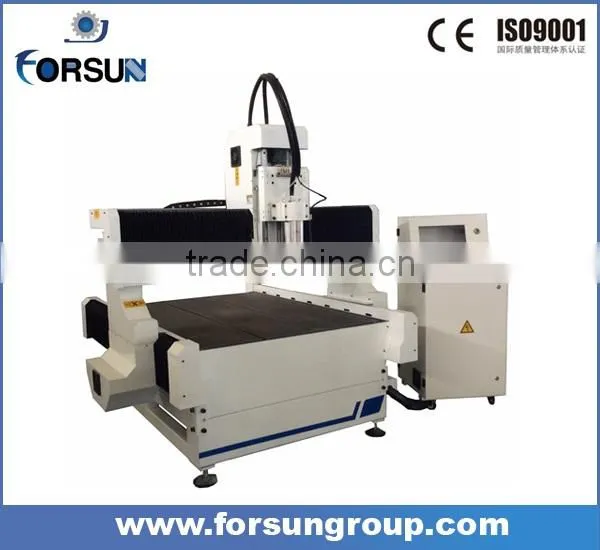

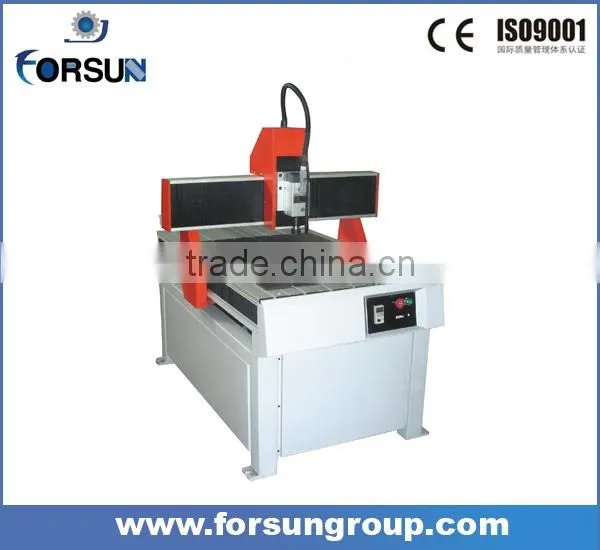

Machine picture

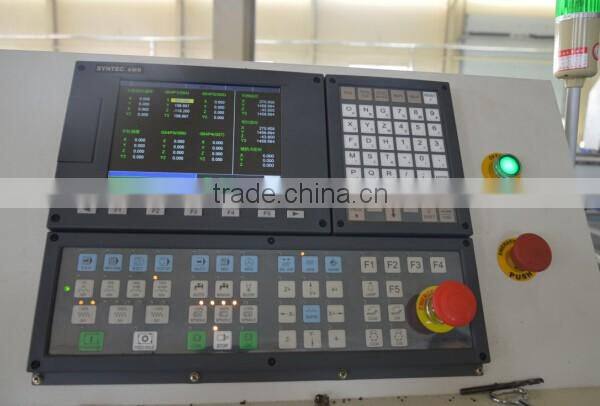

Control system of small metal cnc engraving machine (Option: NC studio control)

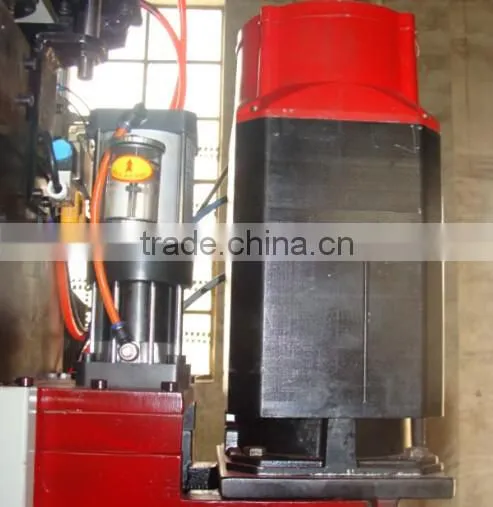

BT40 servo drilling spindle of small metal cnc engraving machine
Whole cast steel heavy duty structure of small metal cnc engraving machine

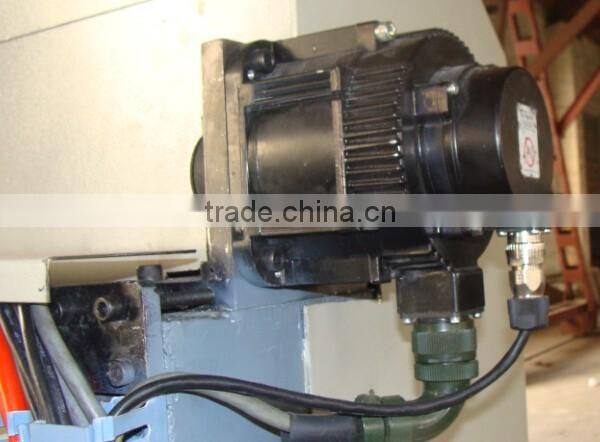

Japan servo motor of small metal cnc engraving machine

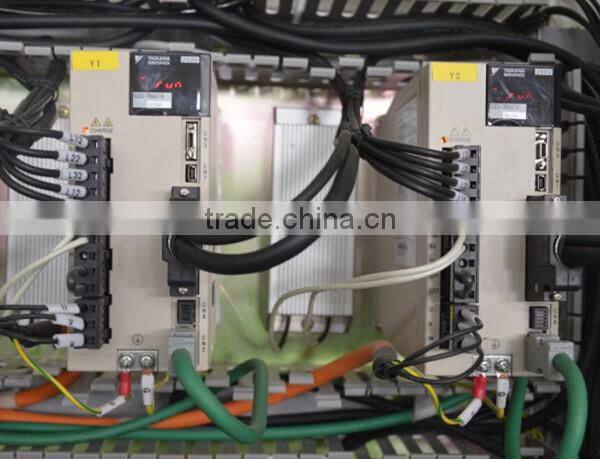

Japan servo drives of small metal engraving machine
Oil mist cooling system for small metal cnc engraving machine
Ball screw install high precision of small metal cnc engraving machine

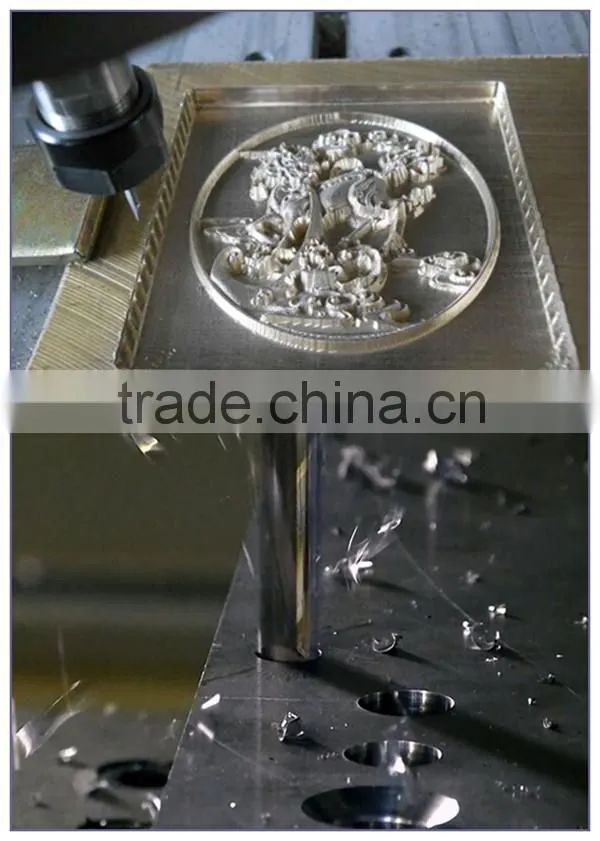

The Sample of small metal cnc engraving machine
Welcome to our factory:
Other main products:
| Auto Unloading ATC CNC | 1325 Syntec ATC CNC | 4 Axis ATC CNC Router |
| | | |
| Double Head CNC Router | Loading/Unloading CNC | SiemensATC CNC Router |
| | | |
Note
Payment: T/T, 30% prepaid and the balance paid before delivery.
Package: plywood case
Port of Loading: Qingdao,China
Delivery Time: within 10 days after received payment.
Remarks
1. Wooden Package
2. Terms: FOB ,C&F,CIF
3. From Qingdao China To_______,
4. Delivery Time: within 15 working days after received payment
5. Payment: T/T,30% prepaid,,the balance paid before the delivery
