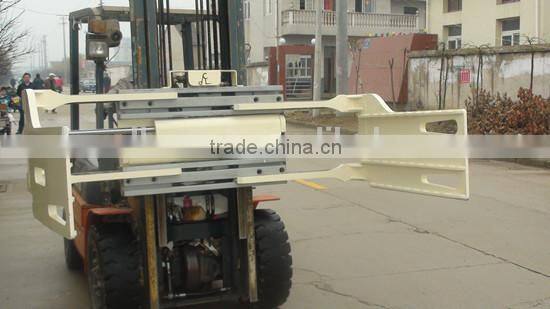

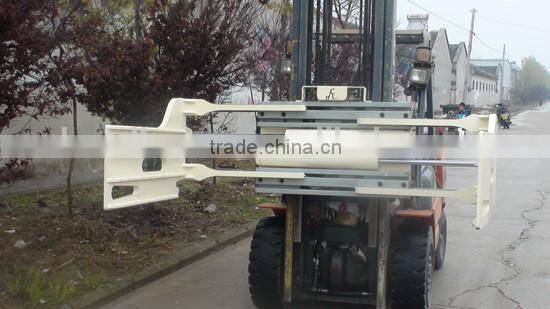

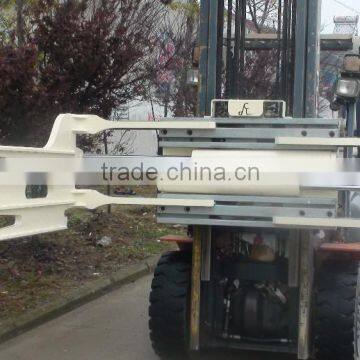

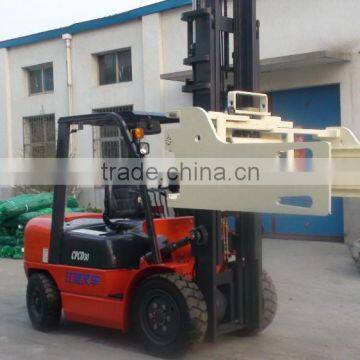

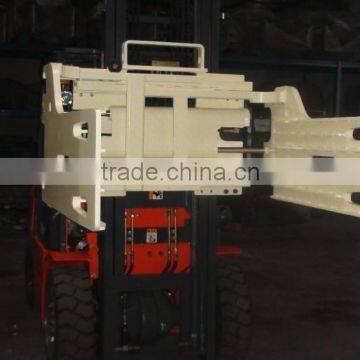

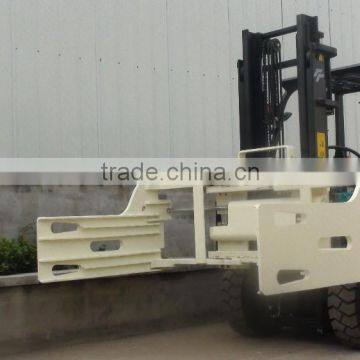

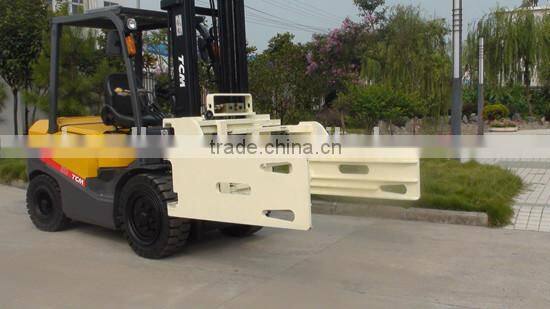

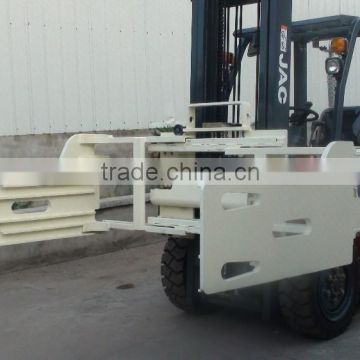

Help CenterForklift Attachment Bale Clamp
Related Products

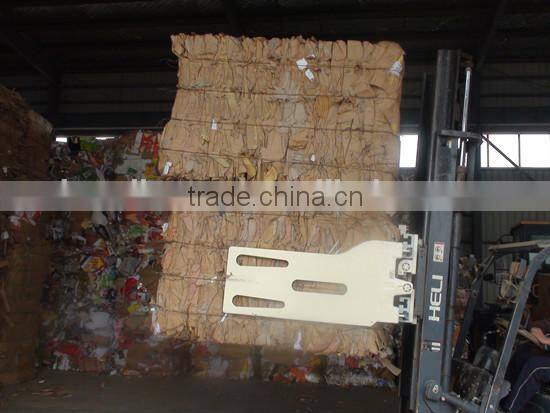

Bale clamps are used to handle different types of bale goods such as rags, waste paper, cotton, wool, hay, industrial scraps etc, can achieve high-effective and cost-efficient handling and stacking without a tray.
Features:
Using C type channel profiles, compact structure, high strength, light weight and easy for maintenance;
The control valves are installed in the top valve protection frame, reduce the effective thickness, and compact structural design ensures excellent driver visibility;
Modular design simplifies the oil circuit, optimizes the arm speed and reduces the consumption;
The inside of the splint is equipped with ribs to increase the friction coefficient, so as to easily clamp soft bales.
Technical Data:
|
Capacity@ Load Center (kg@mm) |
Catalog Order No. |
Mounting Class
|
Opening Range (mm) |

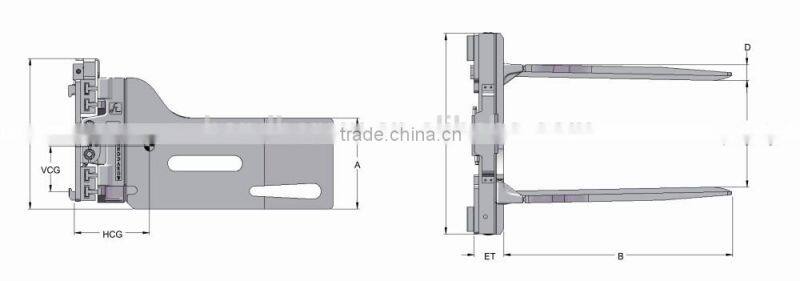

Arm Height A (mm) |
Arm Length B (mm) |
Frame Width C (mm) |
Arm Thickness D (mm) |
Overall Height H (mm) |
Vertical Center of Gravity VCG (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity HCG (mm) |
1900@500 |
RBJ1570 |
II |
430-1570 |
415 |
990 |
1040 |
70 |
650 |
220 |
415 |
130 |
320 |
1900@500 |
RBJ1730 |
II |
510-1730 |
415 |
990 |
1040 |
70 |
650 |
220 |
430 |
130 |
310 |
2700@500 |
RBJ1900A |
II/III |
550-1900 |
460 |
990 |
1015 |
75 |
718 |
255 |
530 |
150 |
315 |
2700@500 |
RBJ1900B |
II/III |
550-1900 |
460 |
1195 |
1015 |
75 |
718 |
255 |
630 |
150 |
390 |
2700@500 |
RBJ2300 |
II/III |
490-2300 |
460 |
1195 |
1600 |
75 |
718 |
255 |
780 |
150 |
245 |
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires 2 more oil circuits for the forklift;
3. Arm thickness D is the spatial size during operation, different from the actual thickness;
4. Customized solution is available, please contact Handbarow sales representative.
