Cheap price Clothing laser cutting machine/co2 laser machine for leather fabric
( It is developed for engraving and cutting most of the nonmetal material, always
dedicating to improve the working efficiency and working accuracy. )
Features of this laser machine
1) High quality Reci Brand Laser Tube provide the strong laser beam and longer service life
2)The Imported Optical Reflectors and Focus lens adopt high intensity metal molybdenum and non sphere focusing lens, making the cutting effect much better.
3) Adopting DSP Digital Screen Technology, making the operation much easier.
4) Off-line Control System which can not only work without computer, but also connect to U flash disk, USB communication.
5) It is well compatible with Autocad, Coreldraw and other image processing software.
Technical Prameters of laser machine
Model |
FSL1290 ( CO2 laser ) |
|
1 |
Working area |
1200mm*900mm |
2 |
Laser power |
60W 80W 100W 130W 150W |
3 |
Engraving speed |
0-64000mm/min |
4 |
Cutting Speed |
0-36000mm/min |
5 |
Preposition accuracy |
±0.1mm |
6 |
Cutting Platform |
Blade table or Honeycomb table |
7 |
Driving system |
Stepper motors |
8 |
Cooling mode |
Circulating-water cooling and protection system |
9 |
Minimum letter size |
Chinese Character: 2.0mm×2.0mm, |
10 |
Power Supply |
AC220V 50HZ |
11 |
Dictate format |
BMP,HPGL,PLT,DST,DXP,AL |
12 |
Compatible Software |
CorelDraw ,AutoCAD transmit directly |
13 |
Operating Temperature |
5°C-40°C |
14 |
N.W/G.W |
300kg/350kg |
15 |
Packing dimension |
1960*1580*1360mm |

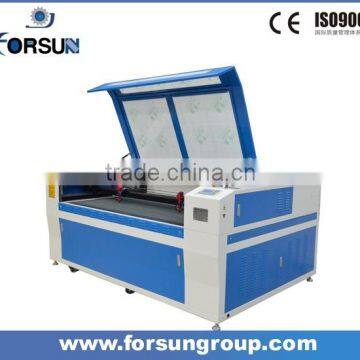

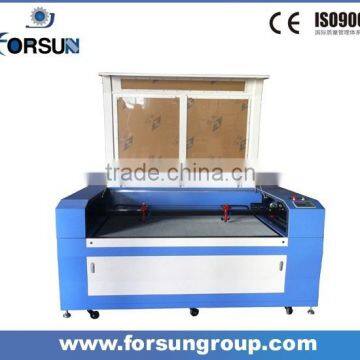

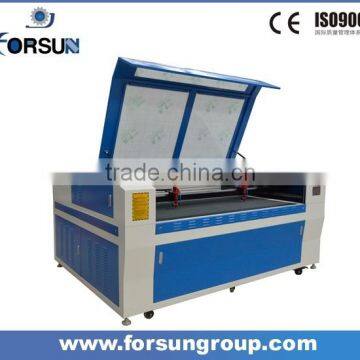

laser machine pictures' show:
Application of laser machine
Materials |
Cut |
Engrave |
Acrylic/Plexiglas/Perspex |
YES |
YES |
Organic board/Matte board/Double color plate |
YES |
YES |
Wood/Bamboo/Veneer/MDF |
YES |
YES |
Leather/Pig leather/Cow Leather/Sheep leather |
YES |
YES |
Fabric/Cloth/Textile |
YES |
YES |
Wool Felt |
YES |
YES |
Paper/Cardboard/Chipboard press board |
YES |
YES |
Plastic ABS/PVC/rubber/plastic |
YES |
YES |
Ceramic/Tile/Marble/Stone/Granite/Tombstone |
NO |
YES |
Fiber glass crystal/Glass |
NO |
YES |
Others non-metal materials |
|
YES |
Samples for our laser machine
Related profucts:

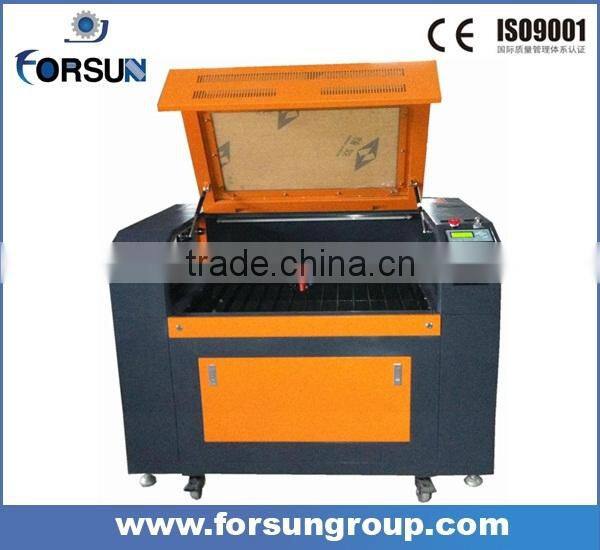

1) Laser engraving and machines:
2) CNC router machines:
Our Certificate:
Our Customers visit:
Q1:How long is the delivery time for laser machine?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific
requirements, it would be 15 to 30 days.
Q2: What mode of payment for this laser machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this machine during warranty period,
what should i do?
We will supply free parts in machine warranty period if machine have some problem.
While we also supply free after-service forever,so any doubts,just let us know,we will
give you solutions in 30 minutes.
