Cheap price sheet metal fiber laser cutting machine Price for carbon steel
Characteristics of our metal laser machine:
1.Stability and reliability of light path system and control system
2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours
3.Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and
beautiful cutting edge
4.German high performance reducer,gear and rack;Japanese guide and ball screw.
Applicable Industry and materials of laser cutting machine:
fiber laser cutting machine application:
metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery,
engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator
manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil
machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration
advertising, laser surface treatment of foreign processing services, such as all kinds of machinery
processing industry.
Our fiber laser cutting machine's Application Materials:
Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet
cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic
plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

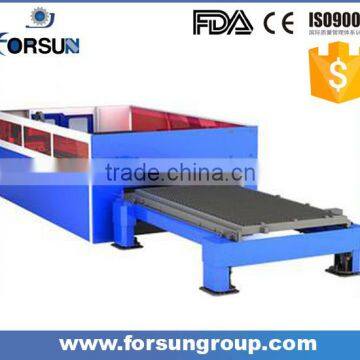

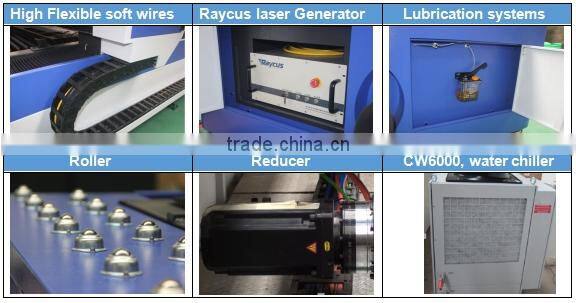

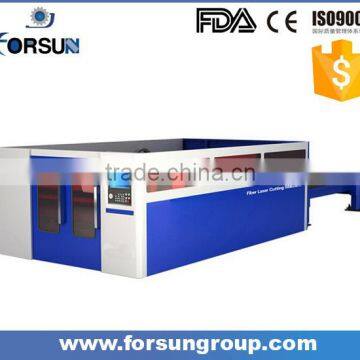

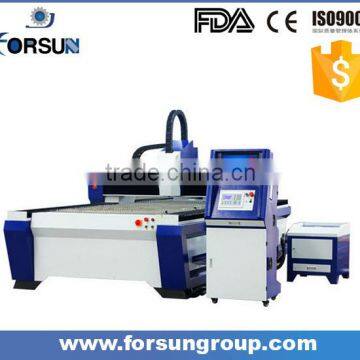

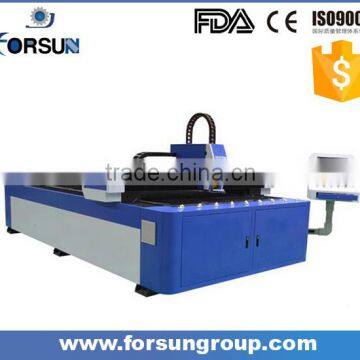

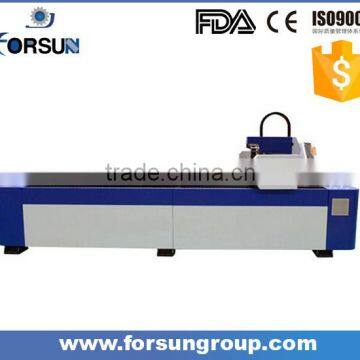

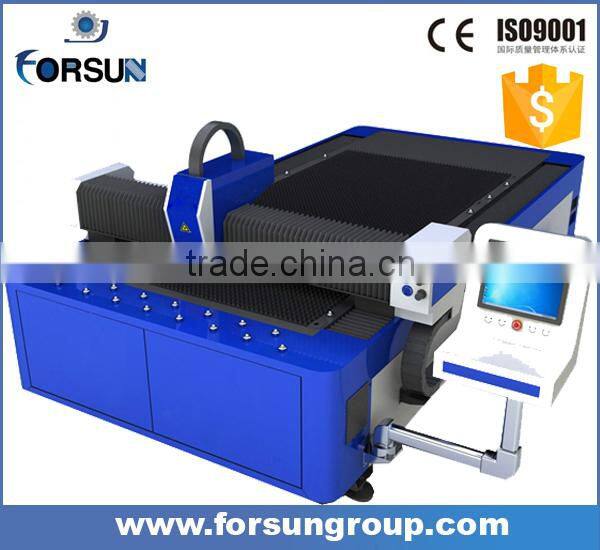

Main machine pictures of fiber laser metal cutting machine:
Parameter of our laser cutting machines:
Machine Model |
3000*1500mm, 4.26*8.2(feet) |
Laser power |
300W/500W |
Fiber laser Generator type |
Famous brand Raycus ( Made in China ) |
Laser wavelength |
1064nm |
Laser Beam quality |
<0.373mrad |
Working Table |
Sawtooth |
Fiber Laser cutting head |
Lasermech ( From U.S. ) |
Focus lens |
Lasermech made in USA |
Working life of fiber module |
More than 100000 hours |
Motors&Drivers |
1500W Fuji servo motor made in Japan |
Reducer |
3 sets from Germany |
Guide Rails |
High accuracy PMI brand from Taiwan |
Transmit system |
Dual Rack & Pinion type |
Rack system |
Herion made in Germany |
Chain system |
Igus made in Germany |
Water Chiller |
TEYU( S&A) brand, CW6000 |
Control system |
Professional laser control system--Cypcut
|
Position type |
Red Dot |
Cutting thickness |
≤3mm(stainless steel) ≤6mm(carbon steel) |
Max. Idle Running Speed |
1400mm/s |
Cutting Speed |
300mm/s |
Position Accuracy |
±0.05mm/m |
Position Speed |
20m/min |
Min. Line Width |
±0.02mm |
Power Consumption |
≤12KW |
Carry weight |
700KG |
Voltage |
380V/50HZ,3PH |
Auxiliary Gas for cutting |
Oxygen, Nitrogen, Air |
Compatible software |
Autocad, Coreldraw, etc |
Graphic format |
Nc |
Working method |
PC control |
Total power protection rating |
IP54 |
Machine weight |
About 4000KG |
Machine size |
4800*2600*1800mm |
Warranty time |
Whole machine for 3 years (fiber module 2 years ) |
Quality control of fiber laser cutting machine :
Quality is our sincerest respect offered to all our customers, and it is the most important factor to maintain long-term business relationships with us.
We always pay more attention to the quality of laser cutting machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter.
In the mechanical assemble process, the laser interferometer, laser collimator, dial indicator and marble plate are used; In the laser assemble process, the laser power meter and optical microscope are adopted.

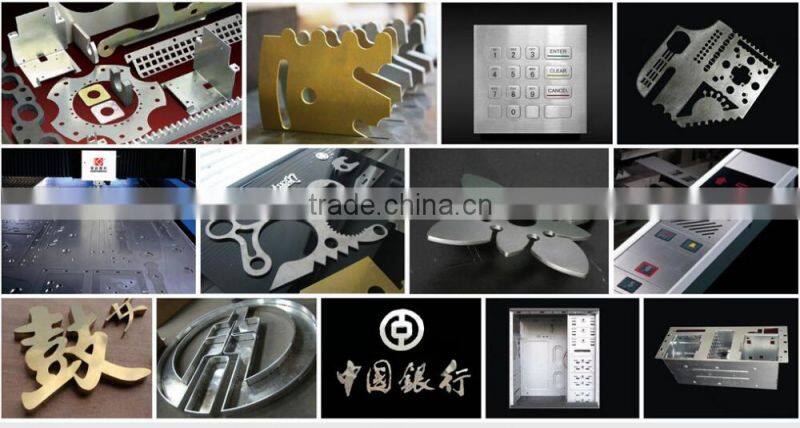

Working samples of laser key cutting machines:
Shipping and Packing of our machine:
Pls add My skype :forsun.sales5 or whatsapp:0086-18766148259, Email: sales5(), and let's talk more details. Website:
Youtube website: /channel/UCaCI11JOcXVn1r0QHto4y4A/videos
Facebook website: /forsuncnc
♥ Send an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
