Home > Electrical & Electronics > Electric Motor > AC Motor > 10kw Generator Motor

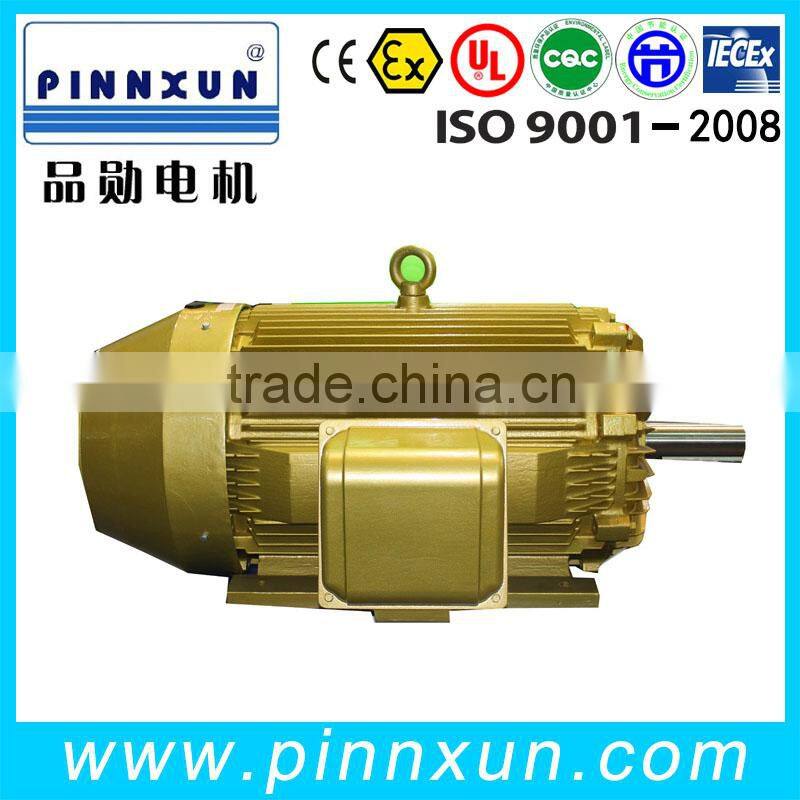

10kw Generator Motor

Name: 10kw Generator Motor
Brand: pinnxun
SKU: 101256947
Availability: InStock

US$ 345 - 7,600 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

pinnxun

Model Number:

YX3 10kw generator motor

Type:

Induction Motor

Contact Supplier Request Quote Chat Now

Shanghai Pinnxun Electric Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name pinnxun

Model Number YX3 10kw generator motor

Type Induction Motor

Frequency 50HZ 10kw generator motor

Output Power 0.12kw-315kw 10kw generator motor

Protect Feature Totally Enclosed

Phase Three-phase

Certification CCC, CE

AC Voltage Other, 380 415 440

Place of Origin Shanghai, China

Efficiency IE 2

Specifications

YX3 400v efficiency 10kw generator motor
certificate:IS09001-2008
power:0.12kw-315kw
pole:2 4 6 8 10
speed:3600-600

Hot sell cheapest YX3 400v efficiency 10kw generator motor

three-phase induction motor

Product: YX3 400v efficiency motor

YX3 400v efficiency motor Feature and usage

YX3 series high efficiency three phase motors is high efficiency energy-saving motor.Efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade'grade 2 efficiency standard,according to IE2/EFF1 efficiency index of IEC standard.Our production advance in domestic and reached advanced level in international.We are on top of the name list that can get the CHINA certification for energy conservation product.

YX3 series three phase electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc. While the mounting dimension and rated output power of YX3 series electric motors are in conformity with IEC standard.

YX3 Series motors are widely used as drive mechanism of various machineries, such as pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc. Its operating conditions are the same as Y2 series three phase electric motors.

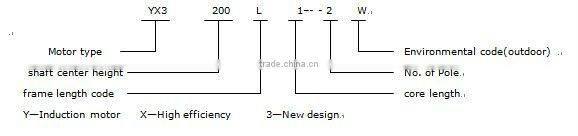

YX3 400v efficiency motor Model Explanation

YX3 400v efficiency motor Motor Performance

Power range:0.12-315KW

Rated Voltage: 380V 400V 440V 690V

Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm

Protection Class: IP55

Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Frequency: 50Hz/60Hz

Insulation Class: F

Temprature rise: B

Working Duty: S1(Continuous)

Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above

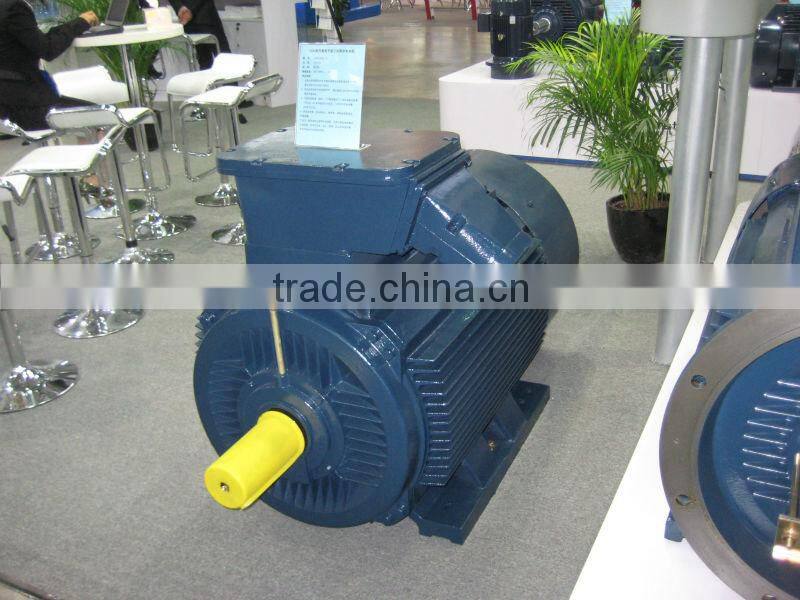

1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11

2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)

YX3 400v efficiency motor Structure Description

YX3 series ac induction motor mounting details:

Schematic diagram
mounting type	B3	B35	B5	V1
mounting Discribtion	frame with feet,end-shield without flange	frame with feet,end-shield with flange	frame without feet,end-shield with flange	frame without feet,end-shield with flange
Suitable frame	H63-355	H63-355	H63-280	H180-355

YX3 series motors are totally enclosed fan cold(TEFC).

bearing type


	Horizontal		vertical
motor frame	DE side	N-DE side	DE side	N-DE side
63	6201-2RZ/Z2	6201-2RZ/Z2	6201-2RZ/Z2	6201-2RZ/Z2
71	6202-2RZ/Z2	6202-2RZ/Z2	6202-2RZ/Z2	6202-2RZ/Z2
80	6204-2RZ/Z2	6204-2RZ/Z2	6204-2RZ/Z2	6204-2RZ/Z2
90	6205-2RZ/Z2	6205-2RZ/Z2	6205-2RZ/Z2	6205-2RZ/Z2
100	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2
112	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2	6206-2RZ/Z2
132	6208-2RZ/Z2	6208-2RZ/Z2	6208-2RZ/Z2	6208-2RZ/Z2
160	6209-2RZ/Z2	6209-2RZ/Z2	6209-2RZ/Z2	6209-2RZ/Z2
180	6211/Z2	6211/Z2	6211/Z2	6211/Z2
200	6312/Z2	6312/Z2	6312/Z2	6312/Z2
225(2P)	6312/Z2	6312/Z2	6312/Z2	6312/Z2
225(4-8P)	6313/Z2	6212/Z2	6313/Z2	6312/Z2
250(2P)	6313/Z2/Z2	6313/Z1	6313/Z2	6313/Z1
250(4-8P)	6314/Z1	6213/Z1	6314/Z1	6313/Z1
280(2P)	6314/Z1	6313/Z1	6314/Z1	6313/Z1
280(4P)	6317/Z1	6313/Z1	6317/Z1	6313/Z1
315(2P)	6317/Z1	6317/Z1	6317/Z1	6317/Z1
315(4-8P)	NU319	6319/Z1	NU319	6319/Z1
355(2P)	6319/Z1	6319/Z1	6319/Z1	6319/Z1
355(4-8P)	NU322	6322/Z1	NU322/Z1	6322/Z1

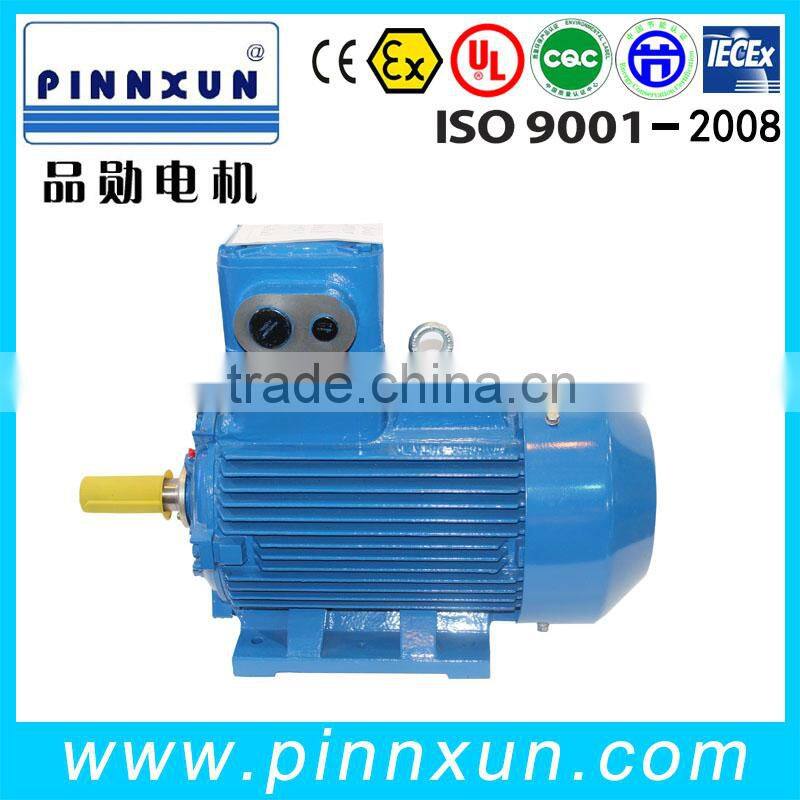

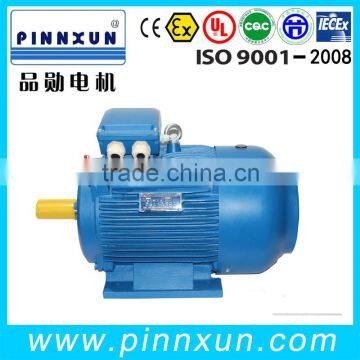

YX3 400v efficiency motor Pictures

3.Certification To Guarantee We are Good In Quality

4.Our Mainly Products(LV and HV Motor for General equipments)

5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)

Ordering Informations

1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.

2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .

3.The catalogue is only for reference,and there may be variations.

6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.

7.Cargo,cantainer,shipment specification to ensure we are more professional.

YX3 400v efficiency motor
