YRKS series high voltage wound rotor motor lifting motor
| product: YRKS tefc motor | |
|
|
|
YRKS tefc motor Feature and usage YRKS series Medium-Size High Voltage 3-Phase Asynchronous Slip Ring/ Wound Rotor motor is suitable for poor surroundings, the site in high required protection and directly application of outdoor. The motors can drive water pump, compressor, transportation machinery and common used machinery. YRKS series motor is design into box-type construction. The frame is light in weight and good in rigid and is made of steel plates by melding. Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler inside motor. The primary cooling medium (air) can complete the heat exchange with secondary cooling medium in cooling pipe (circulation water) through outside surface of pipe in the cooler as well as spring etc. heat transfer conductor
1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11
2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)
| |

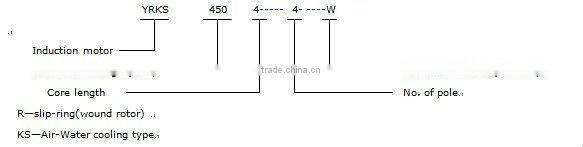

YRKS tefc motor Model Explanation |
|
| |
YRKS tefc motor Motor Performance |
|
|
Power range:160kw-7500kw Frame Size:355-1000mm Rated Voltage: 3KV 6KV 10KV Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm Protection Class: IP44 IP54 IP55 Cooling type;IC81W Ambient Temperature: -15°C~40°C Altitude: not exceed 1000 Meter Rated Frequency: 50Hz/60Hz Insulation Class: F Temprature rise: B Working Duty: S1(Continuous)
3.Certification To Guarantee We are Good In Quality
4.Our Mainly Products(LV and HV Motor for General equipments)

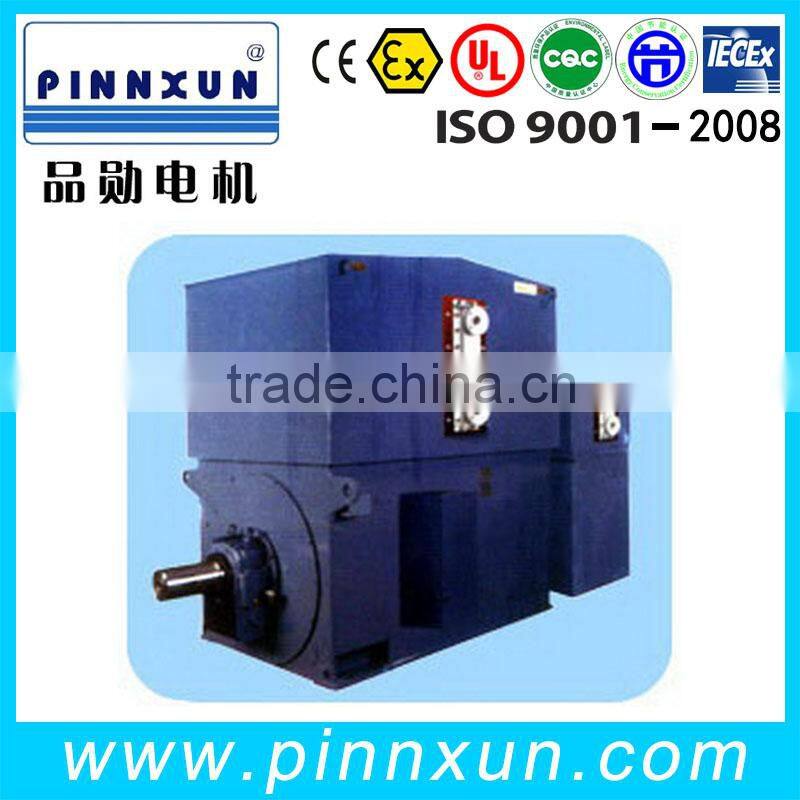

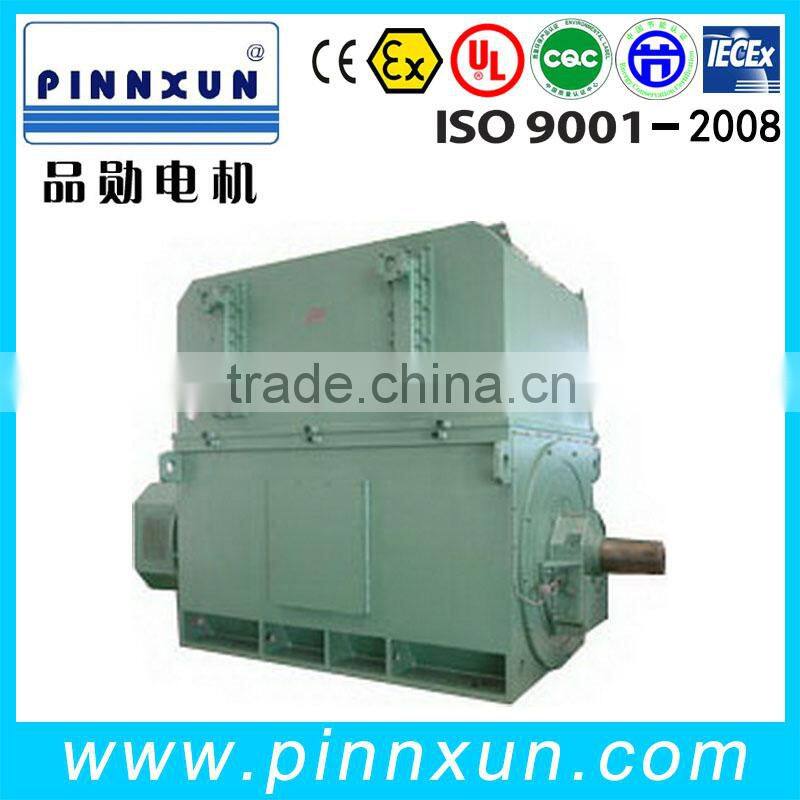

YRKS tefc motor Pictures
| |
Ordering Informations |
|
|
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor. 2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department . 3.The catalogue is only fpr reference,and there may be variations. 4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately. | |
5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)
6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.
7.Cargo,cantainer,shipment specification to ensure we are more professional.
YRKS tefc motor
