Specifications
YB3 Three-Phase Asynchronous Motors220v electric motor
IEC:63-355 ATEX certificate
Exd1 and Exd11BT4 ,Exd11CT4
Fashion fashionable YB3 Three-Phase Asynchronous Motors
YB3 motor 18.5kw Specifications
Three-Phase Asynchronous Motors High quality (IE2) explosion proof motor IEC:63-355 ATEX certificateExd1 and Exd11BT4 ,Exd11CT4rated voltage: 380, 660V
1.We Join Shanghai PTC(Power Transmission and Control) ASIA 2011.11
2.Our Professional Team(Management,R&D Dep,Eengineer Dep,Sales,Produce,Office)
3.Certification To Guarantee We are Good In Quality
Product YB3 motor 18.5kw
YB3 series explosion-proof three phase induction motor(Hereinafter refered to as YB3 Motor) are high -
efficiency explosion proof motor series,which are desighed and developed by our company with using advananced technology at home at abroad, combinated wiht the actual situration of china's explosion proof motor industry and market. are the updated and replalced products fo YB2 series.Efficiency index comform,to the regulation of motor evaluating value of energy 2
This series motor comform to Explosion proof mark:EXD1 Mb,Exd 11 AT 4, Exd11BT4 ,Exd11CT4,which are respectively applicable to fixed equipment in the coal mine and the environment of explosive gax mixture of temperature group of T1-T4 and level 11A,11B,11C in the factory.
The power grade and mounted dimensions of this series of motors conform to international elcetronical commision standard.the corresponding relations are same as YB2 series,and can swap YB2.
The Enclosure protection class of the sereies motor is IP55,,separate agreement if customer required other protection calss. The basic mounting type of this series motor is IC411, separate agreement if customer required other cooling calss .
The basic mounting type of this series motor is horizantal tpye wiht foot mounted structure,and they can also be made into IMB35,IMB5,IMV1 and etc.
On the basic of YB3 series motor, derived YB3-W outdoor,and YB3-WTH outdoor tropical-heat.
YB3 motor 18.5kw Use conditions
Ambient air temper ture: -15°C%<0<40
Altitude:No more than 100M
Rated frequency:50HZ
Rated voltage:380v,660v,1140v,380/660v,660/1140v
working mode:S1

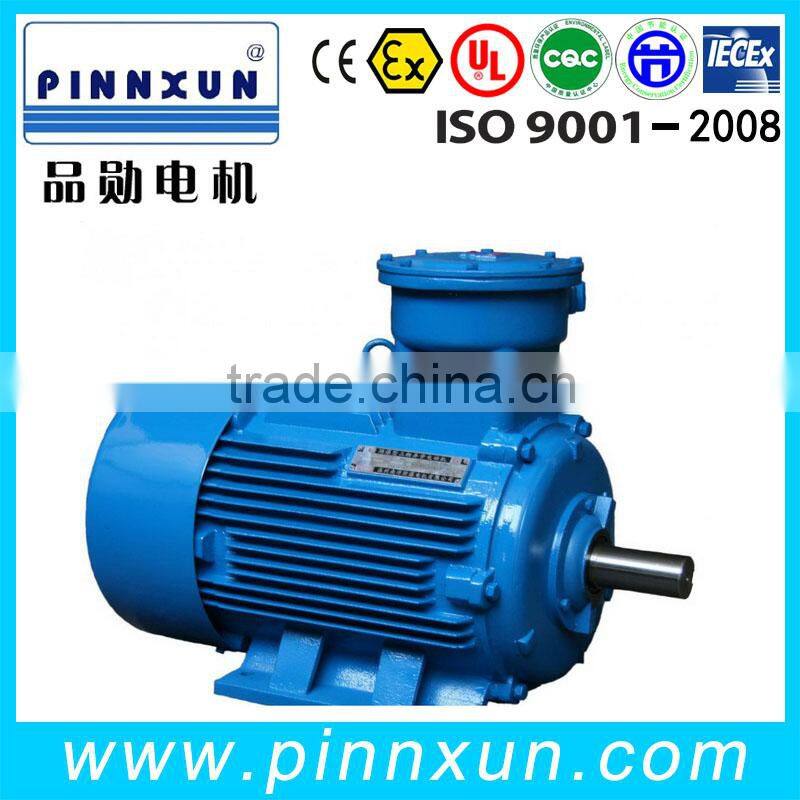

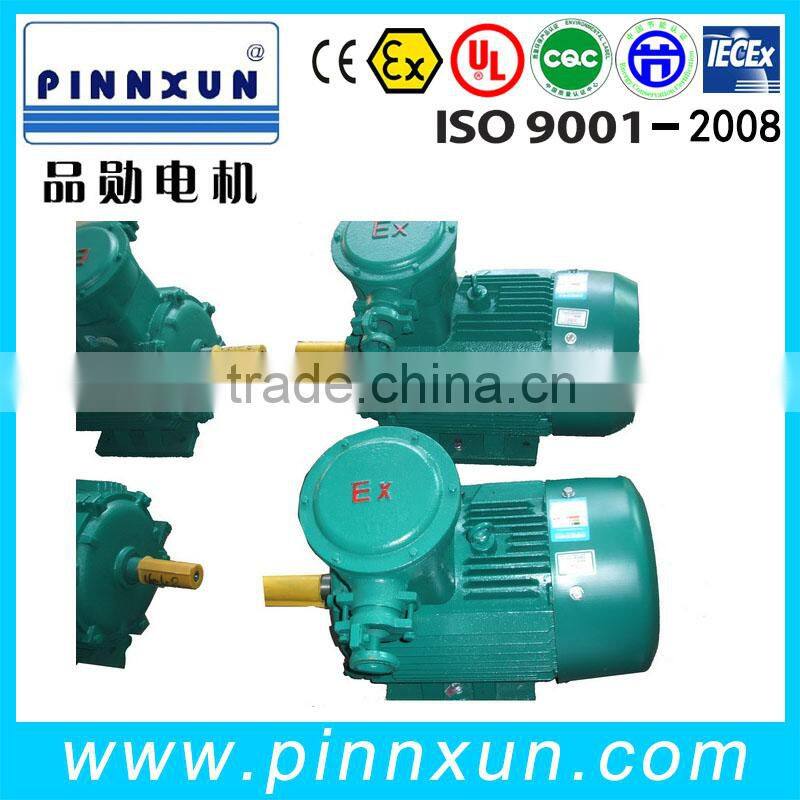

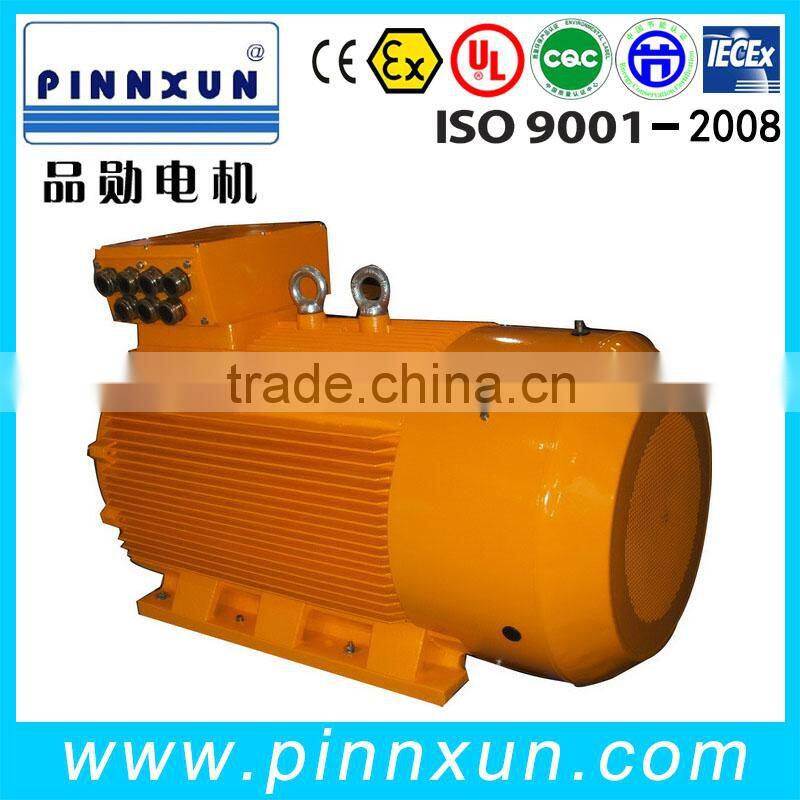

YB3 motor 18.5kw Pictures
Note:please tell if has any special requirement on rated frequency,rated voltage ,ambient air tempeture,altitude,and etc.
4.Our Mainly Products(LV and HV Motor for General equipments)
5.Mainly Produce Process(Punching,Winding,VPI Process,Balance,Assembly,Test)
6.Strong Package Ensure Motor safe enough for Ship or Truck Transportation.
7.Cargo,cantainer,shipment specification to ensure we are more professional.
YB3 motor 18.5kw
