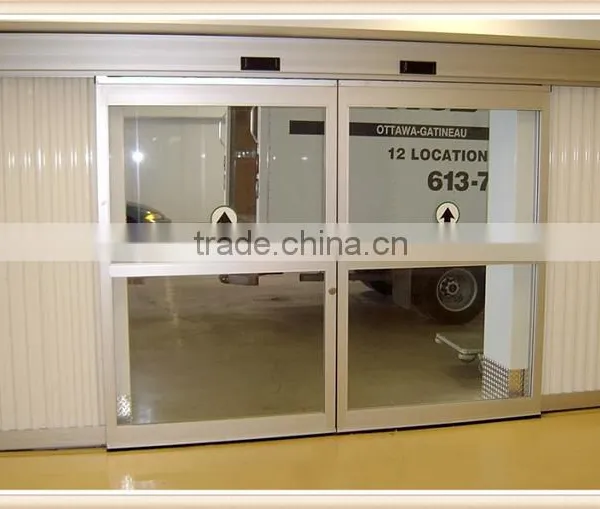

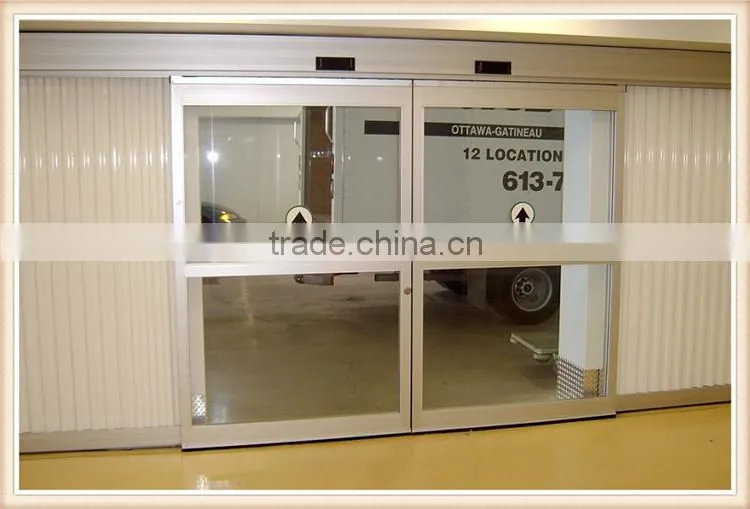

GTW Automatic Glass Swing Gate Operator

Size

Weight

Power supply requirements

Power demand

Ambient  temperature

Application in dry room

Power range

Door opening speed

Door closing speed

Door opening angle speed

Pause time after door opening

Drive

530 X 100 X 104 mm

11.3kg

230V  ,50HZ  , 10/13A

<100W

+15°C ~ -70°C

Maximum relative humidity 65°C

EN3-6

30-100%(adjustable)

main power supply fixed 30-100%  (power outage steadiness)

70-95° (adjustable)

1-30S  (adjustable)

60-100%(adjustable)

Clear passage width LW

-Door leaf weight, Max

Push rod of structure

Traction structure sliding bar

On and off

Fire operation (operation)

700-1400mm

300kg

√

√(only indoor)

FDC: Electric door, elastic light door. Elasticity can increase the power to close the door, but also to help close the program

FDC-E: electric switch, closing power is low, do not recommend the use of the installation in the door

FDC: elastic will let the door automatically shut down, whatever have or haven’t power supply,

FDC-E: no power will stop closing and need to by hand movement.
