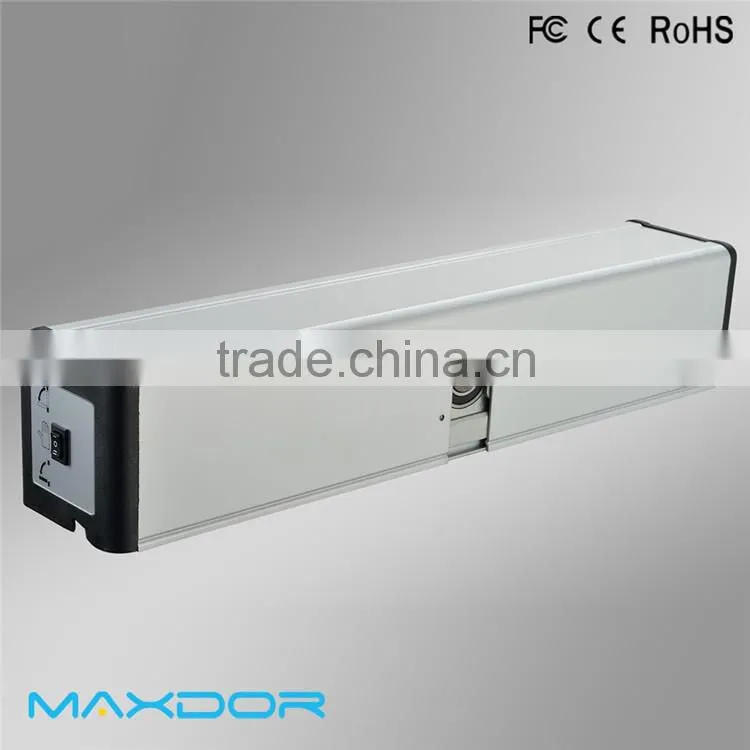

Help CenterGTW Automatic Double Open Swing Door System
Related Products
-
Maxdor GTW Automatic Electronic Swing DoorsUS$ 650.00 - 650.00MOQ: 1 Set -
GTW Sensor Kitchen Automatic Swing DoorsUS$ 650.00 - 650.00MOQ: 1 Set
-
Automatic Electronic Swing Door SystemUS$ 650.00 - 650.00MOQ: 1 Set
-
GTD Commercial Aluminum Frame Telescoping Glass DoorUS$ 800.00 - 1000.00MOQ: 1 Set
-
Maxdor Automatic Swing Doors SystemUS$ 650.00 - 650.00MOQ: 1 Set
Brand Name: Maxdor
Model Number: GTW
Door Type : Automatic swing door
Door Material: Glass , aluminum frame
Application type:stores,banks,hotel, Hospitals, restaurants,conference center,exhibition building
Delivery Detail: 10-15 days after receiving customers payment
Packaging Detail: Carton packing
Characteristic & Advantage
*Electric switch, closing power is low, elastic will let the door automatically shut down, whatever have or haven’t power.
*Manual automatic integrated design, power failure can be manually opened and closed, so that the door is not subject to power, more flexible and convenient.
*Adjustable parameter, easy to control,you can reset all the parameter and adjust the parameter with optional BEDIS.
Technical parameter
|
Size Weight Power supply requirements Power demand Ambient temperature Application in dry room Power range Door opening speed Door closing speed Door opening angle speed Pause time after door opening Drive |
530 X 100 X 104 mm 11.3kg 230V ,50HZ , 10/13A <100W +15°C ~ -70°C Maximum relative humidity 65°C EN3-6 30-100%(adjustable) main power supply fixed 30-100% (power outage steadiness) 70-95° (adjustable) 1-30S (adjustable) 60-100%(adjustable) |
Door parameters
|
Clear passage width LW -Door leaf weight, Max Push rod of structure Traction structure sliding bar On and off
Fire operation (operation)
|
700-1400mm 300kg √ √(only indoor) FDC: Electric door, elastic light door. Elasticity can increase the power to close the door, but also to help close the program FDC-E: electric switch, closing power is low, do not recommend the use of the installation in the door FDC: elastic will let the door automatically shut down, whatever have or haven’t power supply, FDC-E: no power will stop closing and need to by hand movement. |
