Brand Name: Maxdor
Model Number:GT150
Door Type : sliding door
Door Material: Glass , aluminum frame
Application type:stores,banks,hotel, Hospitals, restaurants,conference center,exhibition building
Delivery Detail: 10-15 days after receiving customers payment
Packaging Detail: Carton packing

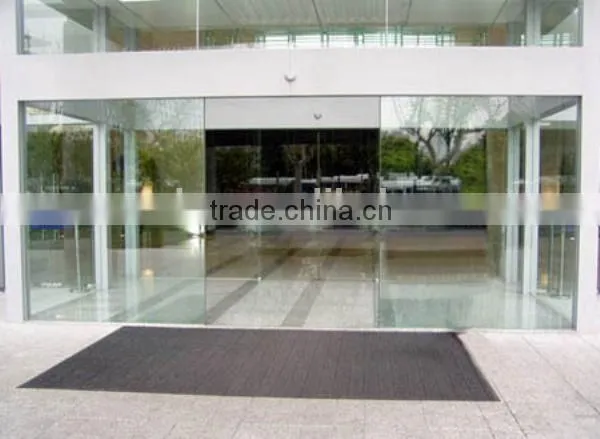

GT150 Automatic sliding sensor glass door
Two wire connect, installation easy, function advance.
With latest module, capable of achieving complex functional operation.
Characteristic
2.Sidelite protection - Additional sensors located above the opening path of the door will slow the opening if a person or object will inhibit the door opening normally.
*By cooperating with and authorized by Dunker motor, the motor equipped in automatic doors are Germany Dunker motor.
*Electric lock &Battery pack with latest module, capable of achieving complex functional operation.
*Program switch ( BEDIS control panel )
The numbering of the LED’s on the front plate corresponds to their binary value. Number of the error in obtained by adding the numbers next to the LED’s which are lit.
Capable of achieving complex functional operation, intelligent design to make the practical and adaptive capacity of the door.
Control board |
Function Adjustable |
|
Modular design |
|
*Reset resume initialization *OPENING SPEED 40…100% *CLOSING SPEED 25…66% *OPENING WIDTH(winter) 25…90% *HOLD-OPEN TIME(standard)0…10sec *HOLD-OPEN TIME ni ght 0…30sec |
|
Microprocessor control -Function programs -Automatic -Permanent open -Partial opening -Exit only -Manual release device |
|
|
|
Connection -Electro-mechanical locking device -Light barriers |
|
|
Emergency opening or emergency closing |
|
|
|
24 V output for external load
|
|
|
| Door parameters | |
|
Single-leaf sliding door -Clear passage width LW -Door leaf weight, Max |
700-3000mm 1 x 100kg |
|
Double-leaf sliding door -Clear passage width LW -Door leaf weight, Max |
800-3000mm 2 x 110kg |
Reminder |
GT150 with single motor GT300 with double motor |
| Technical date | ||||||||||||||||||
|
Standard Components |
|
1. Motor Drive Unit 2. Transformer 3. Control module 4. Electronic lock 5. Belt connection 6. Belt carrying wheel 7. Locating wheel 8. Mute rubber
|
Optional Accessory |
|
10. Battery pack 11. Cover 220mm 12. Electric mechanical lock or Manual unlocking device 13. Safe barrier or BEA Eagle six safe sensor(with radar curtain) |
Automatic door manufacturing and production inspection pictures.
Packaging and transportation.

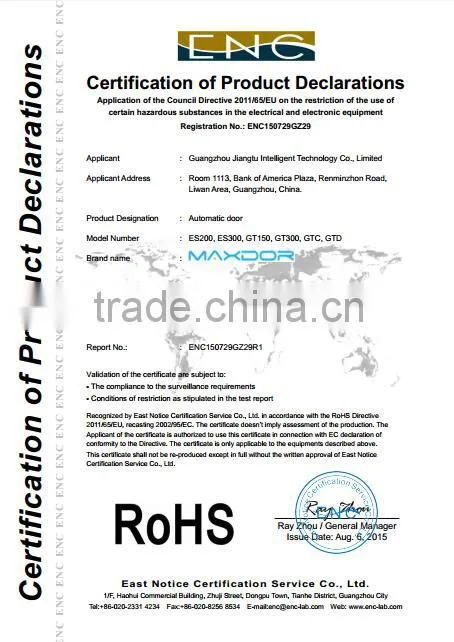

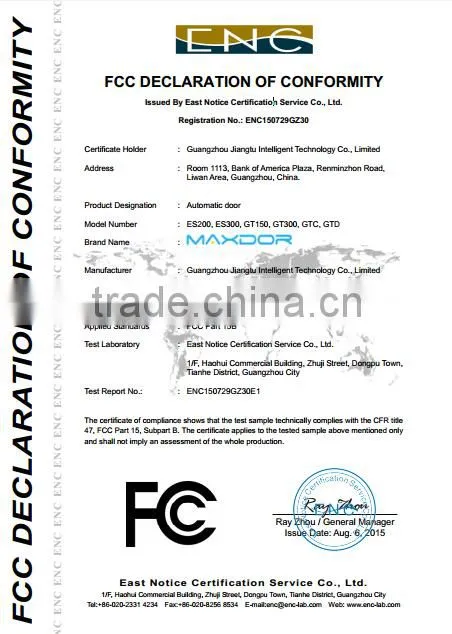

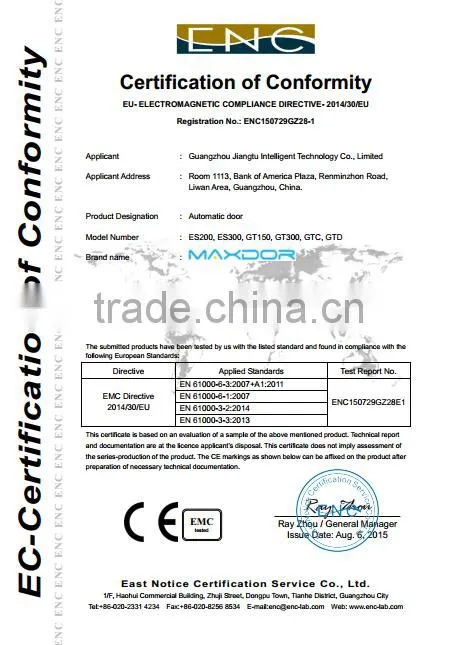

* All product through CE ,ROHS ,FCC certification, strict quality supervision.
