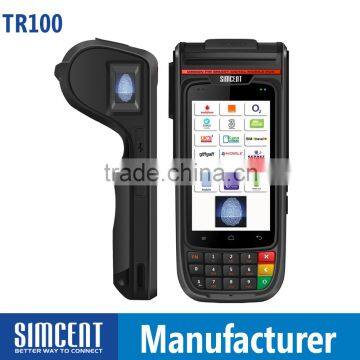

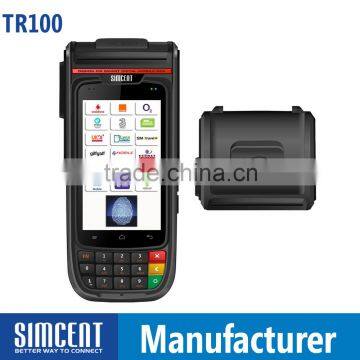

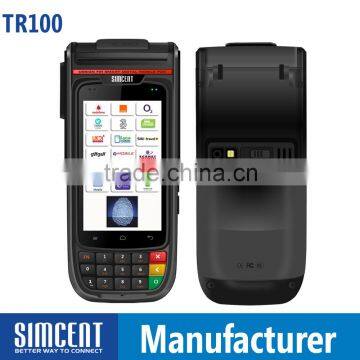

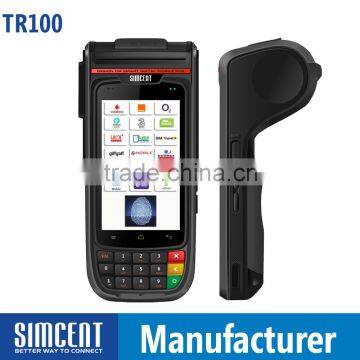

| 4"Android Handheld terminal TR100 Series | ||
|
Performance Characteristics |
Operating System | Android 5.0, supports multi-language |
| CPU | Quad-core 1.2GHz | |
| Display | 4-inch QVGA (800*480) TFT-LCD | |
| Panel | Ultra sensitive capacitive touch screen | |
| RAM | 1GB | |
| ROM | 4GB | |
|
Physical Characteristics |
Dimensions (LxWxD) |
173mm x 72 mm x 45 mm |
| Weight | 300 g ( battery included) | |
| Keyboard |
1.Number/Alphabetic keys(Backspace,Enter,Delete), 2.ON/OFF key 3.User-defined function button x1 |
|
| Input | multi-language, and support handwriting and soft keyboard | |
| Promting Mode | LED ,loud speaker | |
|
Radio Communication |
WiFi |
Wi-Fi 802.11 a/b/g (Support both 2.4G and 5G) |
| Bluetooth | Bluetooth 4.0 LE | |
| WCDMA |
GSM:850/900/1800/1900Mhz UMTS/HSPA:850/900/1900/2100Mhz |
|
|
HSDPA Cat.8 / HSUPA Cat.6 : DL 7.2 Mbps, UL 5.7 Mbps EDGE Class 12 : DL 237 kbps, UL: 237 kbps GPRS Class 12 : DL 85.6 kbps, UL: 85.6 kbps | ||
| Printer | Printing Speed | 50~70mm/s, and supports barcode printing |
| Paper Width | 58mm printing paper, 203dpi / 8dot / mm; | |
| Roll Diameter | 40 mm | |
| Power | Main Battery | Rechargeable 3.8 V 4500 mAh lithium battery pack(Operation time ≥8 hours) |
| RTC Battery | Supports to keep clock at real time | |
| Adapter | 5V/3A | |
| Options | Camera | 5.0 mega pixels with flash and automatic focus; Supports video recording |
| GPS | GPS,Supports A-GPS | |
|
Contactless card reader |
ISO14443 Type A/B, Mifare® | |
| Fingerprint | Capacitive or Optical , Optional ISO19794,ANSI378 compliant SDK. | |
| User Environment | Operating Temp | -15℃ ~ 45℃ |
| Storage Temp | -20℃ ~ 65℃ | |
| Humidity | 5 ~ 95% (non condensing) | |
|
Peripherals and Accessories |
Micro SD/TF | Micro SD/TF X 1(up to 32 GB) |
| SAM Slots | 1 SAM Slots, ISO7816 | |
| SIM Slots | SIM x 1,Optinal:SIM x 2 | |
| Peripheral Ports | Micro USB*1, RS232*1 | |
| Regulatory | Certification | CE, RoHS |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | |

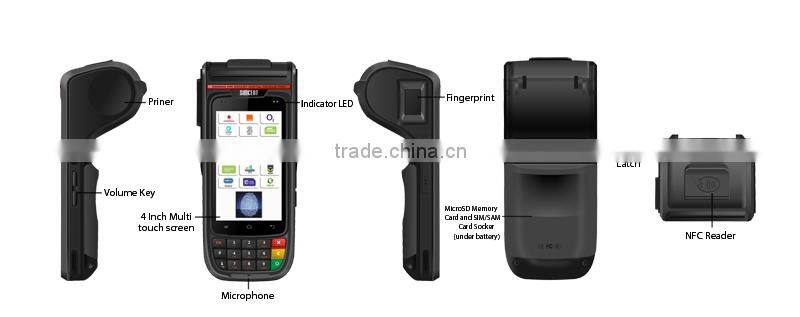

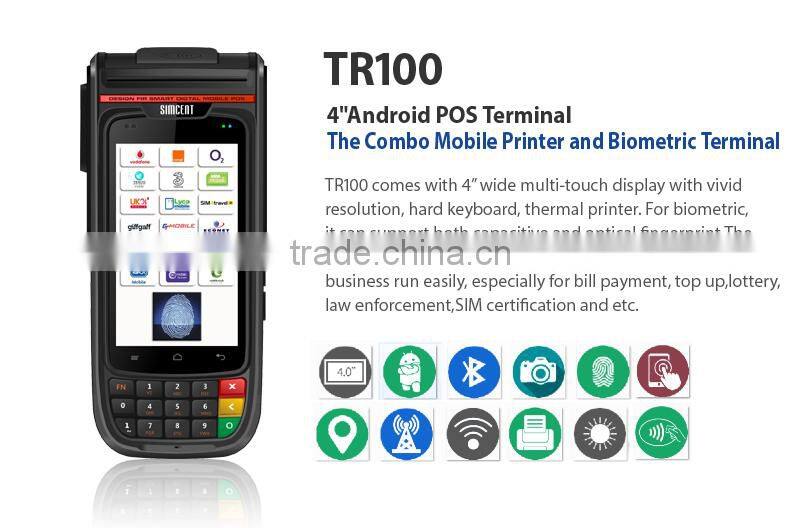

FEATURES:

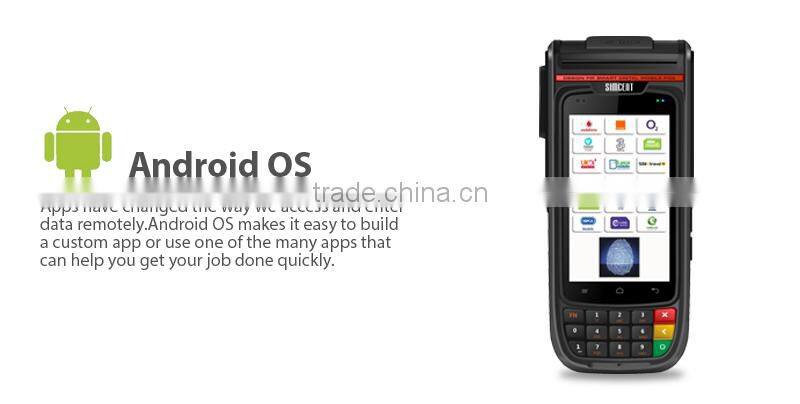

Android 5.0

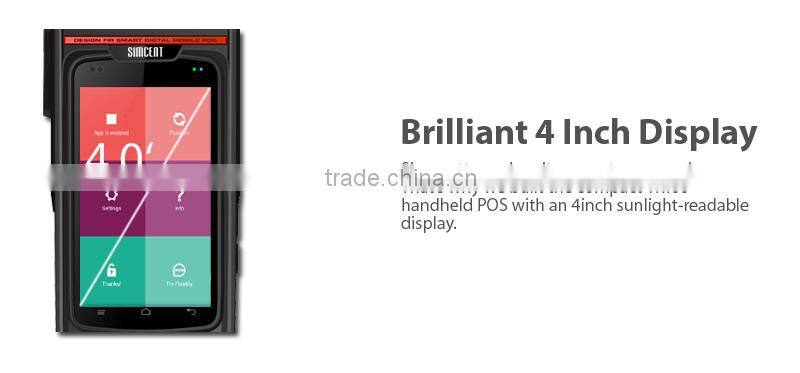

4.0” Capacitive Touch Screen

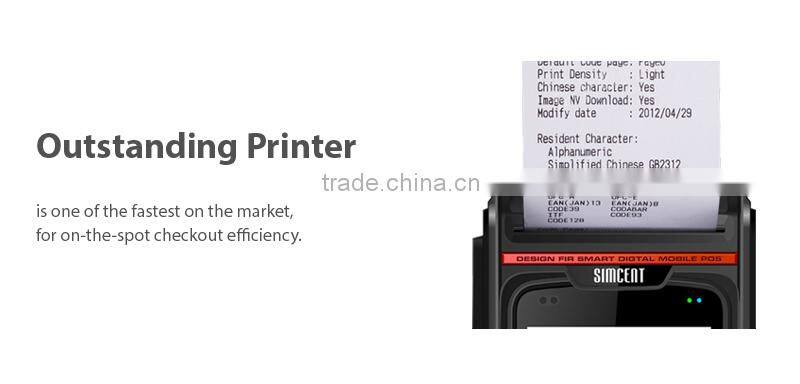

58mm thermal printer with 40mm paper roll

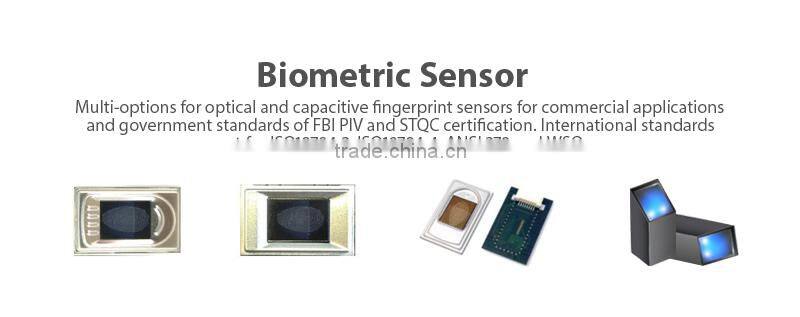

Biometric Fingerprinter
Numeric hard keypad
5MP Auto Focus Camera
GPRS, HSPA+ ,Wifi, Bluetooth,GPS
NFC Ready
Q: How about your product quality?
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
