Help Center5.5"Android POS Terminal TR160
Related Products
-
All in One Android POS With Barcode Scanner Printer NFC\IC Card Reader\Smartcard Reader Quality ChoiceUS$ 1 - 500MOQ: 1 Piece -
Android Pos Terminal With Barcode Scanner NFC PrinterUS$ 1 - 500MOQ: 1 Piece
-
Android Pos Terminal With Printer\NFC\barcode Scanner Quality ChoiceUS$ 1 - 500MOQ: 1 Piece
-
Pos Wifi Android Invoice 58mm Barcode Scanner\ NFC\IC Card Reader\Smartcard ReaderUS$ 1 - 500MOQ: 1 Piece
-
Pos Android With Barcode Scanner\printer\NFC\IC Card Reader\Smartcard Reader Quality ChoiceUS$ 1 - 500MOQ: 1 Piece

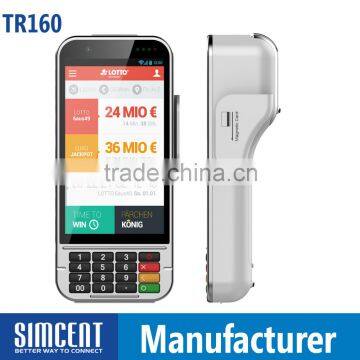

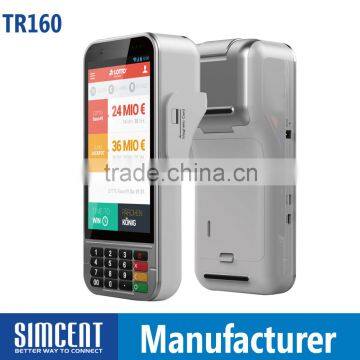

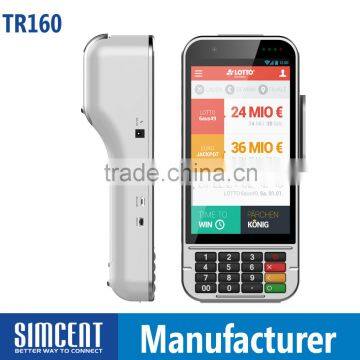

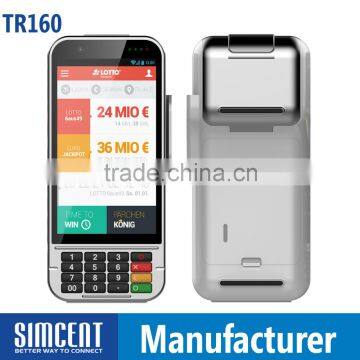

| 5.5" Android Handheld Terminal TR160 | ||
|
Performance Characteristics |
Operating System | Android 4.2, supports multi-language |
| CPU | Dual-core 1.2GHz | |
| Display | 5.5-inch 540*960TFT-LCD | |
| Panel | Sensitive capacitive muti-touch screen | |
| RAM | 1GB | |
| ROM | 8GB | |
|

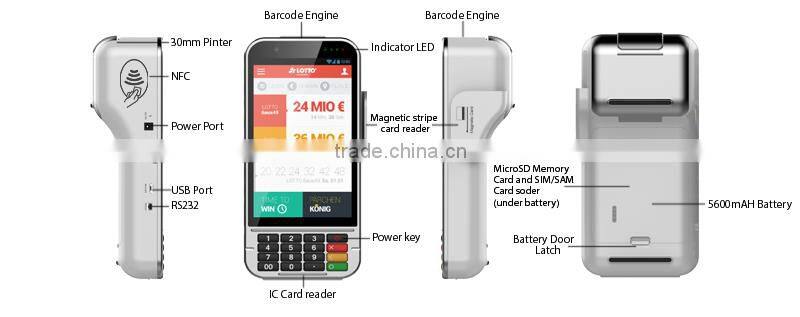

Physical Characteristics |
Dimensions (LxWxD) | 176.5mm x 78 mm x 56 mm |
| Weight | 450 g ( battery included) | |
| Keyboard |
1.Number keys(Backspace,Enter,Delete), 2.ON/OFF key 3.User-defined function button x1 |
|
| Input | Muti-language, and support handwriting and soft keyboard | |
| Promting Mode | LED ,loud speaker | |
|
Radio Communication |
WiFi |
Wi-Fi 802.11 a/b/g (Support both 2.4G and 5G) |
| Bluetooth | Bluetooth 4.0 LE | |
| WCDMA |
GSM:850/900/1800/1900Mhz UMTS/HSPA:850/900/1900/2100Mhz |
|
|
HSDPA Cat.8 / HSUPA Cat.6 : DL 7.2 Mbps, UL 5.7 Mbps EDGE Class 12 : DL 237 kbps, UL: 237 kbps GPRS Class 12 : DL 85.6 kbps, UL: 85.6 kbps | ||
| Payment | Magcard | Conforms to the ISO7811 |
| Smart Card Reader | ISO 7816 | |
| Contactless | Supports 13.56Mhz, ISO14443A/B and ISO15693 standard, Mifare, Felica | |
| Printer | Printing Speed | 18 lines per second |
| Paper Width | 58mm | |
| Roll Diameter | 30mm | |
| Power | Main Battery | Rechargeable 3.7V 5400 mAh lithium battery pack(Operation time ≥8 hours) |
| RTC Battery | Supports to keep clock at real time | |
| Adapter | 5V/3A | |
| Options | Camera | 5.0 mega pixels with flash and automatic focus; Supports video recording |
| GPS | GPS,Supports A-GPS | |
| Contactless | Supports 13.56Mhz, ISO14443A/B and ISO15693 standard, Mifare, Felica, | |
| 1D Linear Scanner |
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded |
|
| 2D Imager Scanner |
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, 2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
|
| User Environment | Operating Temp | -15℃ ~ 45℃ |
| Storage Temp | -20℃ ~ 65℃ | |
| Humidity | 5 ~ 95% (non condensing) | |
|
Peripherals and Accessories |
Expansion | Micro SD/TF X 1(up to 32 GB), SIM x 1,SAM x 1 |
| Interfaces | Micro USB*1, RS232*1 | |
| Regulatory | Certification | CE, RoHS, China UnionPay approved |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | |
FEATURES:
Cost Effective
Android 4.2
Dual Processor
5.5” Capacitive Touch Screen
Smart Card Reader and Magnetic Card Reader
Fast 58mm Thermal Printer with 30mm Paper Roll

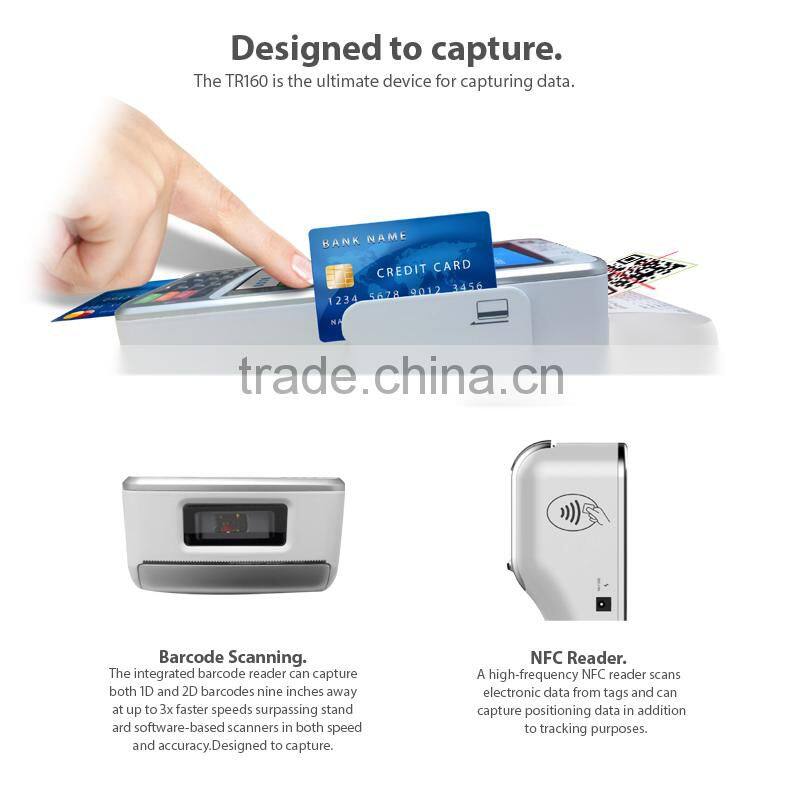

Optional 1D/2D barcode reader
5MP Auto Focus Camera
GPRS, HSPA+ ,Wifi, Bluetooth,GPS
NFC Ready

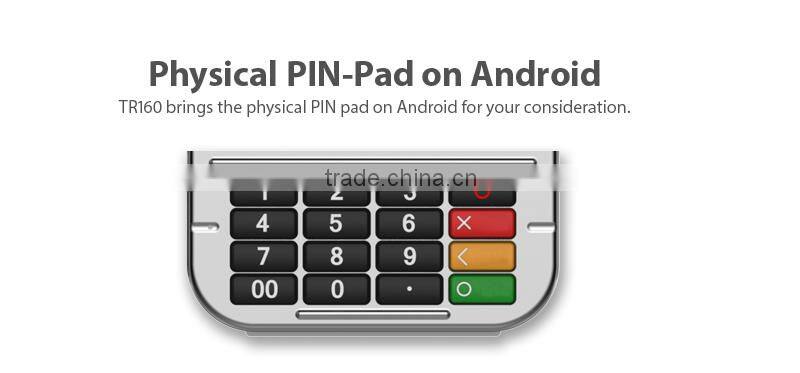

Numeric Hard Keypad
Q: How about your product quality?
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
