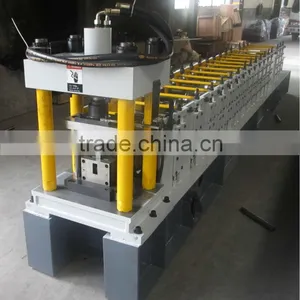

Drywall Metal Stud Roll Forming Machinery
Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services

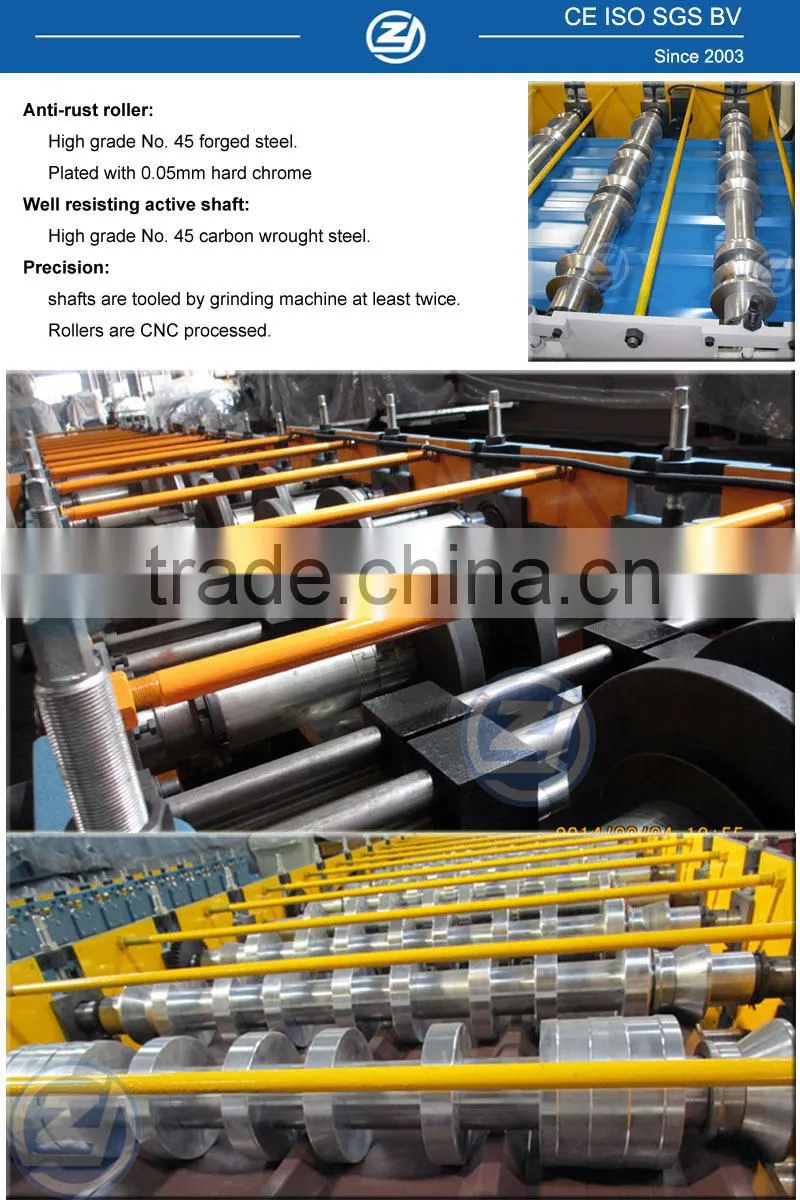

3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.

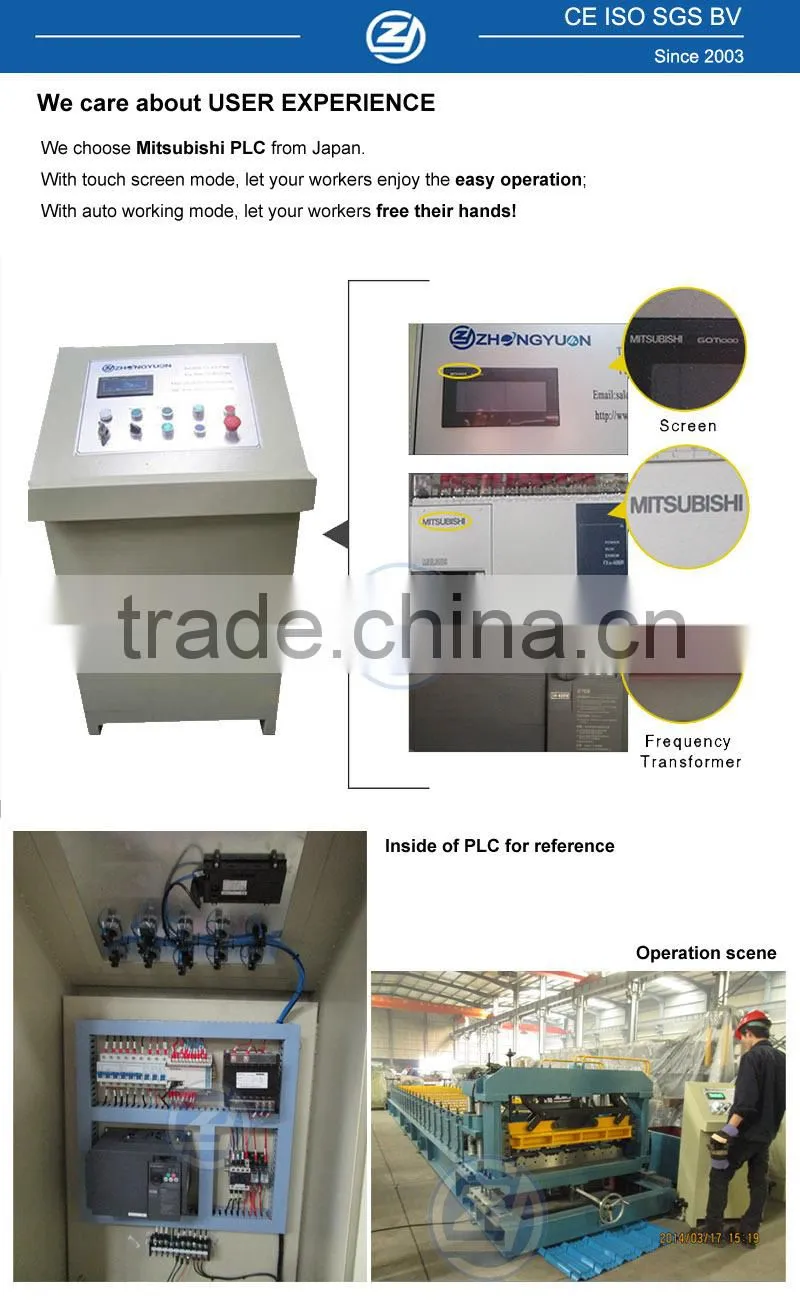

4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)

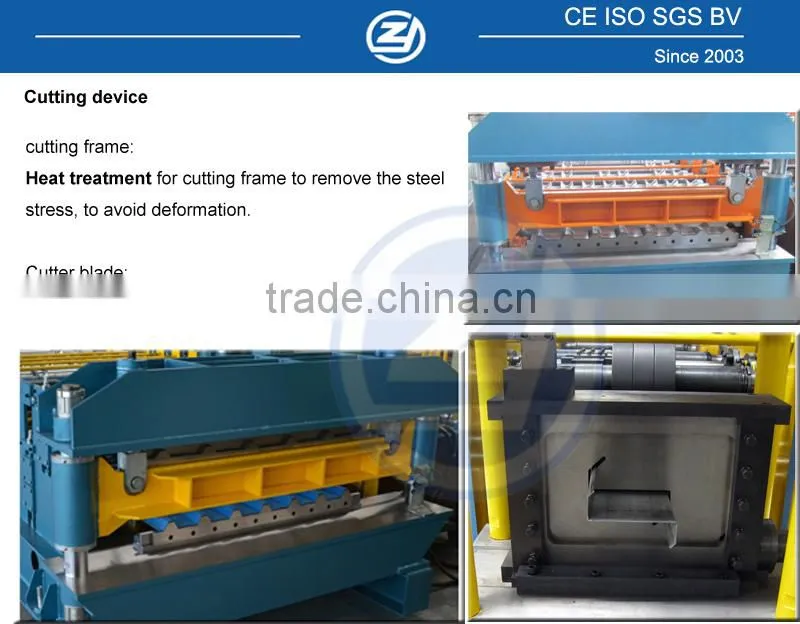

6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Machine components:

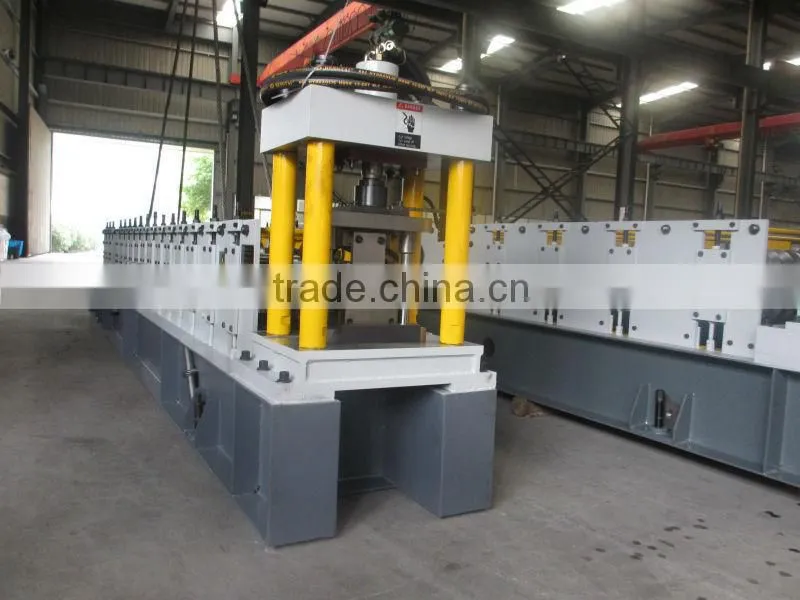

Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system , cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:
| Item | Specification |
| Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.7 |
| Yield strength (mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 20-25 |
| Speed adjusting mode | AC Frequency |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 7.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 9.7 kw |
| Uncoiler's loading capacity |
Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 12*1.6*1.6m (Depend on final design) |
We are professional in making roll forming machines since 2003.
1. Company occupies 6650, in which 5650 for workshops.
2. Capacity: 12-15 sets/month.
3. We are "All-in-house source" --from raw material to the final high-precision forming machine.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
| |||
|

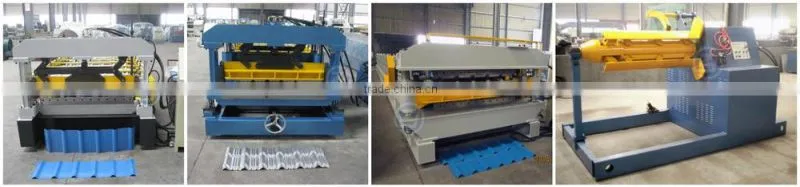

Roof forming machine
|
Tile forming machine
|
Double layer machine
|
Accessory machine
|
| |||
|
Door frame machine |
C, Z Purlin machine
|
Shutter door machine |
Floor decking machine |
| |||
|

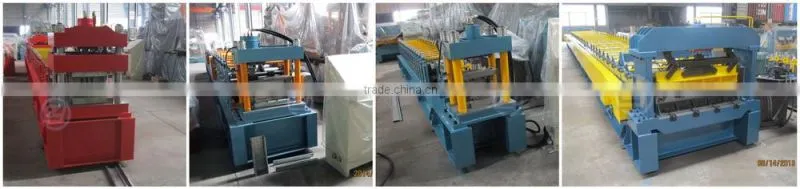

Stud and track machine
|
