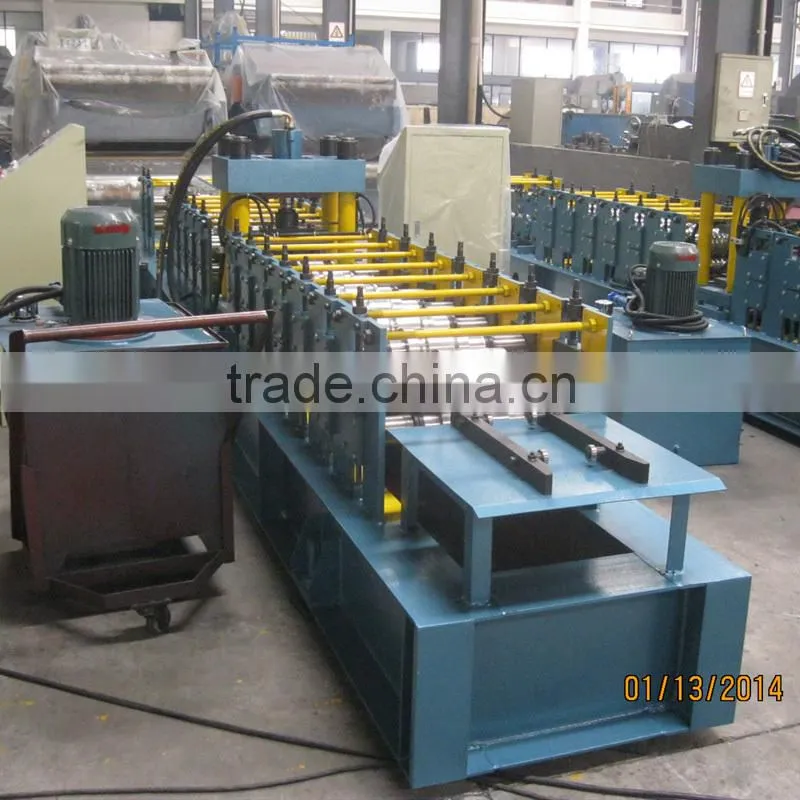

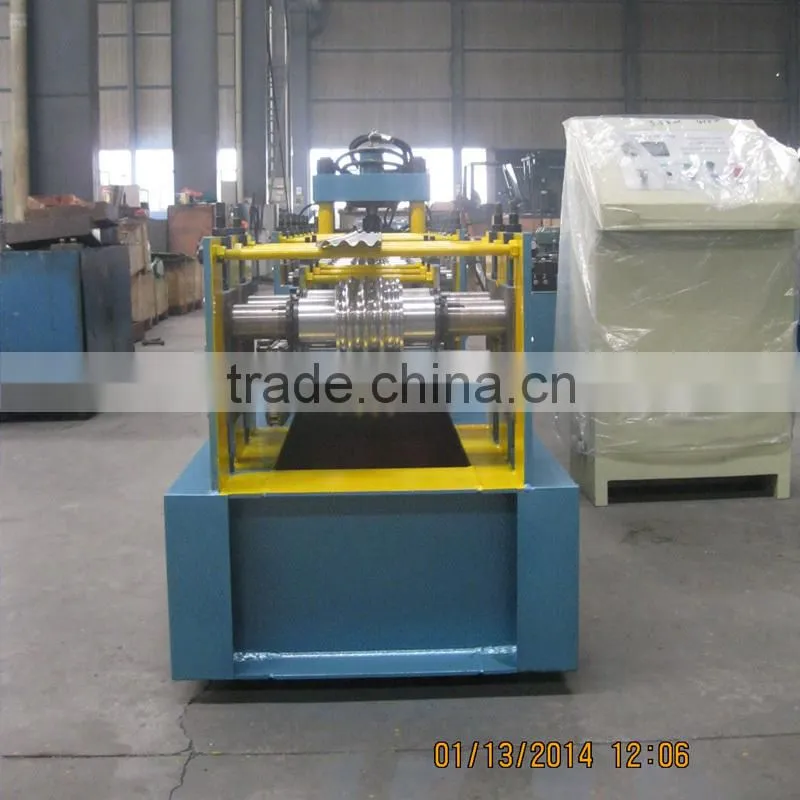

Roller Shutter Door Roll Forming Machine
Summary
1. Lifetime services
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
5. 72mm diameter solid steel shaft
6. Cr12 mould steel cutter with quenched treatment. Cutting blade with heat treatment.
7. Product cut-to-length.
8.Technician overseas installing and training available
1. Main technical Parameters
| Item | Specification | |
| Type | Cold-rolled steel strip and heat-treated galvanized steel strip | |
| Material | Thickness(mm) | 1.2 |
| Yield strength(mpa) | 235 -345 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 15 | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 7.5KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Total power(kw) | 13KW | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s size | About 7*1.2*1.6m (Depend on final design) | |
| Machine weight | About 3000kgs | |
| Shafts | 72mm solid steel | |
2. Components
3. Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

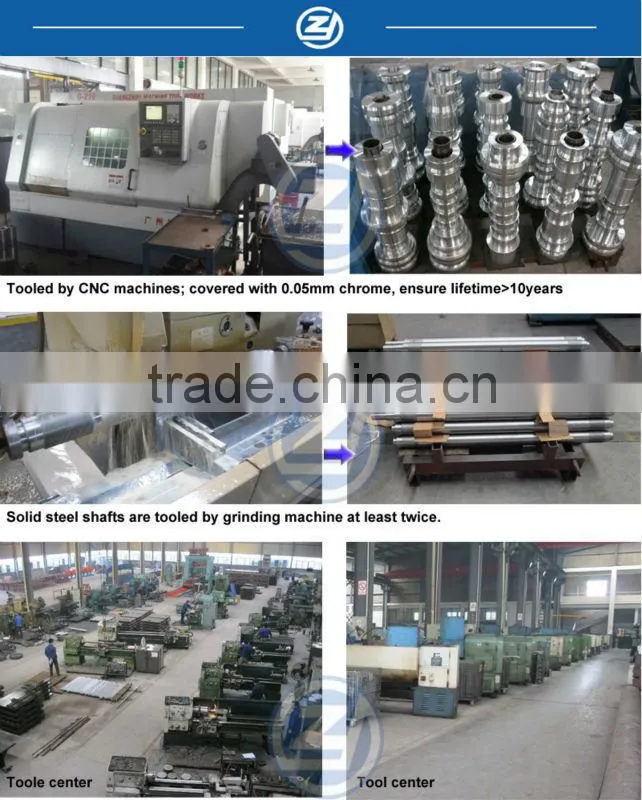

4. Rollers and shafts
Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision.
72mm solid steel shafts; hard chrome rollers.
What is the main process of our machine rolllers and shafts?

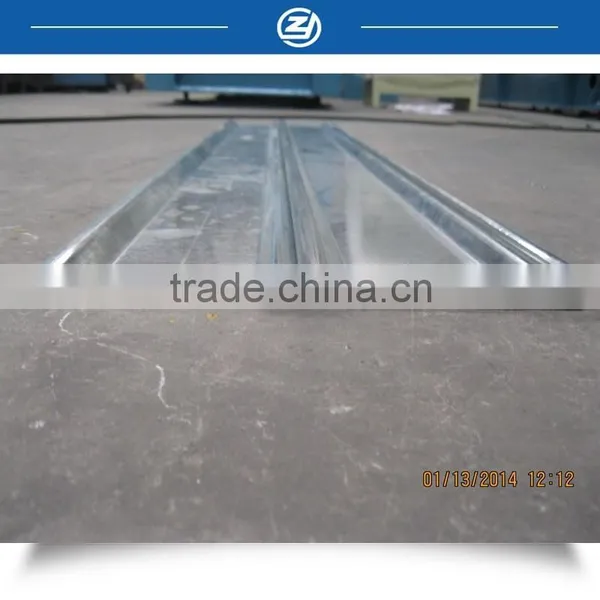

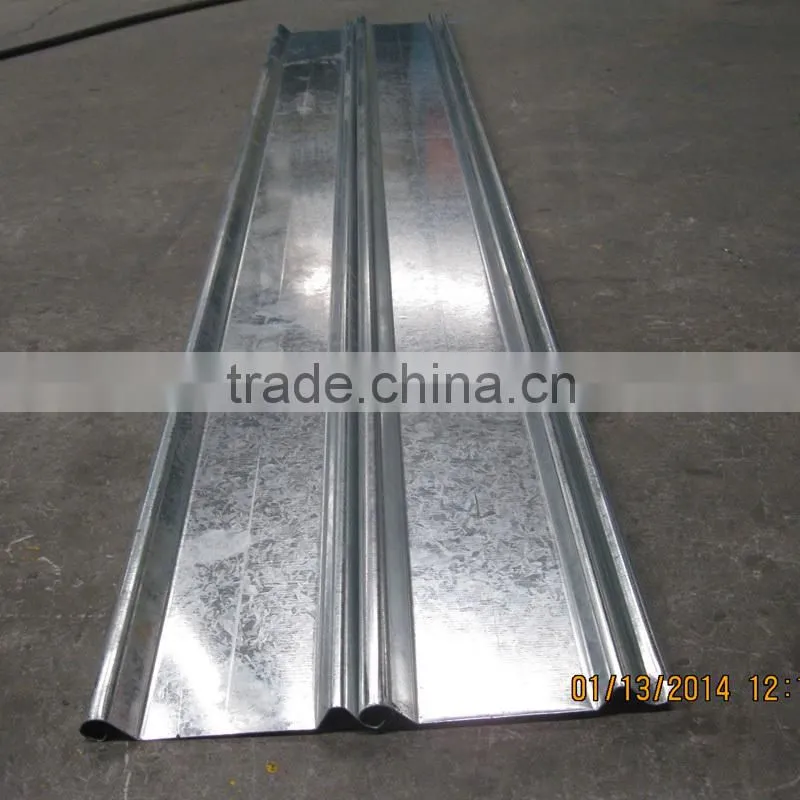

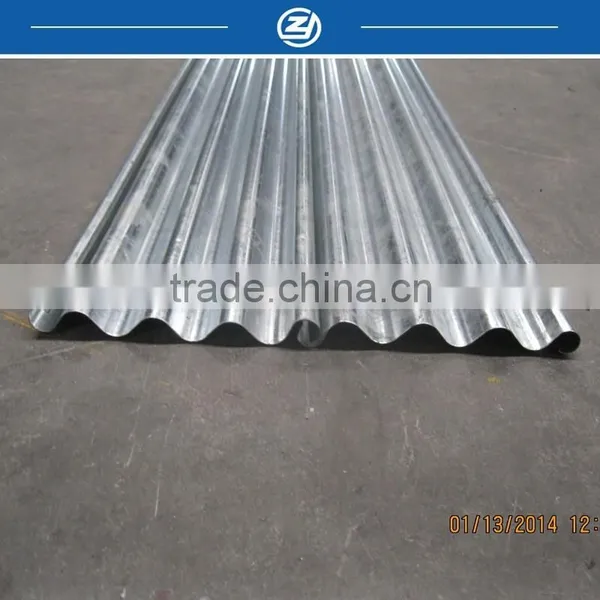

Panels formed by this machine
PLC Controller for roll up door forming machine
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!
Inside of PLC Controller for reference
We customize your machines!
To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
How is our cooperation process?
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
