Roll Forming Machine for Garage Door
Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1.Technical parameter of Roll Forming Machine for Garage Door
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.3-0.7mm |
|
Yield strength |
235-345Mpa |
|
Roller material |
No.45 forged steel, be plated with hard chrome 0.05mm thickness |
|
Forming speed |
About 15-20m/min |
|
Output speed |
12m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
7.5KW |
|
Hydraulic station motor power |
2.2 KW |
|
2. Components of Roll Forming Machine for Garage Door
Decoiler |
1set |
Feeding & guiding device |
1set |
Main roll forming machine |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |
3.Process flow of Roll Forming Machine for Garage Door
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

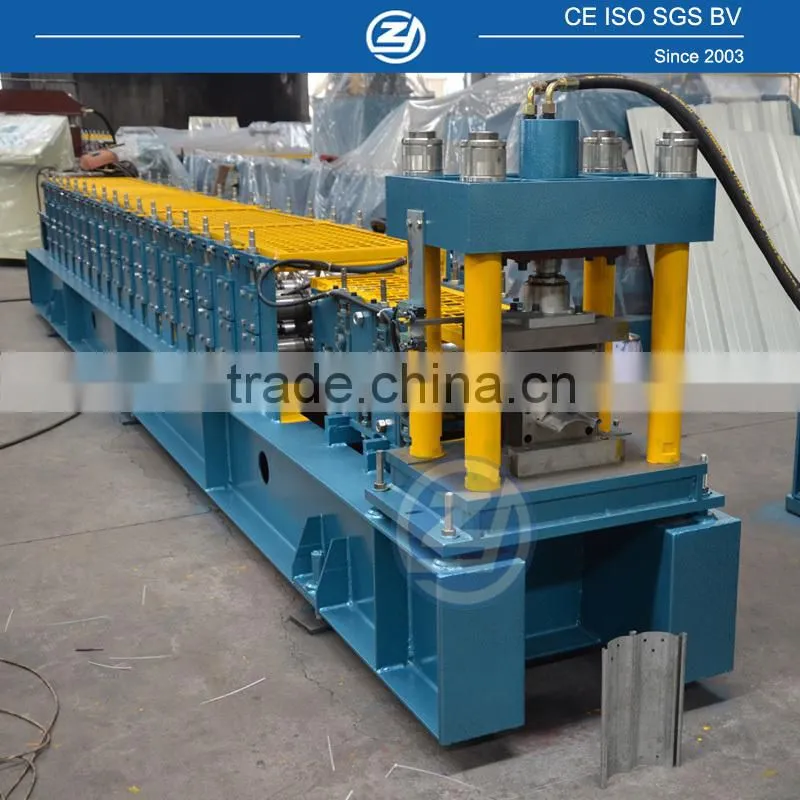

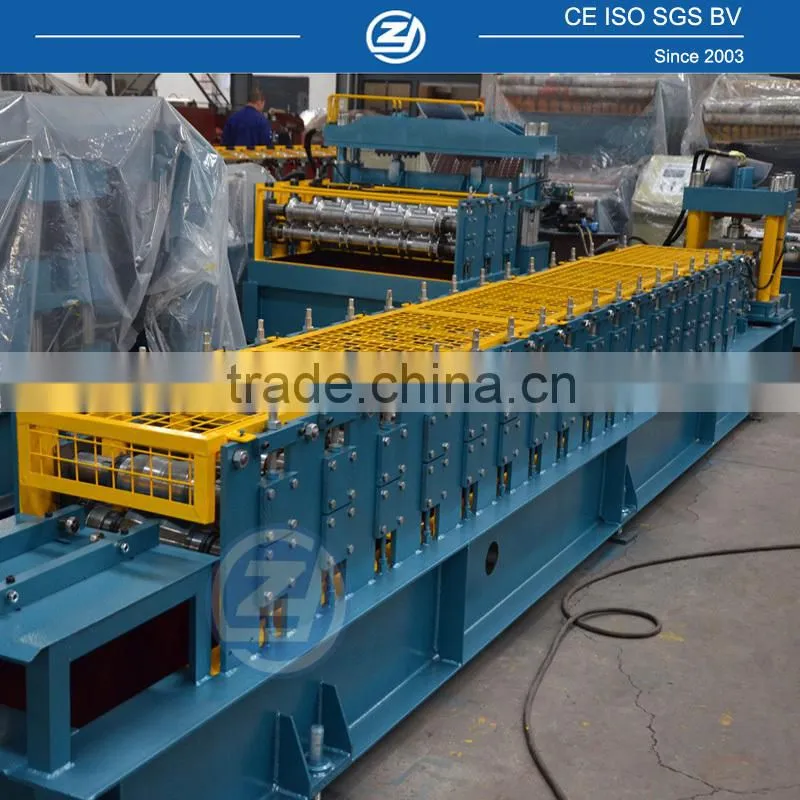

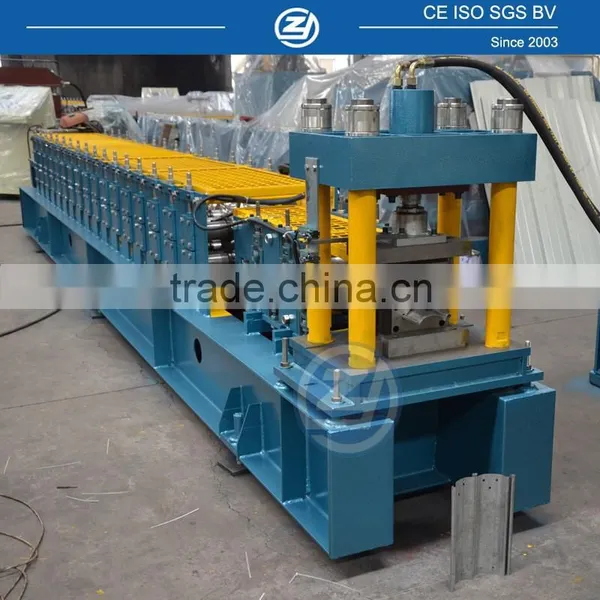

Roll Forming Machine for Garage Door

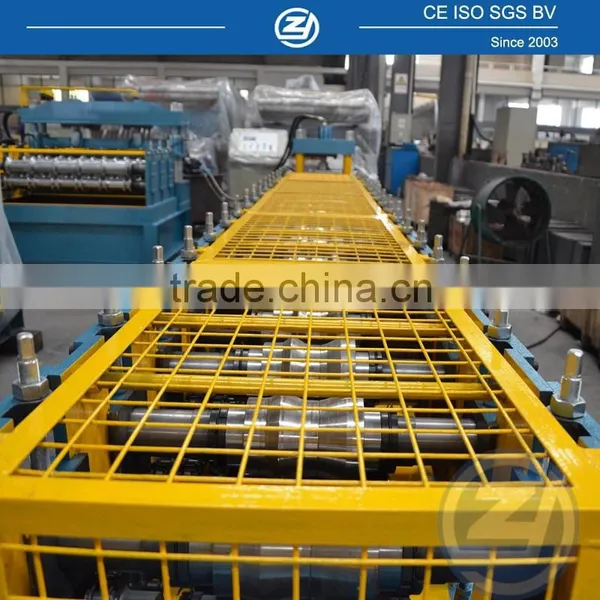

Forming system

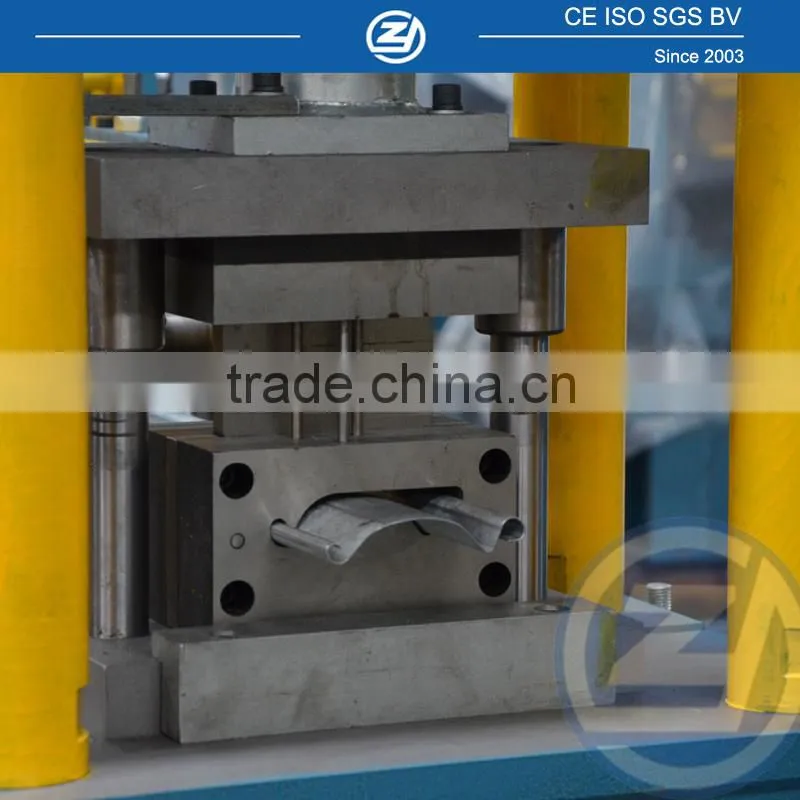

Cutter

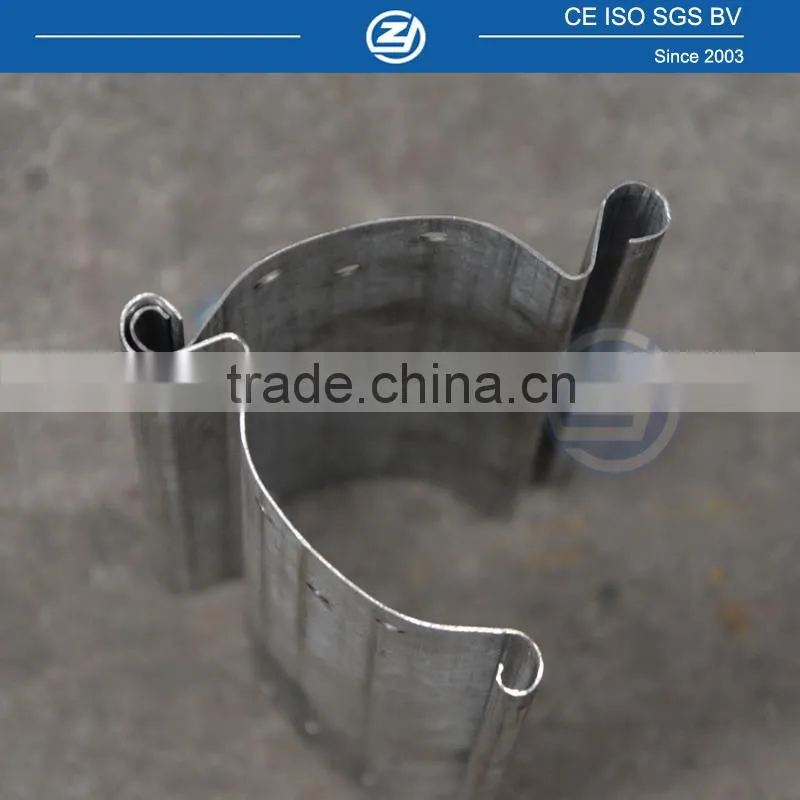

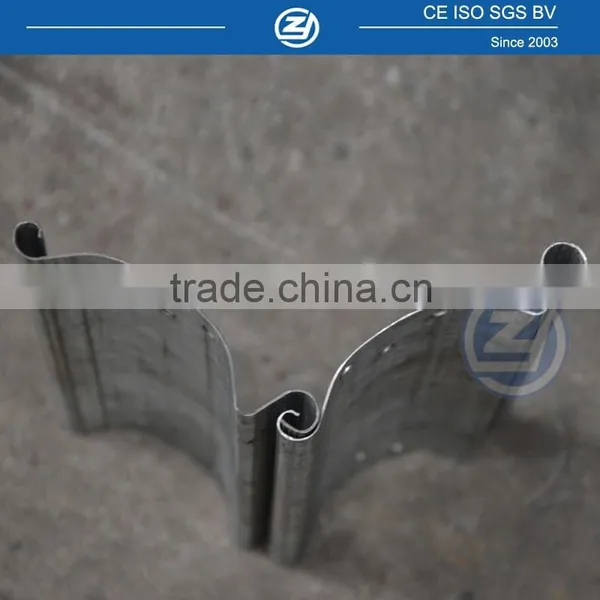

Panels
We are professional in making roll forming machines since 2003.
1. Company occupies 6650, in which 5650 for workshops.
2. Capacity: 12-15 sets/month.
3. We are "All-in-house source" --from raw material to the final high-precision forming machine.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
