3V lithium button cell cr2032
- 130000 Piece / Pieces per Month
- SHENZHEN/HONGKONG
- T/T L/C D/P D/A Credit Card PayPal
-
TROILY NIMH battery 40H cell 1.2V40mAH rechargeable coins
-
TROILY 4.8V 6.0V 80mAh 110mAh NIMH button rechargeable battery
-
TROILY Ni-MH button battery H250mAh 1.2V rechargeable coin
-
NiMH coin 3S1P battery 3.6V 110mAh rechargeable battery packs
-
CR1220 Panasonic Battery Coin Cell Battery 3V 12 X 2.0 MM 35mA
-
CR2032 2025 2016 Button Battery Manual Sealer Hydraulic Coin Cell Crimping Machine
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | WINPOWA+ | Model Number: | CR2032 |
| Battery Type: | LiMnO2 | Size: | 20*3.2mm | Nominal Capacity: | 240mAh |
| Nominal Voltage: | 3V |
Product Description
button cell cr2032
1.Electrical Characteristics
(Conditions : 1kΩ±0.5% load resistance, measuring time 0.3seconds, 20±2°C, tested within 30 days after delivery) button cell cr2032
| Off-load voltage (V) | On-load voltage (V) | Acceptance Standard |
New battery | 3.05 | 2 | MIL-STD105E, AQL=0.4 |
After 12 mon. room temp. | 3.04 | 2.7 |
MIL-STD105E, AQL=0.4
|
2.Shelf Life
(One years after delivery under proper storage conditions.) button cell cr2032
3.Service Output
(Conditions : Test temp. 20±2°C, tested within 30 days after delivery.) button cell cr2032
| Discharge Condition | Average Minimum Discharge Time | |||||
Discharge Load | Daily Discharge time | End Point Voltage(V) | New battery | After 12mth.at room temp. | |||
Standard | 15KΩ | 24h | 2.0 | 100h | 85h | ||
Acceptance Standard:
(1) 9 pieces of battery will be tested for each discharging standard .
(2) The result of the average discharging time from each discharging standard shall be equal to or more than the average minimum time requirement. button cell cr2032

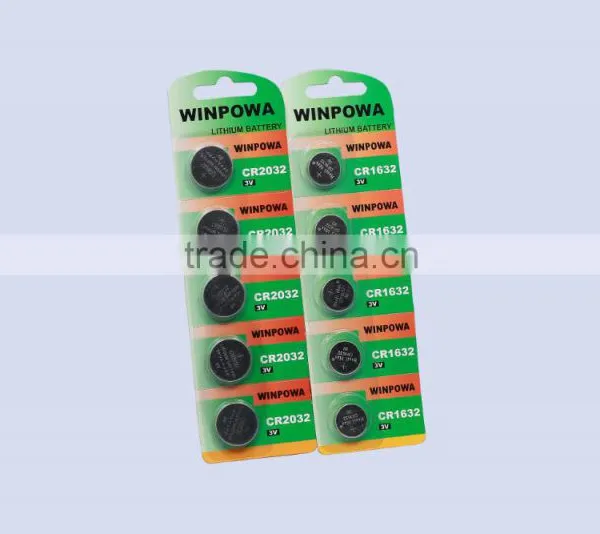

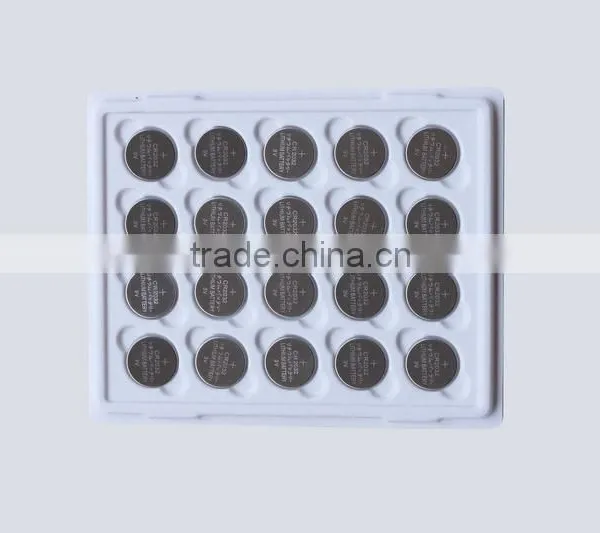

4.Image
