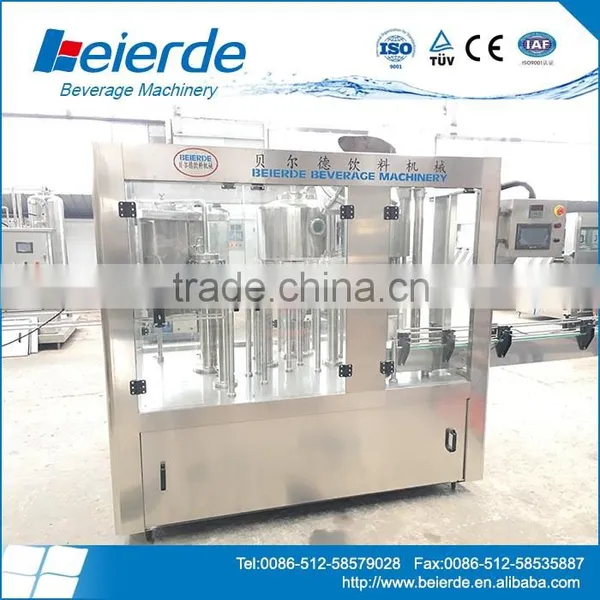

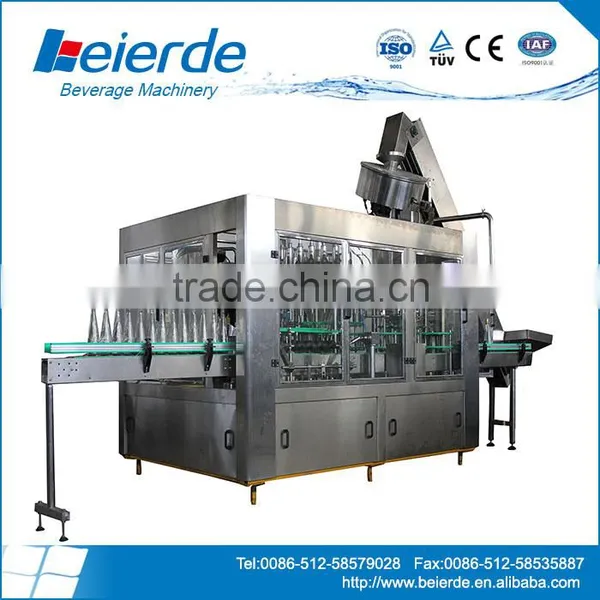

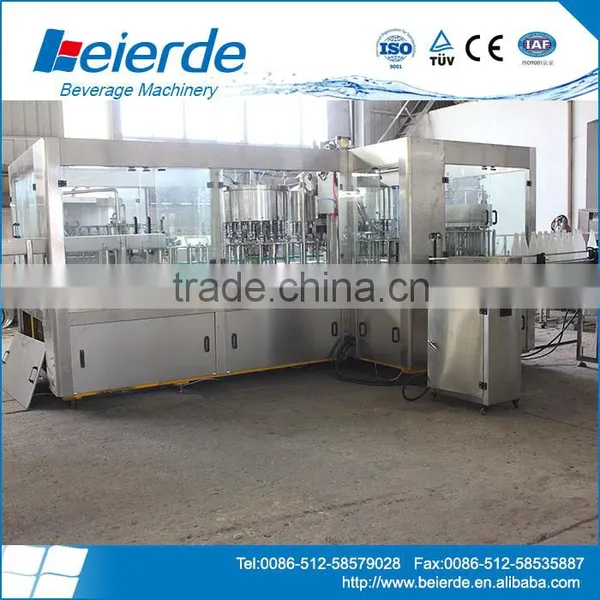

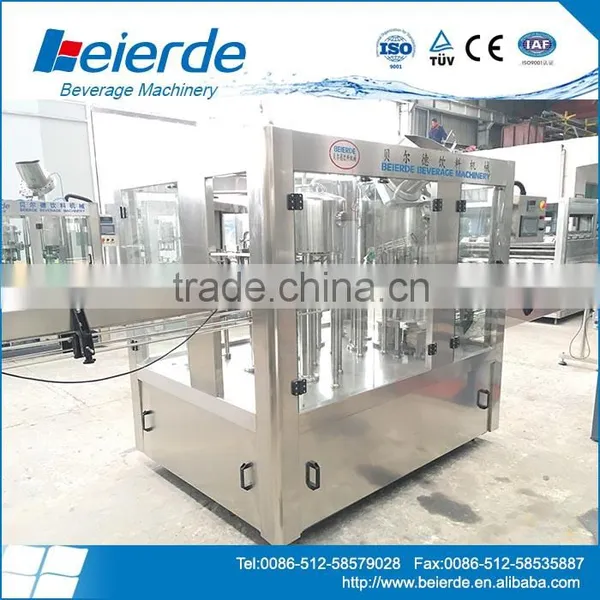

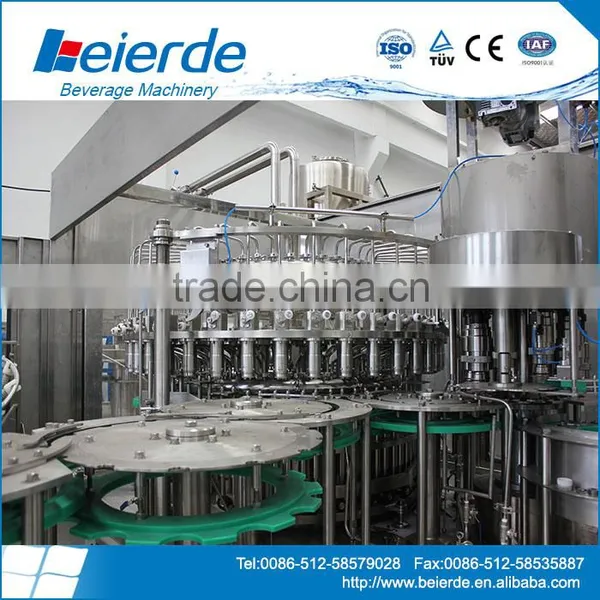

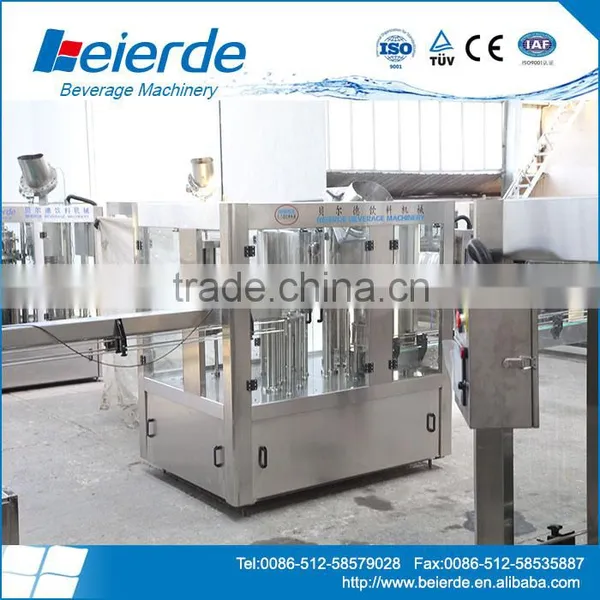

The series equipment is used for bottle rinser and hot filling and sealing 3-in-1 unit machine for green tea, black tea, wulong tea and fruit juice. And with only a few parts changed, the machine can also be used for mineral water or pure water drink filling.
The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
This series machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design, It's be satisfy for 95 degree hereinafter hot filling technology demand. It's adopted person-machine interface touch-screen, PLC, transducer etc advanced control technology. It's osculant the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products.
Features:
1) The machine has compact structure, complete control system, easy operation and high degree of automation.
2) The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3) The parts contacting media are made of 316L and have no process blind angles to enable easy cleaning.
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred.
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
7) The advanced programmed controller (PLC) is adopted to control the machine to run automatically.
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively.
9) Main electric components and pneumatic components are used the world famous brand products.
10) The machine's operation is controlled by an advanced touch-screen that can Fulfill human-machine communication.
Main Parameter:
Model: |
RCGF14/12/5 |
RCGF16/16/6 |
RCGF18/18/6 |
RCGF24/24/8 |
RCGF32/32/10 |
RCGF40/40/12 |
|
Capacity: 500ml(b/h) |
3000 |
5000 |
6000 |
8000 |
12000 |
14000 |
Suitable Bottle: |
150-340(mm) |
|||||
Suitable Cap: |
φ50-φ110 (mm) |
|||||
Filling Pressure: |
0.2-0.3(Mpa) |
|||||
Power (kw) |
|
|
|
|
|
|
Size : (mm) |
2400×1670×2350 |
2470×1970×2350 |
2865×2170×2350 |
3700×2570×2350 |
3800×2950×2400 |
4500×3400×2400 |
Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
8000 |
