Specifications
Juice Filling Machine1,Filling type:Juice,tea
2,Capacity:2000~24000bph
3,Bottle size:350ml~2L

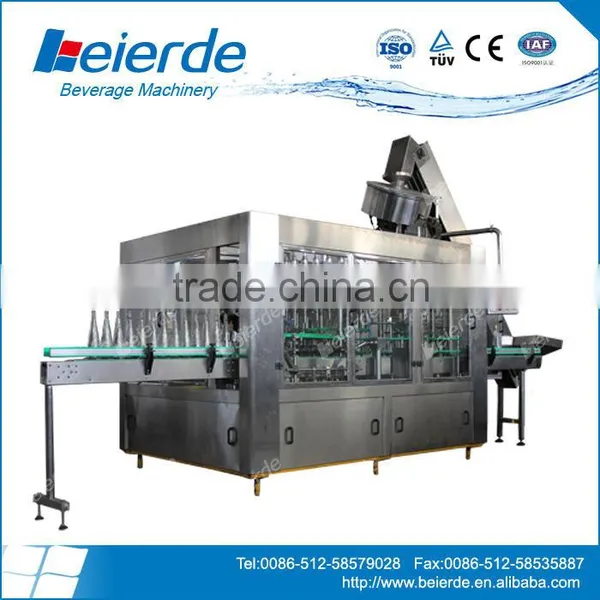

Juice Filling Machine
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically.
Technical parameters:
Technical Data | ||||
Model |
RCGF14125 |
RCGF18186 |
RCGF24248 |
RCGF32328 |
The number of Washing, Filling, Capping |
14-12-5 |
18-18-6 |
24-24-8 |
32-32-8 |
Producing capacity: |
3000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
Applicable bottle specifications (mm) |
H=170-320 |
Φ=50-100 |
|
|
Pressure ( MPa) |
0.25-0.3 |
|||
General power (kw) |
1.5+0.37 |
2.2+0.37 |
3+0.45+0.25 |
4+0.45+0.25 |
Overall dimension (mm) (L×W×H) |
2300×1680×2650 |
2500×1760×2650 |
3100×2100×2650 |
3800×2800×2650 |
Weight(kg) |
2600 |
3500 |
4800 |
6500 |
Technical Data | ||||||
Model |
RCGF404010 |
RCGF484812 |
RCGF606015 |
|||
The number of Washing, Filling, Capping |
40-40-10 |
48-48-12 |
60-60-15 |
|||
Producing capacity: |
16000-18000 |
20000-24000 |
24000-28000 |
|||
Applicable bottle specifications (mm) |
|
|
|
|||
Pressure ( MPa) |
0.25-0.3 |
|||||
General power (kw) |
7.5+0.45+0.25 |
7.5+0.45+0.25 |
11+0.45+0.25 |
|||
Overall dimension (mm) (L×W×H) |
4000×3300×3400 |
4850×3650×3300 |
6500×5400×3500 |
|||
Weight(kg) |
10 |
12 |
15 |
|||
