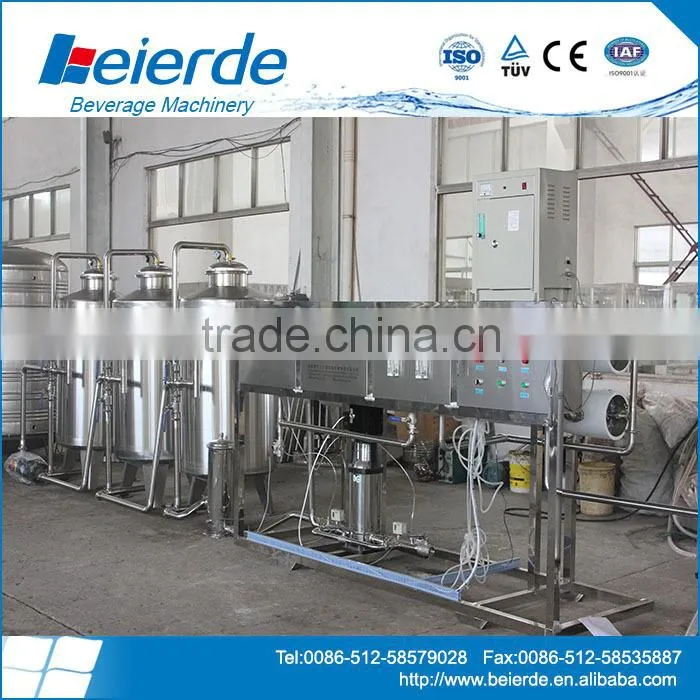

1. RO Water Treatment System of Beierde Brand Automatic Fruit Juice Filling Machine/juice filling machine cost
1.With high quality of super-low-pressure TFC compound RO membrance precise filter technique, the ability of getting rid of metallic ions can reach 99%. And with other filters, you can produce pure water conforming to the hygienic standard.
2.Active carbon can absorb chlorine residue 100%, protect RO membranes from damage, also gets rid of color and smell, improve the taste of pure water.
3.Water pressure protects system at all the pumps, connect the electricity source, open the water input value. When the pressure is lower than the rated voltage, the pump will stop automatically.
4. Making water soft if the hardness of original water, It will be prevent membranes from fouling and keep the flux of pure water.
5.The apparatus also has flocculants function, RO membranes stopping filth preparation, HP range regulator connected with the medicine-adding element, you can adopt any of them according to the water quality of your place.
6.With the electro conductivity monitor on the control panel, you can check the water quality at any time.
7.Safe and reliable electrical system design; With automatically flush of RO membrane. And with low-pressure-protecting system, the apparatus will start or stop according to the water level in the pure water tank connected with the apparatus.
2. Beierde Brand Automatic Fruit Juice Filling Machine/juice filling machine cost
According to new design conception of PET and Glass bottle juice filling technology requirement, BEIERDE Co, LTD designed and launched the lasted PET and Glass Bottle Juice filling machine, which can provide a complete and high efficient PET and Glass Juice filling processing solution.
- Juice filling machine is a specific design which combination of three mechanical part in terms of washing, filling and capping.
- This type Juice filling machine is applicable for PET and Glass bottles. The caps diameter is adapted from 26mm to 32mm. the maximum capacity is 20,000 Bottles per hour.
- This Model Juice filling machine consists of air conveyor, base conveyor, bottle evaluator and air compressor system.
- The concept design considers four factors with regard to ease of operation, ease of cleaning, low cost and good economical.
3. Advantages of Beierde Brand Automatic Fruit Juice Filling Machine/juice filling machine cost
- Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
- This machine has lubrication system in order to lubricated regularly in time.
- Wine jar and capping head are driven by electricity to fit different sizes of bottles.
- The material height in the tank is controlled by electric probe to assure the precise liquid level.
4. Equipments of Beierde Brand Automatic Fruit Juice Filling Machine/juice filling machine cost
- Fruit washer
- Crasher
- Beater
- Centrifuge
- Concentrated Juice Tank
- Sugar Melting Tank.
- Water Treatment System
- Vacuum maker
- Double-tank filter
- Homogenizer
- Ultra Heat Treated(UHT) or High Temperature Short Time(HTST) sterilizer
- Bottle-inverse sterilizer machine
- Cooler or Warmer
- Drying Machine
- Shrink Labeling Machine
- Code Printer
- Wrapping Shrink Machine
- CIP System
| Model | RCGF 8-8-4 | RCGF 14-12-5 | RCGF 18-18-6 | RCGF 24-24-8 | RCGF 32-32-10 | RCGF 40-40-12 |
| Capacity | 2500BPH | 4000BPH | 8000BPH | 10000BPH | 14000BPH | 18000BPH |
| Power | 2.2kw | 2.8kw | 2.8kw | 3kw | 5.5kw | 6.5kw |
| Overall Dimensions | 2300x1600x2300 | 2500x1600x2300 | 2800x1800x2300 | 3050x2060x2300 | 4050x2300x2300 | 4300x3300x2300 |
| Weight | 2800 | 3000 | 3600 | 4500 | 5500 | 6500 |

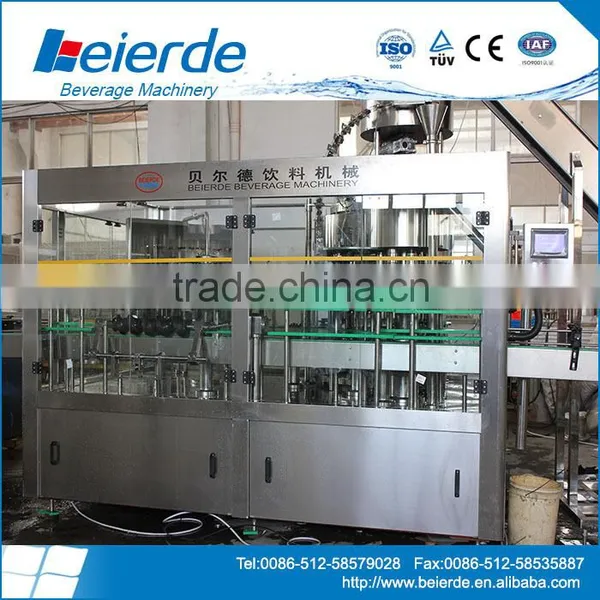

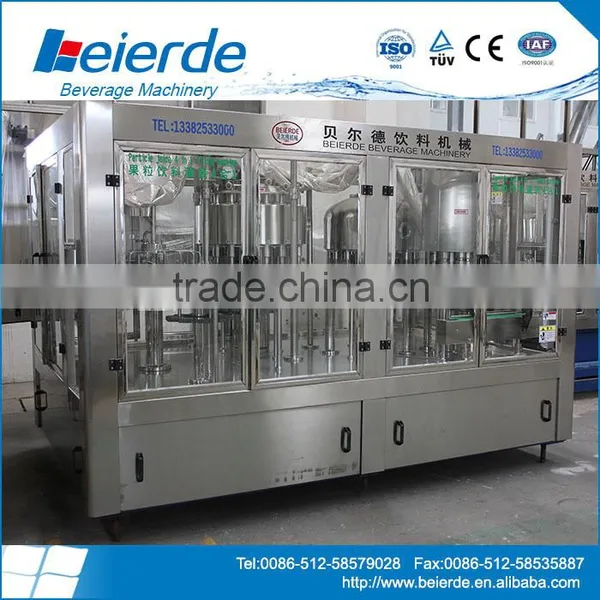

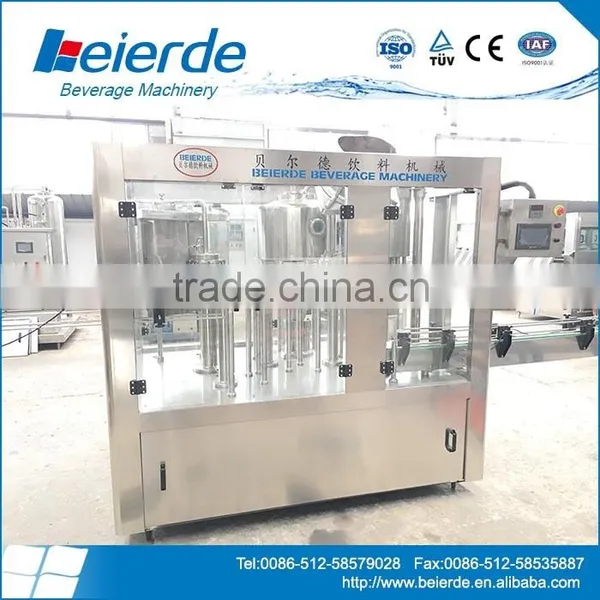

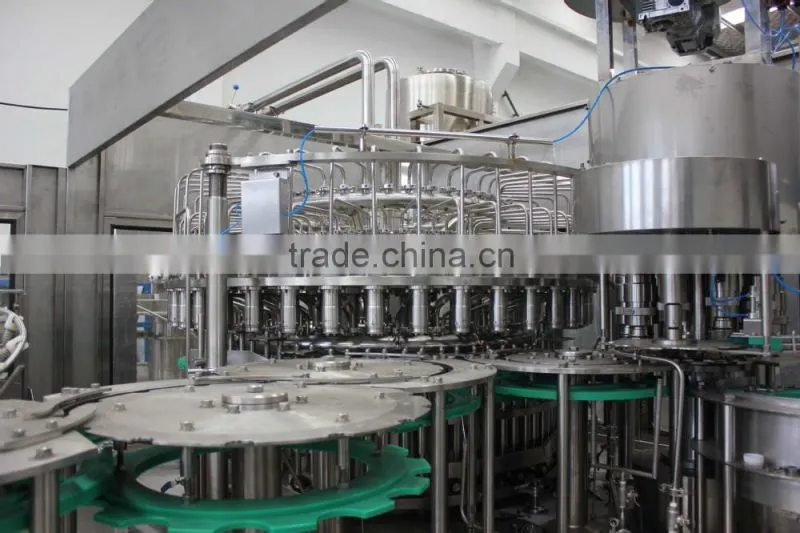

6. Rinsing, Filling and Capping Part of Beierde Brand Automatic Fruit Juice Filling Machine/juice filling machine cost

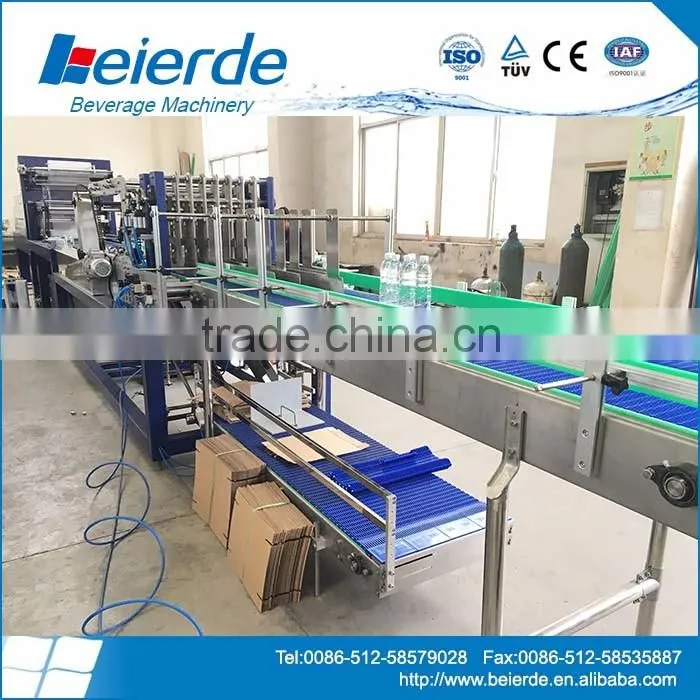

6. Automatic Wrapping machine with Carton Tray
7. Warming and Cooling Machine (Pasterisation)
How to enquiry and place an order?
Please write your request in email and the content as more as details you can, we would respond you within 24 working hours. In particular, bottle size (250ml-1500ml), bottle material (Glass bottle, PET bottle or pop top can) and production capacity are all significant.
- What kinds of beverage will you make?
- How many bottles per hour are you prefer?
- Bottle volume, Bottle material, bottle shape and the neck diameter of bottle?
- A single machine or a whole production line?
What is service BEIERDE Machinery Co.,Ltd to our customers?
- Any response within 24 hours
- Airport pick up service
- Excellent after sale service
- Hotel booking
