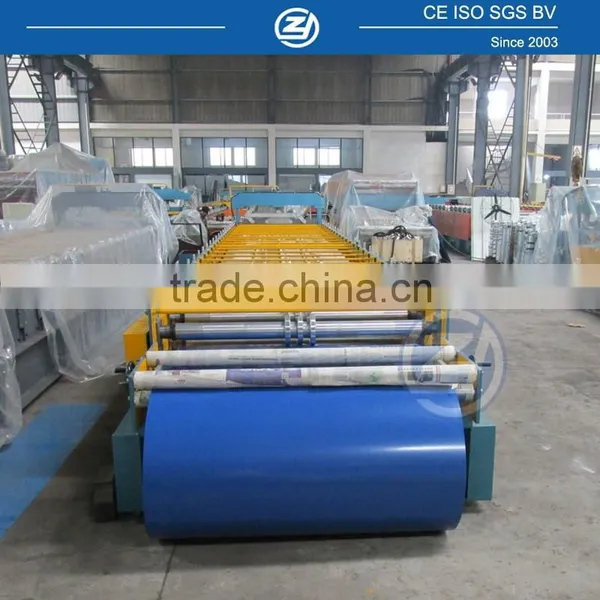

Steel Forming Machine, Corrugating Machine, Profile Rolling Machines
1. Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services

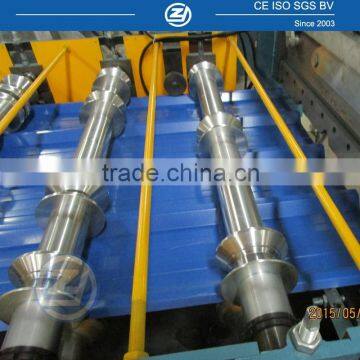

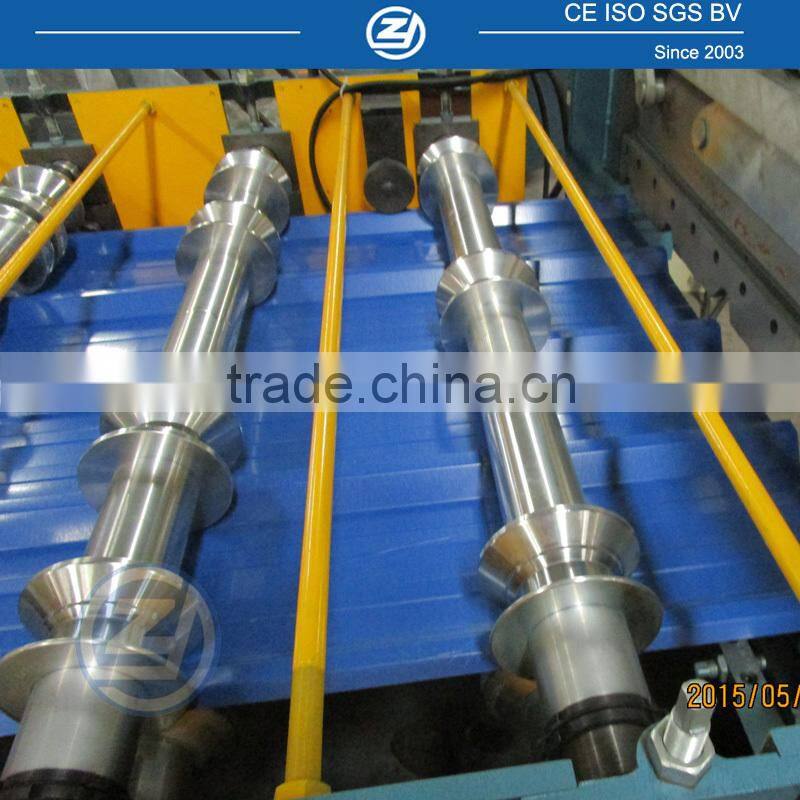

3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
7. Cr12 mould steel cutter with quenched treatment. Cutting blade with heat treatment.

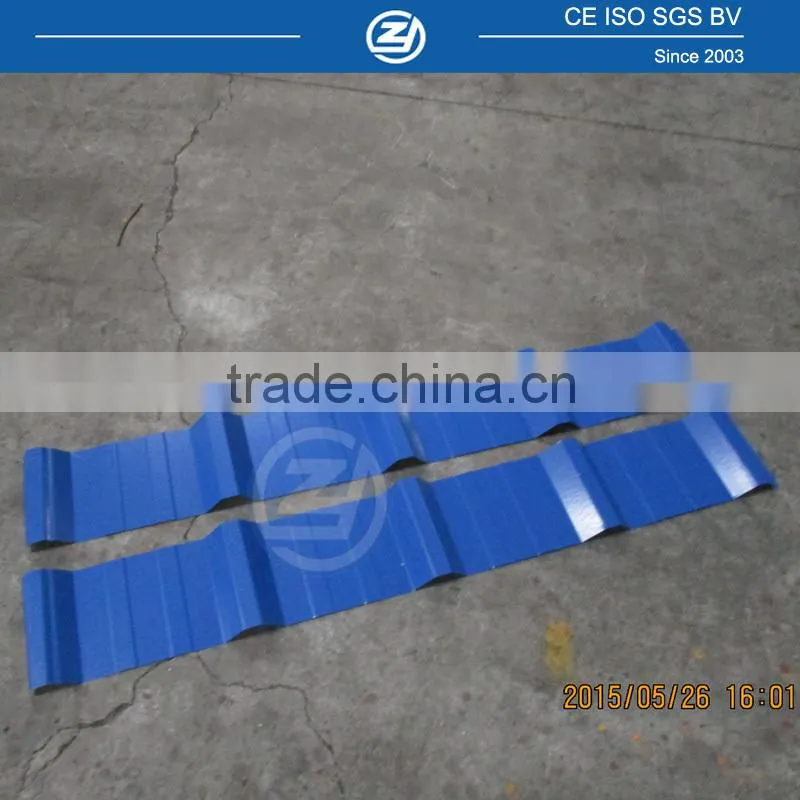

8. Product cut-to-length.
9.Technician overseas installing and training available
2. Technical Parameters of Steel Forming Machine, Corrugating Machine, Profile Rolling Machines
|
Steel Forming Machine, Corrugating Machine, Profile Rolling Machines | ||
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.3-0.7mm |
|
Yield strength |
550Mpa |
|
Roller material |
No.45 forged steel |
|
Forming speed |
About 20m/min |
|
Output speed |
10m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
7.5KW |
|
Total power |
9.7KW |
|
Shaft dia. |
72mm solid steel |
|
3. Compnents of Steel Forming Machine, Corrugating Machine, Profile Rolling Machines
|
Decoiler (manual/ hydraulic decoiler for option) |
1set | |
| Feeding & guiding device | 1set | |

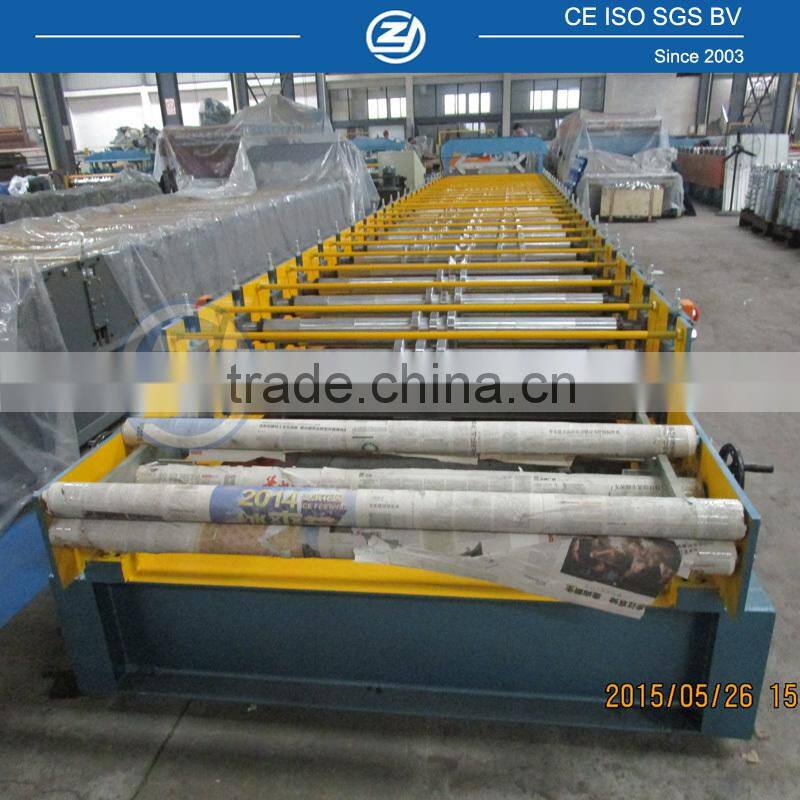

| Main roll forming machine | 1set | |

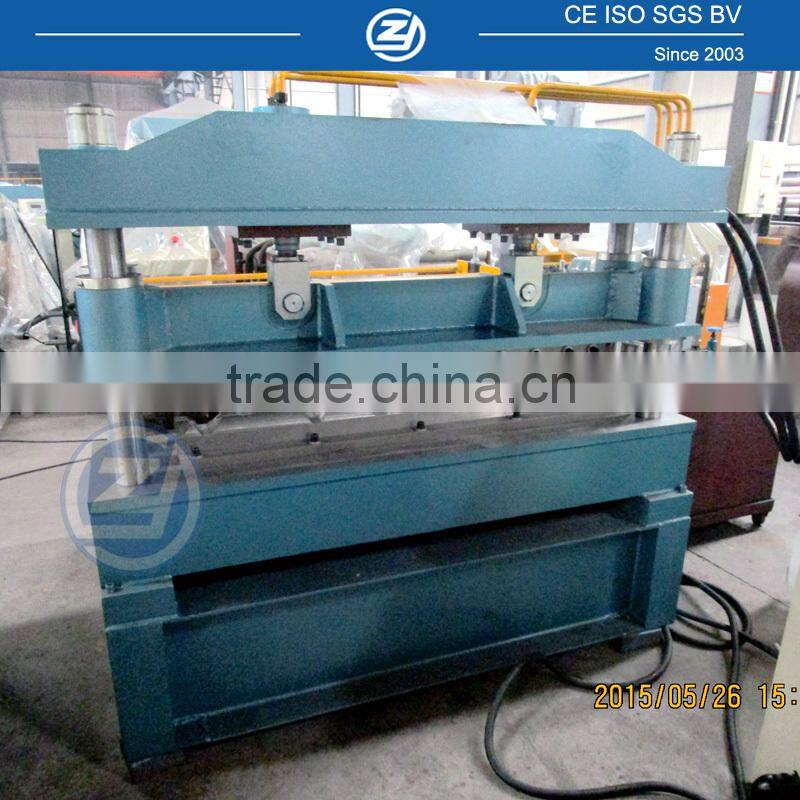

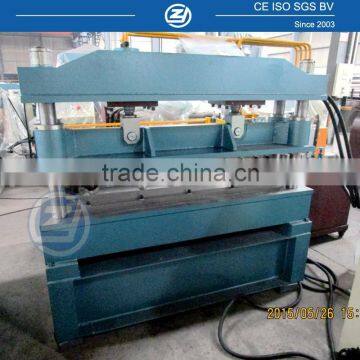

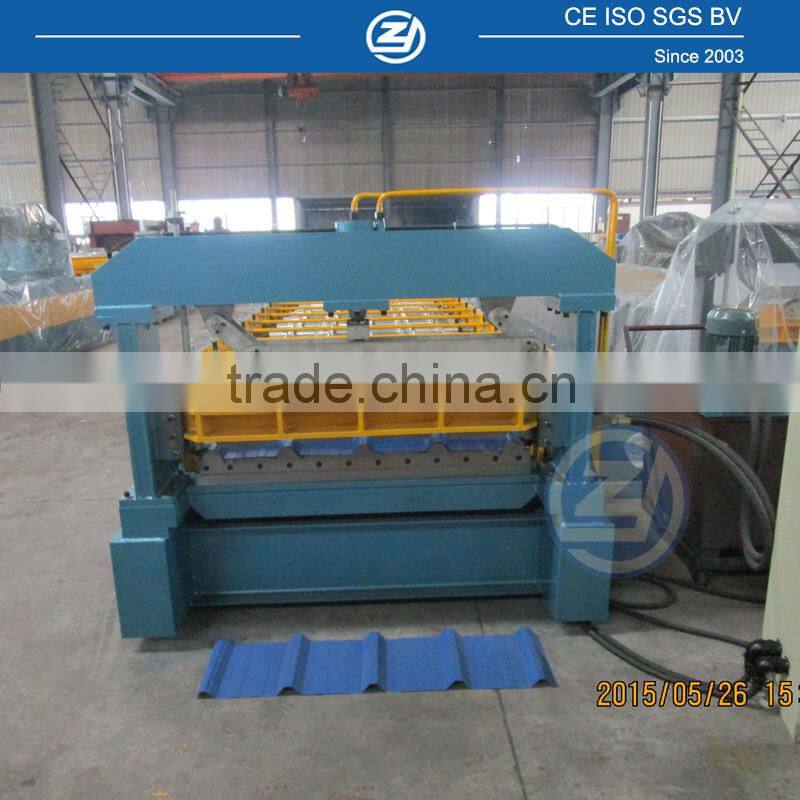

| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
|
Run out table (auto. Stacker for option) |
1.5m/ pc, 2 pcs | |
4. Process flow:

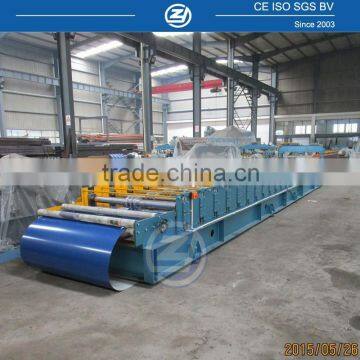

Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table
Steel Forming Machine, Corrugating Machine, Profile Rolling Machines
Crimping machine for option
We are professional in making roll forming machines since 2003.
1. Company occupies 6650, in which 5650 for workshops.
2. Capacity: 12-15 sets/month.
3. We are "All-in-house source" --from raw material to the final high-precision forming machine.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
