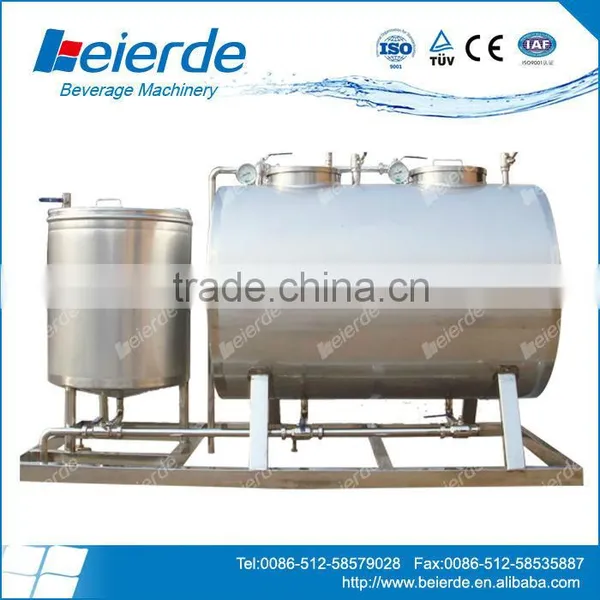

Automatic Cip Cleaning in Place System (CIP)
US$ 7,400 - 7,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Beierde
Payment & Shipping
Payment Methods:
Port of Shipment:
shang hai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ultra Temperature Instantaneous SterilizerNegotiableMOQ: 1 Set -
Pipe U. H. T Complete Set of Sterilizing EquipmentUS$ 2,320 - 2,400MOQ: 1 Set
-
System Of Sterilizatlon and Homoginization Plate Type PasteurizerUS$ 12,800 - 13,600MOQ: 1 Set
-
Tunnel Sterilizer/CoolerUS$ 15,000 - 20,000MOQ: 1 Set
-
RO Water Treatment EquipmentUS$ 2,500 - 2,800MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Beierde
Model Number
CIP
Voltage
380V
Power(W)
3kw
Weight
500KG
Dimension(L*W*H)
2200*800*1900
Processing Types
bottles
Certification
SGS
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Automatic Cip Cleaning in Place System is used to clean at site 2.of material pipe of the industries like milk products, juice Automatic Cip Cleaning in PlaceSystem is used to clean at site of material pipe of the industries like milk products, juice, beverage and etc.
A centrifugal pump is used in CIP to convey cleaning liquid into material pipe and equipment recipients to force the cleaning liquid to circulate to make cleaning without taking apart pipes or equipment. By this, capacity utilization rate of the machine can be improved and, at the same time, lessen intensity of labor.
| Working Pressure |
Inside tank: Normal Pressure, Inside Steam Pipe: 0.3-0.7Mpa |
| Working Temperature |
Inside acid tank, alkaline tank, water pipe, steam pipe: 60-138ºC |
| Product Name |
2% Acid and Alkaline Liquid, 2% Nitric Acid, Caustic Soda Liquid, Steam. |
| Centrifugal Pump Flux |
10T/h |
| Max. Centrifugal Head |
35m |
| Motor Power |
2.2kw |
| Dimension(L*W*H) |
3200*1600*2000mm |
| Weight |
980kg |
