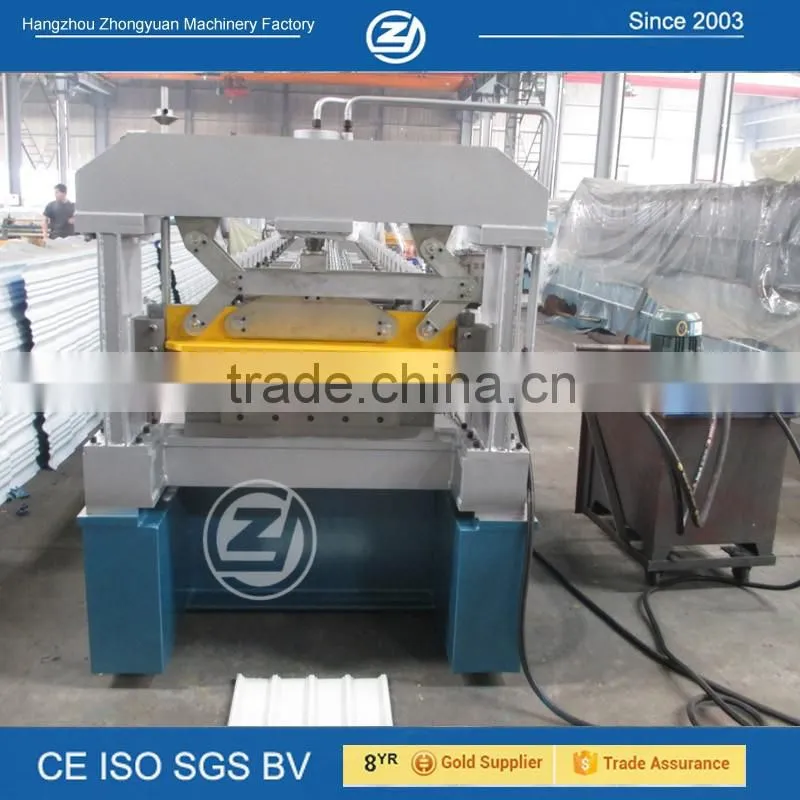

Steel roof roll forming machine with improved structure
Why choose this machine?
Certificate: ISO, CE,
Lifetime services
Control system: Mitsubishi PLC with touch screen.
Product cut-to-length.
Engineer overseas installing and training available
15 years skillful engneers to design and make your machines
1.Technical parameter:
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.25mm |
|
Yield strength |
235Mpa |
|
Roller material |
45#Chrome steel |
|
Forming speed |
20-25m/min |
|
Output speed |
about 12m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
5.5KW |
|
Hydraulic station motor power |
2.2 KW |
|
2. Components of machine:
Decoiler |
1set |
Feeding & guiding device |
1set |
Main roll forming machine |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |
The PLC controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Inside of PLC Controller for reference
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
