100-300mm Adjustable C Z Purlin Forming Machine
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | zhongyuan | |
| Model Number | ZYYX100-300 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

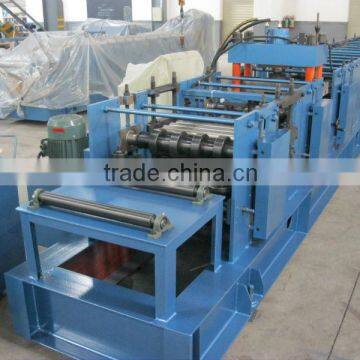

100-300mm Adjustable Z Purlin Forming Machine
Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 82mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1.Technical parameter of 100-300mm Adjustable Z Purlin Forming Machine
Item | Specification | |
Material | Type | Galvanized coils |
Thickness | 1.5-3mm | |
Yield strength | 235Mpa | |
Roller material | Cr12 mould steel | |
Forming speed | 10-15m/min | |
Output speed | 6-8m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power | 15KW | |
Total power | 20.5KW | |

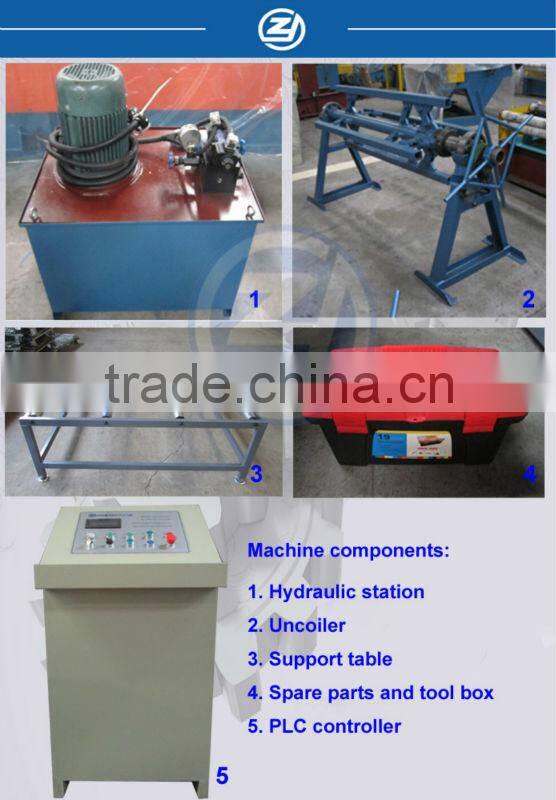

2. Main parts of 100-300mm Adjustable Z Purlin Forming Machine
| Decoiler | 1set | |
| Feeding & guiding device | 1set | |
| Pre-cutting device | 1set | |

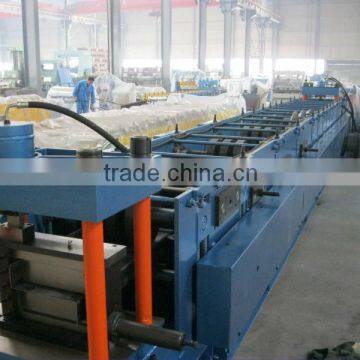

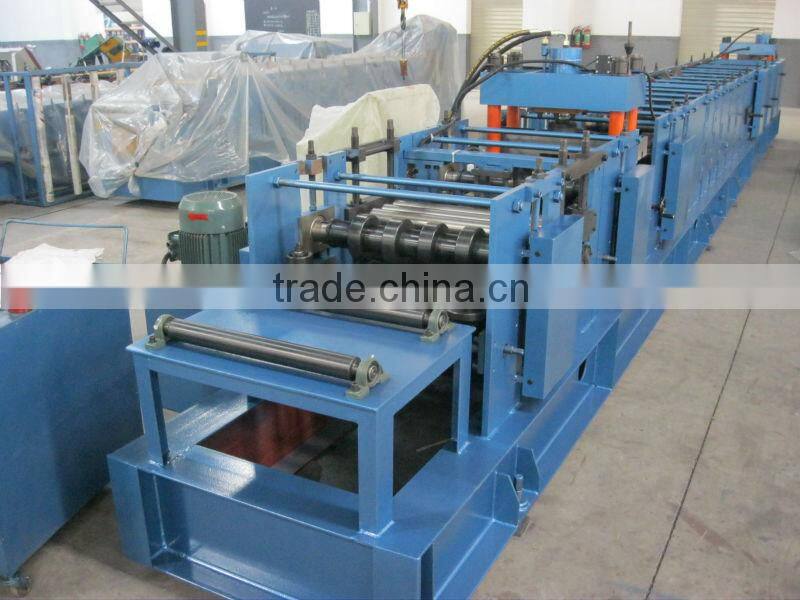

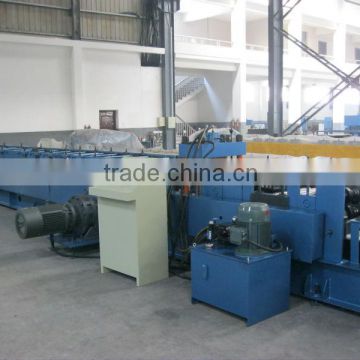

| Main roll forming machine | 1set | |
| Punching equipment | 1set | |
| Hydraulic cutting system | 1set | |
| PLC Controlling system | 1set | |
| Run out table | 1set | |

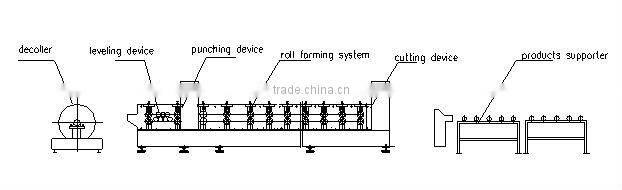

3. Working folw:

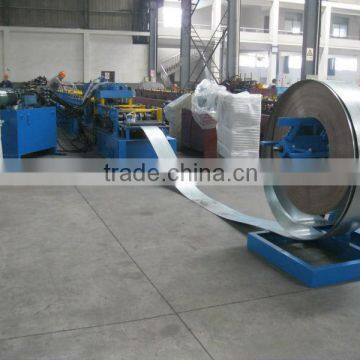

Decoiler--Feeding & Guiding--Leveling--Punching--Roll forming--Hydraulic cutting--Products to run out table
The PLC controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Inside of PLC Controller for reference

Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision. 82mm solid steel shafts; hard chrome covered rollers
What is the main process of our machine rolllers and shafts?

Why us?
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.


We customize your machines!
To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
How is our cooperation process?

Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
