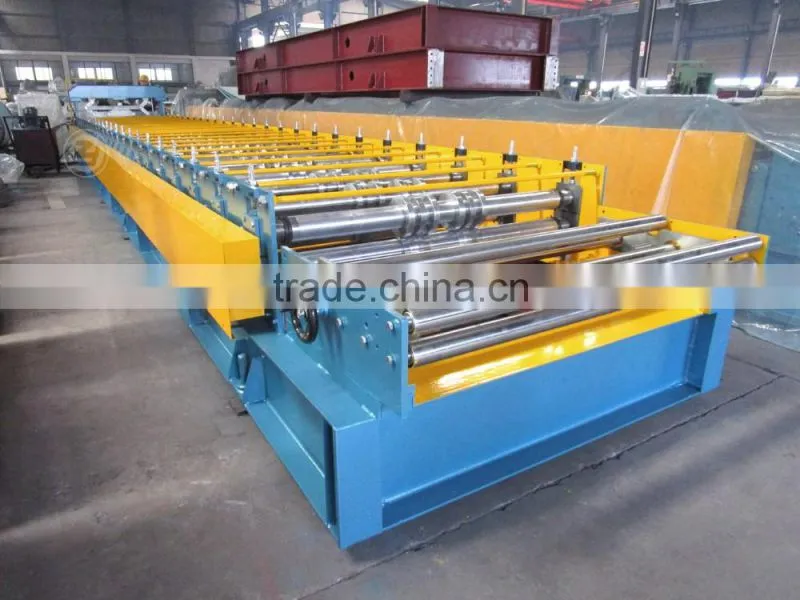

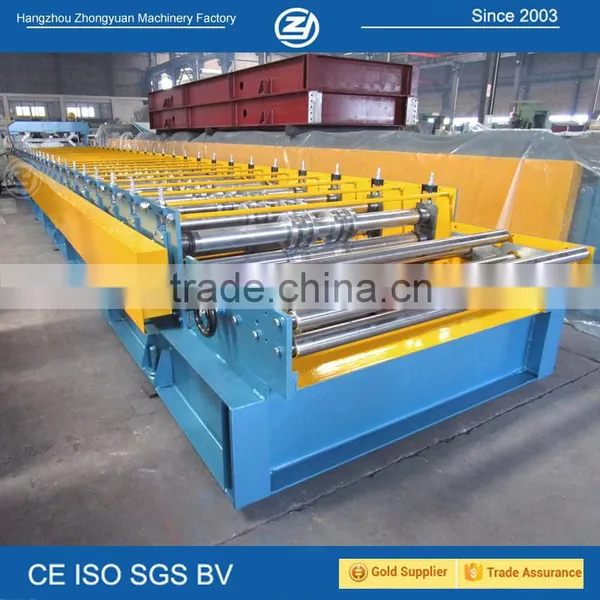

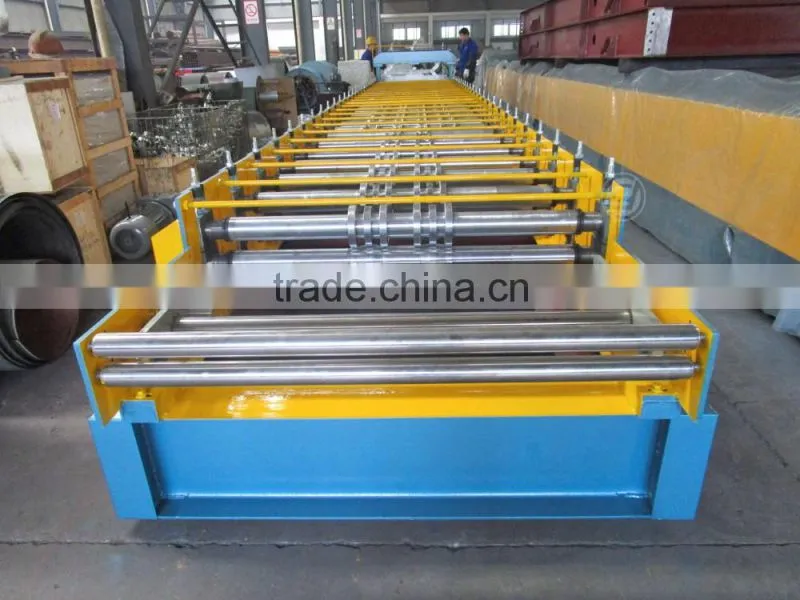

Iron Sheet Making Machine
More machine detail
1. Parameters
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.3-0.7mm |
|
Yield strength |
235-345Mpa |
|

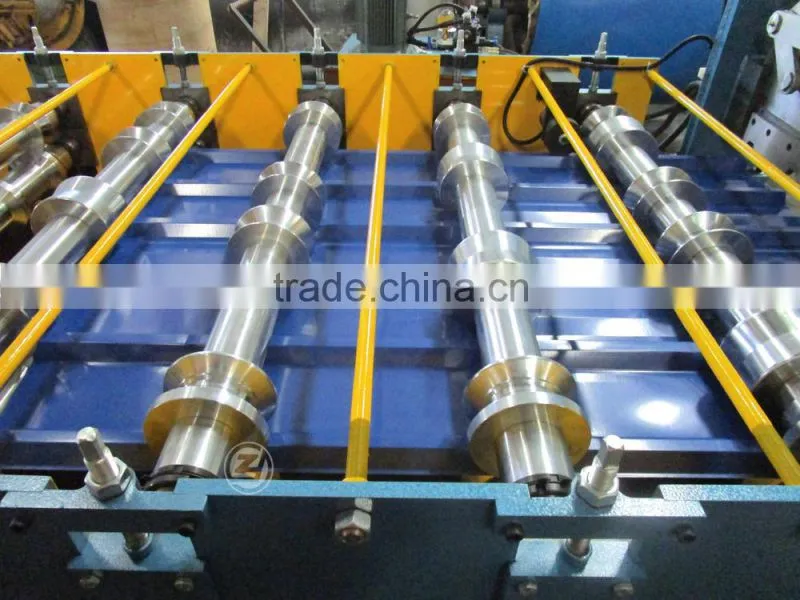

Roller material |
No.45 forged steel |
|
Forming speed |
About 20-25m/min |
|
Output speed |
8-12m/min |
|
Speed adjusting mode |
AC Frequency |
|

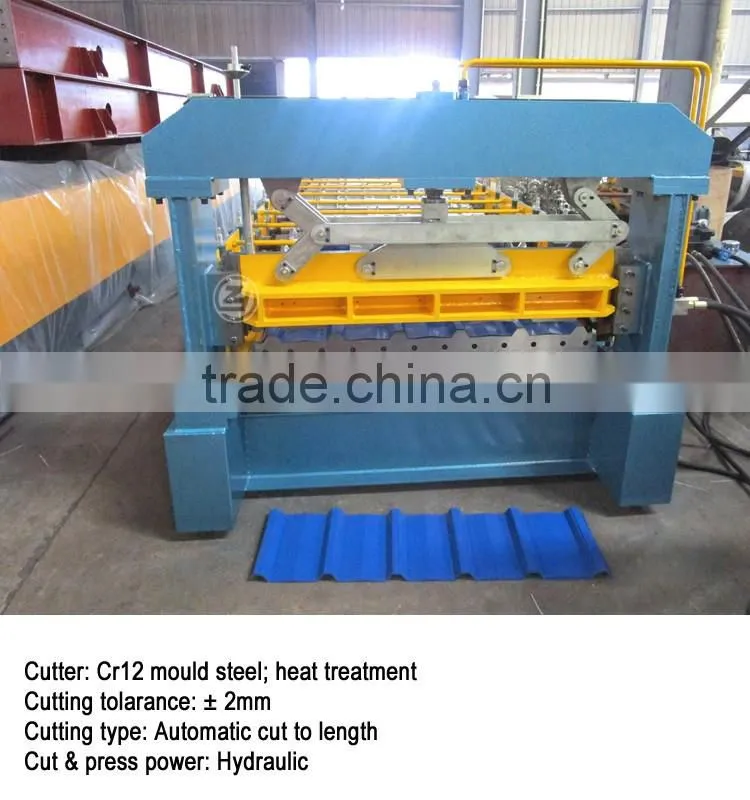

Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Main motor |
7.5KW |
|
Hydraulic station motor |
2.2KW |
|
2. Components of Roofing Machine
|
Decoiler (manual/ hydraulic decoiler for option) |
1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |

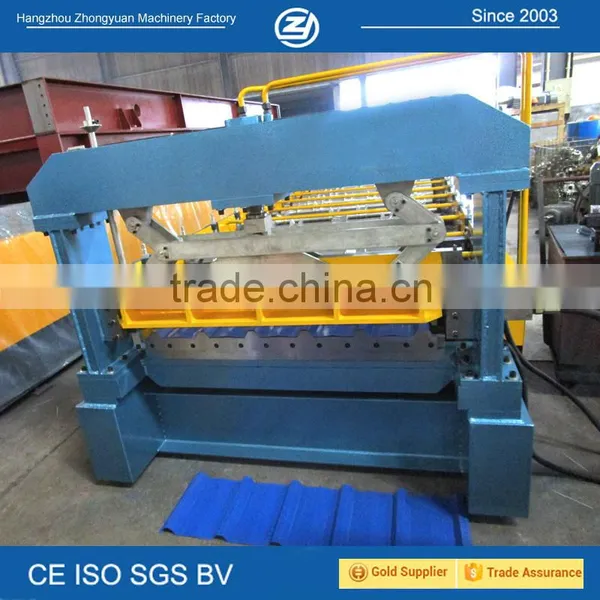

| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
|
Run out table (auto. Stacker for option) |
1.5m/ pc, 2 pcs | |
3. Process flow of Roofing Machine
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table
Produce Process
Addictional information:
| Production Capacity: | |
| Product Line Name | Production Line Capacity |
| Metal Roll Forming Machine | 150 Sets per year |
| Production Machinery: | ||
| Machine Name | Brand & Model No. | Quantity |
| Sawing machine | GB4240x60, GZK4235 | 6 |
| CNC manufacturing center | ETC3650, G-210 | 12 |
| Horizontal lathe | CW6180B | 14 |
| Milling machine | XT700D | 14 |
| Milling planer | BXM20 | 4 |
| Shaving machine | B665, B690 | 3 |
| Drilling machine | Z3050x16/1 | 3 |
| Grinding machine | ME1332A, M7160x20 | 7 |
| Testing Machinery: | |
| Machine Name | Quantity |
| Caliper | 20 |
| Micrometer | 15 |
| Depth ruler | 8 |
| Angle ruler | 6 |
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this metal roofing machines in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
