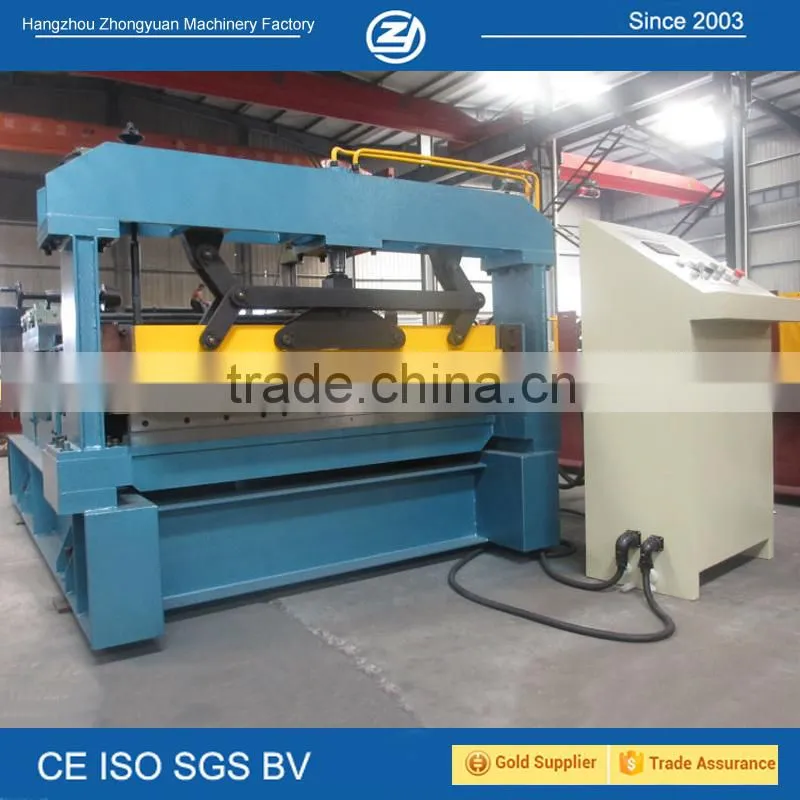

China PLC Control Steel Sheet Cutting Machine
Steel Sheet Cutting Machine
1.Technical parameter:
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil |
Thickness |
0.3-0.7mm |
|
Width of steel sheet |
Maximum 1250mm |
|
Yield strength |
235-345Mpa |
|
Cutter material |
Cr12 mould steel |
|
Numbers of Slitting blade |
6 pairs |
|
Working speed |
15times/min |
|
Type of cutting |
length-set cutting |
|
Size of machine |
2500mmX1700mmX1400mm |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Electric condition |
380V/3Phase/ 50HZ (or according to customers requirement) |
|
Main motor power |
4 KW |
|
Hydraulic station power |
2.2 KW |
|
2. Components of machine:
Decoiler |
1set |
Guiding device |
1set |
Leveling system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Cutter device |
1set |
Outputs table |
2 pieces |
3.Process flow:
Decoiling material→covering film →Guiding system →Cut to length
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this steel sheet cutting machine in stock?
A: No. this steel sheet cutting machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
