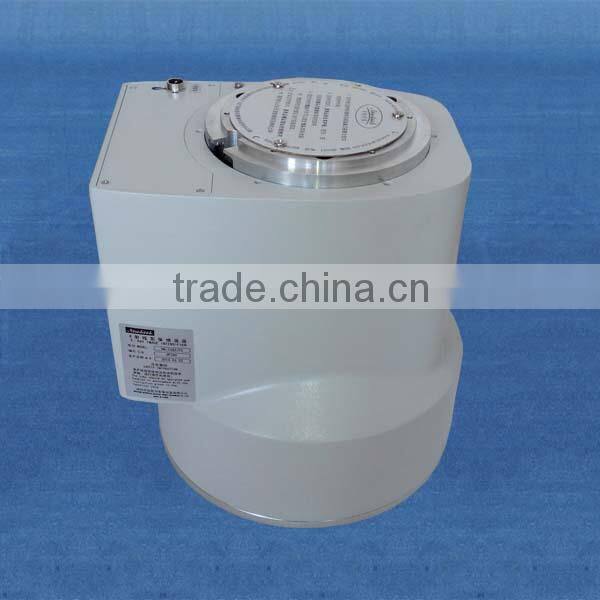

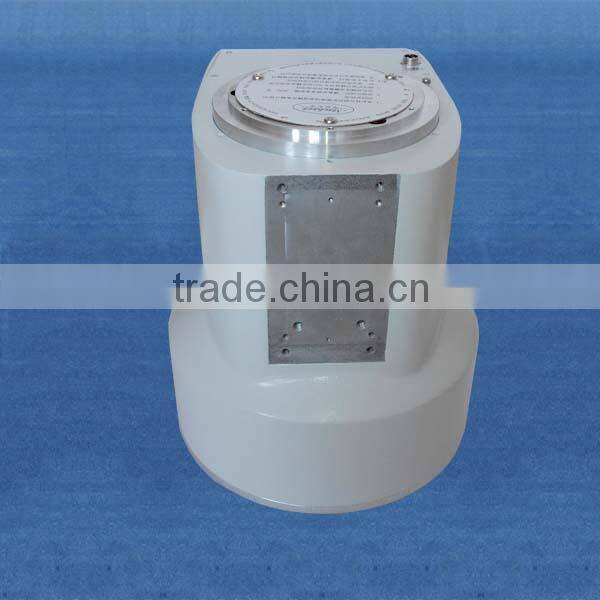

China Manufacturer Sell Low Price NK23XZ-I Digital X-ray Medical Image Intensifier

Specifications

                                                                                                                 X-ray  Image Intensifier
I. Brief Introduction:
It is the electronic output equipment which converts the x-ray image into the visible light image. It is installed on the x-ray TV system, which is applicable to the x-ray fluoroscopy and radiograph.
II. Construction:
It is composed of x-ray image multiplier tube, tube container, high voltage power supply (which is set inside of tube container) and low voltage power supply (which drives the high voltage power supply).
III. Application:
The nominal entrance field of view is 23cm (9inch), which is mainly application to C-arm, diagnosis radiograph and fluoroscopy x-ray machine, digital RF x-ray machine, lithotrity and industrial detection X-ray machines etc.
IV. Main Technological Parameters:
1. Photoelectric Performance:
(1) Input screen size: 230mm
(2) Effective entrance field of view size: 215mm
(3) Output image diameter: 20mm
(4) Limiting resolution: 52Lp/cm
2. Low Voltage Power Supply Performance Parameters:
(1) Input voltage: 86V~ 265V
(2) Input power supply frequency: 50Hz/60Hz
(3) Output voltage: 24V±0.5V
(4) Output current (effective value): 1.5A
3. Standard Configuration:
(1) 24V power supply box: 1 piece
(2) 24V power supply cable: 2 pieces
(3) Ground wire: 1 piece
(4) Image intensifier: 1 piece
(5) Service manual: 1 copy
(6) Quality Certificate: 1 copy

               Our company founded in 1999, Weifang Newheek Medical Equipment Co., Ltd is one of the  high technology medical X-ray equipment manufactures in the world. It is special engaged in the research, development, production and sale of medical image equipments. We not only professionally develop and produce all kinds of medical X-ray machines, but also provide the assortative X-ray image intensifier TV systems. At meantime, we carry on all kinds of medical equipments’ installation, adjustment and maintenance business, as well as carry on the technology consultation and allocation of the new and old machines. The whole enterprise makes full implementation of international GB/T19001-2000/ISO9001:2000 quality management system to ensure the product quality and sets the international sales service network. High technology with fine quality, good reputation with satisfied service introduce Newheek developing into a dazzling star in the medical equipment industry.

Taking the concept of protecting doctor far from radiation and seeking blessing for peoples’ health is our insistent management aim.
         Attention Creates Speciality is Newheek Spirit!

certificate

packing size:53.5*47*50cm
Packaging materials:carton

We are shipping this product by air and the freight free.
