Perspective Bed

X-ray operating table  Perspective bed

1、 Product Introduction:

The product performance structure and composition are electric push rod assisted transmission type, and the main material is carbon steel surface sprayed with plastic. The electric flat bed consists of three parts: the bed surface, the lifting column, and the bed frame. The two ends of the bed surface are electrically assisted to lift and move horizontally, and the bed frame is equipped with brake casters. The translation stroke of the bed surface is ≥ 300mm, and the lifting stroke of the bed surface is 200mm.

2、 Product scope of application:

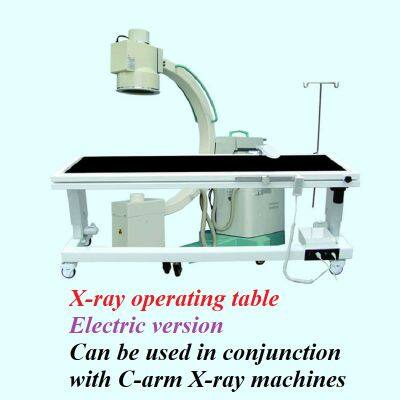

Suitable for orthopedic surgery, used in conjunction with X-ray imaging systems (C-arm) or other equipment, and can be used for general surgery. The two ends of the bed are controlled by electric push rods for lifting and lowering, allowing for arbitrary adjustment of the bed height. The bed is equipped with ultra quiet directional wheels with brakes, ensuring flexible movement and reliable fixation. The output power of the electric push rod is 24V, which is an international safe voltage.

3、 Product Technical Parameters:

Bed surface length: 2200mm,

Bed width: 600mm,

Bed height adjustment: 1000mm-800mm

Outer packaging volume: 2500x700mmx850mm.

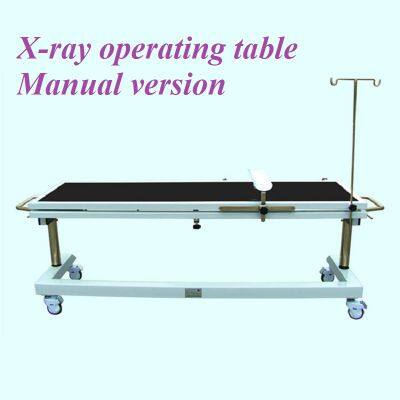

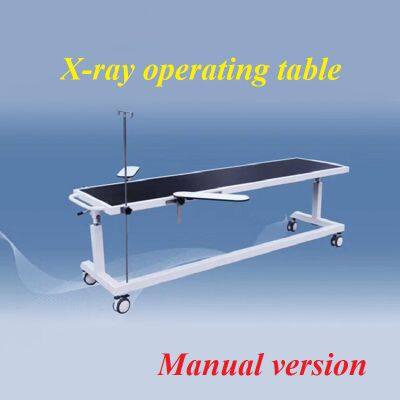

Divided into manual and electric models.
