Specifications
1.entrance field of view is 23cm (9inch).2.mainly application to C-arm, diagnosis radiograph and fluoroscopy x-ray machine
Newheek NK-23XZ-I Image Intensifier:
I. Introductioin:
Newheek NK-23XZ-I image intensifier is the electronic output equipment which converts the x-ray image into the visible light image. It is installed on the x-ray TV system, which is applicable to the x-ray fluoroscopy and radiograph.
II. Construction:
It is composed of x-ray image multiplier tube, tube container, high voltage power supply (which is set inside of tube container) and low voltage power supply (which drives the high voltage power supply).
III. Application:
The nominal entrance field of view is 23cm (9inch), which is mainly application to C-arm, diagnosis radiograph and fluoroscopy x-ray machine, digital RF x-ray machine, lithotrity and industrial detection X-ray machines etc.
IV. Main Technological Parameters:
1. Photoelectric Performance:
(1) Input screen size: 230mm
(2) Effective entrance field of view size: 215mm
(3) Output image diameter: 20mm
(4) Limiting resolution: 52Lp/cm
2. Low Voltage Power Supply Performance Parameters:
(1) Input voltage: 86V~ 265V
(2) Input power supply frequency: 50Hz/60Hz
(3) Output voltage: 24V±0.5V
(4) Output current (effective value): 1.5A
V. Standard Configuration:
(1) 24V power supply box: 1 piece
(2) 24V power supply cable: 2 pieces
(3) Ground wire: 1 piece
(4) Image intensifier: 1 piece
(5) Service manual: 1 copy
(6) Quality Certificate: 1 copy
VI. Product show:
I. Carton size: 53.5cm×47cm×50cm, NW 20kg, GW26kg.
II. Shippment: by express DHL, UPS, TNT; by air
III. Delivery period: within 3 days after receiving the payment.
After-sale service with technological support is available
Abot us:
Weifang Newheek Medical Image Equipment Co.,Ltd.is the manufacturer who has his own production line of x ray image intensifier which can be alongside Toshiba,Philips,Siemens and Thales.Weifang Newheek Medical Image Equipment Co.,Ltd.and Weifang Newheek Electronic Technology Co.,Ltd. is brother company.We have got the certificate of ISO9001 & ISO13485.Our main products are image intensifiers,digital image workstaion systems which have exported to many countries in the world.Our high quality,excellent service and your satisfaction is our eternal pursuit.

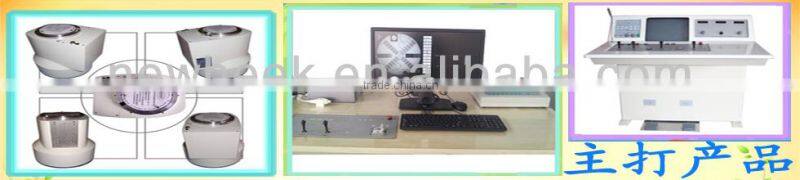

I.Featured products:
II.Expo exprience:
III.Certificate:
ISO9001:2008 Certificate:
ISO13485:2003 Certificate:
Weifang Newheek Medical Image Equipment Co.,Ltd.
Weifang Newheek Electronic Technology Co.,Ltd.
Address:No.13426 of Yuqing East Street, Weifang, Shandong, China
http:
contact: sherry wang salesman
Mobile: +86 15263606282
