Stainless Steel Tri Clamp Sanitary Spool

1. Gold member and trade assurance by Alibaba group

2. Manufacter with senior engineer who could give professional advises on filtration

3. Drawings with detailed dimensions available

4. Design calculation, Material cert, Pressure test, QC report, Dimension report available

5. No MOQ Requirement

    sanitary spool is widely used in extraction systems as well as brewery and winery industries.

Our tri clamp spool have mainly three type

1.      Pipe spool with tri clamp ferrule at both ends.

2.      Pipe spool with one end tri clamp ferrule and one end welded

3.      stainless steel jacketed sanitary spools

 The pipe size of sanitary spool from 1" to 12", Length available from 6" to 48" All the pipes is mirror polished inside to meet the food grade application

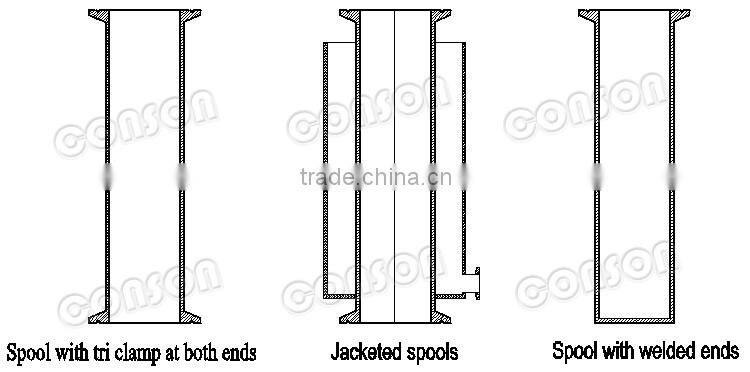

Three types of tri clamp sanitary spool

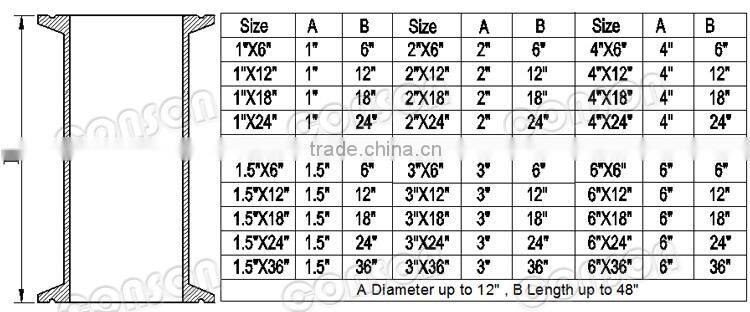

tri clamp spool model sheet
