304 and 316 Stainless Steel High Speed Dispersion Mixer

304 and 316 Stainless Steel High Speed Dispersion Mixer thumbnail-1
304 and 316 Stainless Steel High Speed Dispersion Mixer photo-1
US$ 500 - 5,700 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Shampoo
Contact Supplier Request Quote Chat Now
Wenzhou Kosun Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Homogenizer
Product Type Shampoo
Application Liquid with Suspended Solids
Additional Capabilities Milling
Place of Origin Zhejiang, China
Brand Name CONSON
Model Number CSIM3-200
Voltage 220/380
Power(W) 1.5-55kw
Dimension(L*W*H) 1.5*1*1
Certification ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

304 or 316 stainless steel high speed dispersion mixer
High shear force 2900RPM
Good Mixing and emulsifying

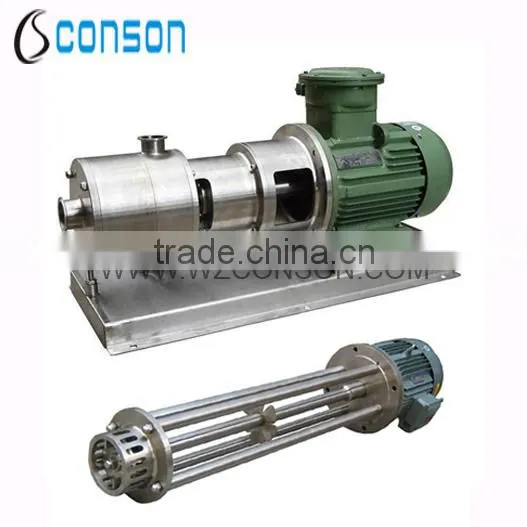

304 and 316 Stainless steel high speed dispersion mixer

  Our high speed dispersion mixer incluing inline mixer and bacth mixer.

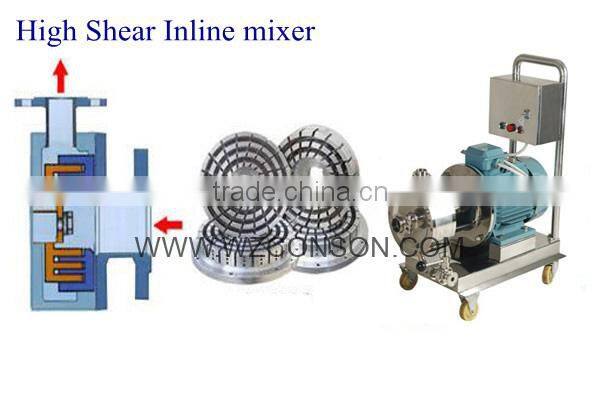

  Inline high shear mixer is also call mixing pump and could be installed in a pipe line,

  Batch high shear mixer is working as a agitator installed into a tank.

  Batch high shear mixer is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The mixing head is a pair of stainless steel rotor and stator. When the rotor rotate with a high speed (around 2900Rpm), The stator keeps still, Then generate a high shear forces.

  Inline high shear mixer has similar work theory with batch high shear mixer, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion.

   Our high speed dispersion mixer could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc.

Data sheet of high speed dispersion mixer

Pump head material: 304 or 316 stainless steel
Pump Seal: Double mechanical seal
Motor: ABB motor 2900RPM
Application Liquid and liquid mixing, Such as Fruit juice, checmical, desiel and water, oil etc

Model sheet of batch high speed dispersion mixer

Model Power(kw) Speed(RPM) Length(mm) Capacity(L)
BRH-80 1.1 2800 350 10-40
BRH-90 1.5 2800 350 10-50
BRH-100 2.2 2800 650 50-100
BRH-120 3 2800 750 100-200
BRH-120A 4 2800 750 100-300
BRH-140 5.5 2800 900 200-600
BRH-140A 7.5 2800 900 200-800
BRH-160 11 2800 1050 500-1500
BRH-180 18.5 2800 1200 600-2000
BRH-200 22 2800 1200 800-2500
BRH-220 30 1400 1355 1000-3500
BRH-240 45 1400 1395 1500-5000
BRH-270 55 1400 1600 2000-8000
BRH-290 75 1400 1650 3000-10000

Model sheet of Inline  high speed dispersion mixer

Single stage inline mixer(pump)
Model Power(kw) Speed(RPM) Capacity              (1000L/Hour)
BRL1-60 1.5 2800 0-1.5
BRL1-100 2.2 2800 0-3
BRL1-130 4 2800 0-4
BRL1-140 5.5 2800 0-5
BRL1-165 7.5 2800 0-8
BRL1-180 11 2800 0-12
BRL1-185 15 2800 0-18
BRL1-200 22 2800 0-25
BRL1-210 30 2800 0-35
BRL1-230 45 2800 0-50
BRL1-245 55 2800 0-75
BRL1-260 75 2800 0-90
BRL1-275 90 2800 0-110
BRL1-280 132 2800 0-130
Three stage inline mixer(pump)
Model Power(kw) Speed(RPM) Capacity              (1000L/Hour)
BRL3-60 4 2800 0-4
BRL3-100 7.5 2800 0-8
BRL3-120 11 2800 0-12
BRL3-140 15 2800 0-18
BRL3-165 22 2800 0-22
BRL3-200 37 2800 0-30
BRL3-220 55 2800 0-40
BRL3-240 75 2800 0-55
BRL3-260 90 1480 0-65
BRL3-300 110 1480 0-80
BRL3-360 132 1480 0-100
BRL3-380 160 1480 0-120
BRL3-400 185 1480 0-140

304 and 316 Stainless steel high speed dispersion mixer

304 and 316 Stainless steel high speed dispersion mixer304 and 316 Stainless steel high speed dispersion mixer

304 and 316 Stainless steel high speed dispersion mixer

Except for producing our standard products, We also have profession engineering term who could design according to your needs.

304 and 316 Stainless steel high speed dispersion mixer

1. Q: Does your company have any MOQ of your products?

   A: No, We do not have MOQ requirement, For small orders we could deliver by courier.

2. Q: Does your company accept no-standard (customized) products?

   A: Sure, As soon as you could provide drawings or details.

304 and 316 Stainless steel high speed dispersion mixer

Our standard packing is plywood case,

Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea

Price Term including: EXW, FCA, FOB, CIF.
