Specifications
304 or 316 stainless steel inline mixerHigh shear force 2900RPM
Good Mixing and emulsifying

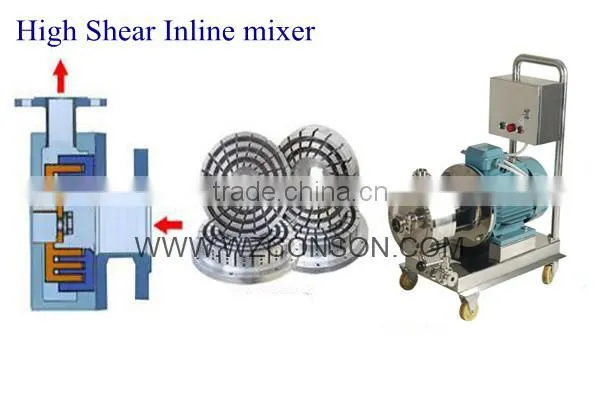

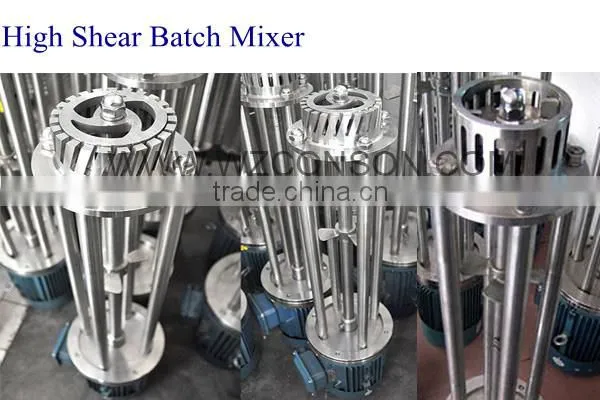

inline mixer has similar work theory with batch high shear emulsifier, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion.
inline mixer could also be fixed on pipeline to do continuous work. The standard components are pump chamber, rotor and stator.Inline emulsifier is applied to emulsify and disperse kinds of liquids continuously, transmits low viscosity material and mix powder and liquid. It is widely used in the field of Daily, Beverage, food, Pharmacy, Chemical industry etc.
There are two type of inline mixer, Single stage and three stage. Singe stage mixer is composed of 1 set of rotor and stator. Three stage is composed of 3 sets of rotor and stator
Data sheet of inline mixer
| Pump head material: | 304 or 316 stainless steel |
| Pump Seal: | Double mechanical seal |
| Motor: | ABB motor 2900RPM |
| Application | Liquid and liquid mixing, Such as Fruit juice, checmical, desiel and water, oil etc |
Model sheet of inline mixer
| Single stage inline mixer(pump) | |||
| Model | Power(kw) | Speed(RPM) | Capacity (1000L/Hour) |
| BRL1-60 | 1.5 | 2800 | 0-1.5 |
| BRL1-100 | 2.2 | 2800 | 0-3 |
| BRL1-130 | 4 | 2800 | 0-4 |
| BRL1-140 | 5.5 | 2800 | 0-5 |
| BRL1-165 | 7.5 | 2800 | 0-8 |
| BRL1-180 | 11 | 2800 | 0-12 |
| BRL1-185 | 15 | 2800 | 0-18 |
| BRL1-200 | 22 | 2800 | 0-25 |
| BRL1-210 | 30 | 2800 | 0-35 |
| BRL1-230 | 45 | 2800 | 0-50 |
| BRL1-245 | 55 | 2800 | 0-75 |
| BRL1-260 | 75 | 2800 | 0-90 |
| BRL1-275 | 90 | 2800 | 0-110 |
| BRL1-280 | 132 | 2800 | 0-130 |
| Three stage inline mixer(pump) | |||
| Model | Power(kw) | Speed(RPM) | Capacity (1000L/Hour) |
| BRL3-60 | 4 | 2800 | 0-4 |
| BRL3-100 | 7.5 | 2800 | 0-8 |
| BRL3-120 | 11 | 2800 | 0-12 |
| BRL3-140 | 15 | 2800 | 0-18 |
| BRL3-165 | 22 | 2800 | 0-22 |
| BRL3-200 | 37 | 2800 | 0-30 |
| BRL3-220 | 55 | 2800 | 0-40 |
| BRL3-240 | 75 | 2800 | 0-55 |
| BRL3-260 | 90 | 1480 | 0-65 |
| BRL3-300 | 110 | 1480 | 0-80 |
| BRL3-360 | 132 | 1480 | 0-100 |
| BRL3-380 | 160 | 1480 | 0-120 |
| BRL3-400 | 185 | 1480 | 0-140 |
Except for producing our standard products, We also have profession engineering term who could design according to your needs.
1. Q: Does your company have any MOQ of your products?
A: No, We do not have MOQ requirement, For small orders we could deliver by courier.
2. Q: Does your company accept no-standard (customized) products?
A: Sure, As soon as you could provide drawings or details.
Our standard packing is plywood case,
Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea
Price Term including: EXW, FCA, FOB, CIF.
