manual butterfly valve could be offered with Clamp end, Weld end, Male end, female end. With handle of 4 position, 12 position, It could be also equiped with pneumatic and electric drives. manual butterfly valve body and disk are all made from full CNC machined, high polished that demanded with the high quality in the developed country around the world.
EPDM, Silicon, Viton seats are available, making our butterfly valve for food industry suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
| manual butterfly valve Parameters | |||
| Material | 304SS; 316(L)SS | ||
| Connection Standard | SMS,DIN,3A,ISO | ||
| Connection Type | Welding ends, Clamp, Union, Flanged | ||
| Size | DN15-DN150, 1/2"-6" | ||
| Gasket | EPDM/Silicone/Viton | ||
| Drive method | Manual, pneumatic, electrical | ||
| Handle | 12 Position; 4 Position | ||

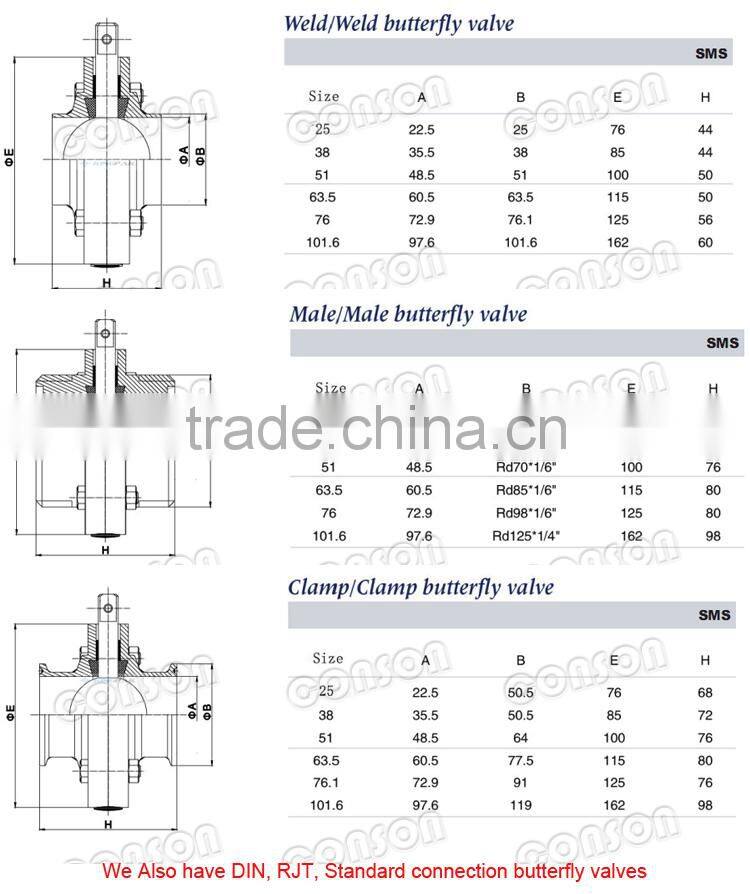

Butterfly valve data sheet
