1000l Stainless steel beer steam jacketed whirlpool brew kettle
Please contact us with your specification of the stainless steel tank you want, Our engineering team will give you the best solutions and drawings to confirm the design, We provide excellent finish tanks, all weldings ground smoth to meet the highest requirement for food grade application.
Our products range including whole brewing system , Fermenter tank, Jacket kettle ,mash tun ,with high or low pressure, Jacketed or Non jacketed.
stainless steel Brew Kettle / Whirlpool Tank
Micro Brewing equipment including :Brew kettle ,mash tun ,hot liquid tank ,
Brew kettle description:
.Constructed of 304 stainless steel or SUS316L
. Bottom spent grain manway
. Side entry vorlauf inlet
. Polished stainless steel pipe leg & adjustable feet
.PU insulation cladding for the thermal keeping
Upper and lower steam jackets w/ independent valve control
SS CIP spray ball with 360° of coverage.
Our company also can produce the tank according customer’s design or suggestion .OEM service is available for you
Brew Kettle / Whirlpool Tank parameters | |||||
Capacity(liter) | Diameter *Height(mm) | inlet(mm) | Outlet(mm) | PU insulation( mm) | Manhole size (mm) |
500 | 800 x800 | 38 | 38 | 50 | 440x320 |
1000 | 1000x1200 | 38 | 38 | 50 | 440x320 |
1500 | 1100x1400 | 38 | 38 | 50 | 550x430 |
2000 | 1200x1500 | 38 | 38 | 50 | 550x430 |
3000 | 1400x1700 | 51 | 51 | 50 | 550x430 |
4000 | 1500x2100 | 51 | 51 | 50 | 550x430 |
5000 | 1600x2200 | 51 | 51 | 50 | 550x430 |
6000 | 1700x2200 | 51 | 51 | 50 | 550x430 |
8000 | 1800x2700 | 51 | 51 | 50 | 550x430 |
10000 | 2000x2800 | 51 | 51 | 50 | 550x430 |

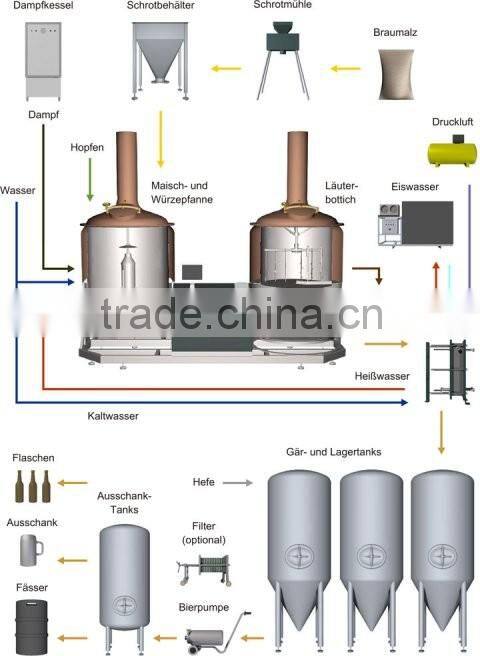

Other Brewing equipment we can offer as following:
Main items | Main machine |
Malt milling system | Double rollers malt miller machine |
Mash system | Mash tun/kettle boiler, lauter tun/whirlpool tun, wort pump, Mirror polishing Mechanical agitation: Stirring moter adopts variable frequency stepless speed control, improve wort preparation time. |
Fermenting system | Fermentation tank, inner tank adopts international standard food grade SUS.304 All welding us double-sided welding argon gas protection, double-sided forming can improve the weld ability if under pressure. Mirror polishing |
Heating system | Electric heating/ steam heating/ direct fire heating |
Control system | Control cabinet, touch screen. Simens /LG PLC control |
Chiller system | Ice water tank, cold water tank and pumps, plate heat exchanger, chiller |
Filter system (Opional) | Membrane filtration or plate filter machine or Diatomite filter |
Storage system (Customized) | Beer bright tank, beer storage tank |
Cleaning system | CIP cleaning system, include alkali tank and disinfection tank, cleaning pump. Cleaning ball: internal comprehensive cleaning, improve the quality of internal cleaning. |
Filling system (Opional) | Manual and automatic bottle filling line, keg filler and washer machine |
