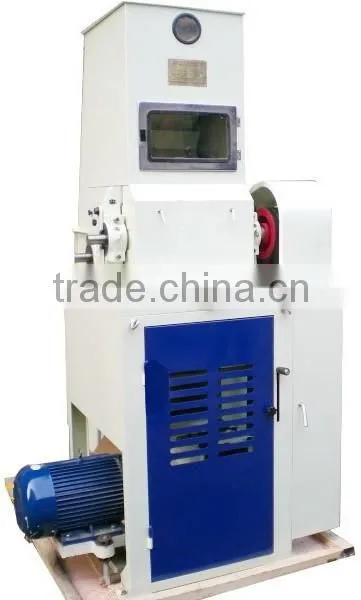

MLGT series Rubber roller Husker
Technology Features
This series husker is mainly for exuviating and separating, It can shift by gearbox, and the new rubber roller is not need to download after using up, rigorous structure, has characters of no leaking of paddy, fine function and convenient knocked-down rubber roller.
Technical Parameter
Item |
MLGT25 |
MLGT36 |
MLGT51 |
MLGT63 |
Capacity(t/h) |
2.0-3.0 |
4.0-5.0 |
6.0-7.0 |
6.5-8.5 |
Air volume(m3/h) |
3300-4000 |
4000 |
4500-4800 |
5000-6000 |
Power(kw) |
5.5 |
7.5 |
11.0 |
15.0 |
Net weight(kg) |
500 |
700 |
850 |
1200 |
Dimensions |
1200×961×2112 |
1248×1390×2162 |
1400×1390×2219 |
1480×1450×2270 |
MLGT25 MLGT36

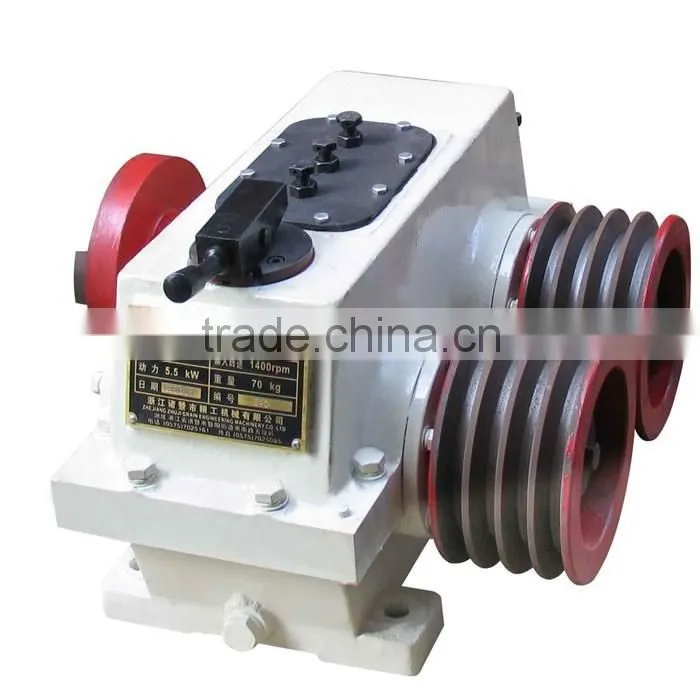

TBSL series Gearbox
Technology Features
This series of gearbox is based on the old type LJZ series of gearbox, we have improved the general structure, precision. And it is more reliable. It is also can be installed in the old MLGT Husker. This series of gearbox has several features as follow:
u Low noise;
u Stable transmission;
u High strength of gear;
u Good and stability Shaft;
u Good oil sealing with lower oil leaking.
Technical parameter
Model |
Suitable husker |
Power (kw) |
Input speed (r/min) |
Dimensions |
Weight(kg) |
TBSL15 |
MLGT63 |
15.0 |
|
639×458×355 |
150 |
TBSL11 |
MLGT63 |
15.0 |
|
722×456×322 |
140 |
MLGT51B |
11.0 |
1440 |
|||
TBSL7.5 |
MLGT51 |
11.0 |
|
722×410×322 |
90 |
MLGT36 |
7.5 |
|
|||
TBSL5.5 |
MLGT25 |
5.5 |
|
520×453×322 |
80 |
TBSL5.5 TBSL7.5
TBSL11 TBSL15
We will make sure all the machine with film wrapping inside to make sure machine is under dry emvironment. And we also make strength wooden box ( no need fumigation) to make sure machine will not be broken during long way of sea transport.
As we all know that, all the grain processing machine need friendly, safety, cleaning environment. So we can design and producing all the dust collecting air system;
We can provide friendly, patiently pre-sale product and factory consultation service;
We can provide prompt producing, shipping, documents and after-sales service.
Wuhan Good Rain Machinery Co., Ltd is a Young company but our goal is like the good rain always moistening the life also human forever.
Our Mission: Provide Cleaning, safty, friendly, healthy grain and food processing solution.
Our Vision: Help more poor people and rich boss. Trust more, more trust!
Q: Electricity Voltage, frequency only can be 380V, 50Hz or others all avaible?
A :Yes, we can customized as your requirement.
Q: Sieve hole size can be customized or not?
A: Yes!
Q: LCL or FCL which you prefer?
A: We can provide LCL and FCL shipping service, but LCL cost is really lower for you and us!
