Home > Products > Inspection equipment > 10g-5000g weight sorting machine
10g-5000g weight sorting machine
- 50 Set / Sets per Month
- Wuhan Shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | China | Brand Name: | GOOD RAIN | Model Number: | GY10-5000 |
Type: | Checkweigher | Power Supply: | AC220v50Hz | Display Type: | 7-inch Full color touch screen |
Rated Load: | 10-5000g | Accuracy: | 0.05-0.2g |
Product Description
1, Application
Weight checking for packing products, to ensure Weight and quality up to standards
2,Main Features
High speed, high sensitivity, high stability dynamic weight checking
1) Adopt high sensitivity imported sensor
2) stability
Accurate and efficient rejector system
1, Various kinds of quick rejector systems, catering for rejecting various unqualified products under different production speed
Professional human-machine interface design

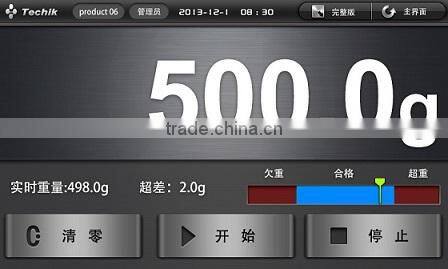

1, Full color touch screen system, simple, intuitive and easy to operate
User-friendly features
Top-level craft, professional mechanical design
Good environmental adaptability and stability
Brief user parameter setting
3, Technical parameters
Model | IXL-160 | IXL-230S | IXL-230L | IXL-300 | |
Detecting Range | 10~600g | 20~2000g | 20~2000g | 20~5000g | |
Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | |
Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | |
Detecting Speed(Max speed) | 250pcs/min | 200pcs/min | 155pcs/min | 140pcs/min | |
Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | |
The weighed product size | Width | 150mm | 220mm | 220mm | 290mm |
Length | 200mm | 250mm | 350mm | 400mm | |
Weigher platform size | Width | 160mm | 230mm | 230mm | 300mm |
Length | 280mm | 350mm | 450mm | 500mm | |
Operation Screen | 7-inch Touch LCD Screen | ||||
Product Storage Quantity | 100 kinds | ||||
Segments Number of Sorting | 2 or 3 | ||||
Rejecter | Rejecter Optional | ||||
Power Supply | 220V (Optional) | ||||
Degree of Protection | IP30/IP54/IP66 | ||||
Body Material | Stainless Steel (SUS304) |
