IXL-160 Weight Checker

IXL-160 Weight Checker thumbnail-1
IXL-160 Weight Checker photo-1
US$ 5,000 - 7,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GOOD RAIN
Model Number:
GY IXL-160
Contact Supplier Request Quote Chat Now
Wuhan Good Rain Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name GOOD RAIN
Model Number GY IXL-160
Type Checkweigher
Power Supply AC220v50Hz
Display Type 7-inch Full color touch screen
Rated Load 10~600g
Accuracy 0.05g

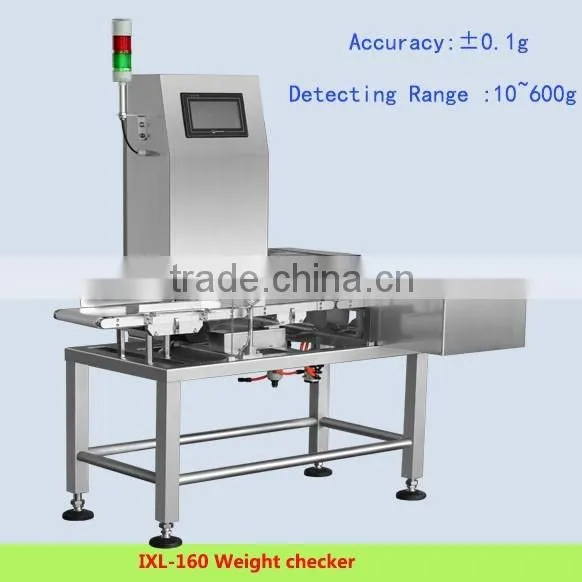

IXL-160 weight checker



Product Description

1, Application



Weight checking for packing products, to ensure Weight and quality up to standards, which was widely used in food ,medicine,consumables etc. field on line weight checking







2,Main Features:



1.     High speed, high sensitivity, high stability dynamic weight checking

       1)  Adopt high sensitivity imported sensor

       2)  Fairly good operation stability , Ensure long timestable operation, no need to revise parameters everyday

         Ensure long timestable operation, no need to revise parameters everyday

2, Accurate and efficient rejector system

        We supply Various kinds of quick rejector systems, catering for rejecting various unqualified products                 under different production speed



3, Professional human-machine interface design

   IXL-160 weight checker



4, Humanization functions

     1) Max. 100 kinds of products could be stored in data base

     2) With password protection function, only authorized users have the right to revise the data

     3) Data Statistic Analysis

     4) Support data export, provide USB and Ethernet interface

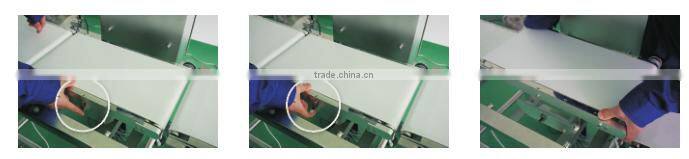

5,Top-level craft, professional mechanical design



  1) The frame of the machine is made of stainless steel material and also applied with sand blasting technology



  2) Built-in hinge design, easy to clean



  3) Conveyor belts were easily disassembled and maintain



IXL-160 weight checker



6, Good environmental adaptability and stability

    Fairly good water proof and dust proofcapability, IP30, IP54, IP66 available

7, Brief user parameter setting

   Parameters can be adjusted automatically, all Parameters are easy to be setted





3, Technical parameters



Model IXL-160
Detecting Range 10~600g
Scale Interval 0.05g
Accuracy ±0.1g
Detecting Speed(Max speed) 250pcs/min
Belt Speed 70m/min
The weighed product size Width 150mm
Length 200mm
Weigher platform size Width 160mm
Length 280mm
Operation Screen 7-inch Touch LCD Screen
Product Storage Quantity 100 kinds
Segments Number of Sorting 2 or 3
Rejecter  Optional
Power Supply 220V (Optional)
Degree of Protection IP30/IP54/IP66 Optional
Body Material Stainless Steel (SUS304)





4,Product main  configurations:



Items

Parts name

Brand

1

Weight sensor

Germany HBM

2

Drive motor

Japan ORIX

3

Control converter

Japan Panasonic

4

Solenoid valve

Japan CKD

5

Air cylinder

Japan CKD

6

Photoelectric sensor

French Schneider

7

Electrical control

French Schneider

8

Alarm lamp

America EMA

9

Connector

Japan MISUMI

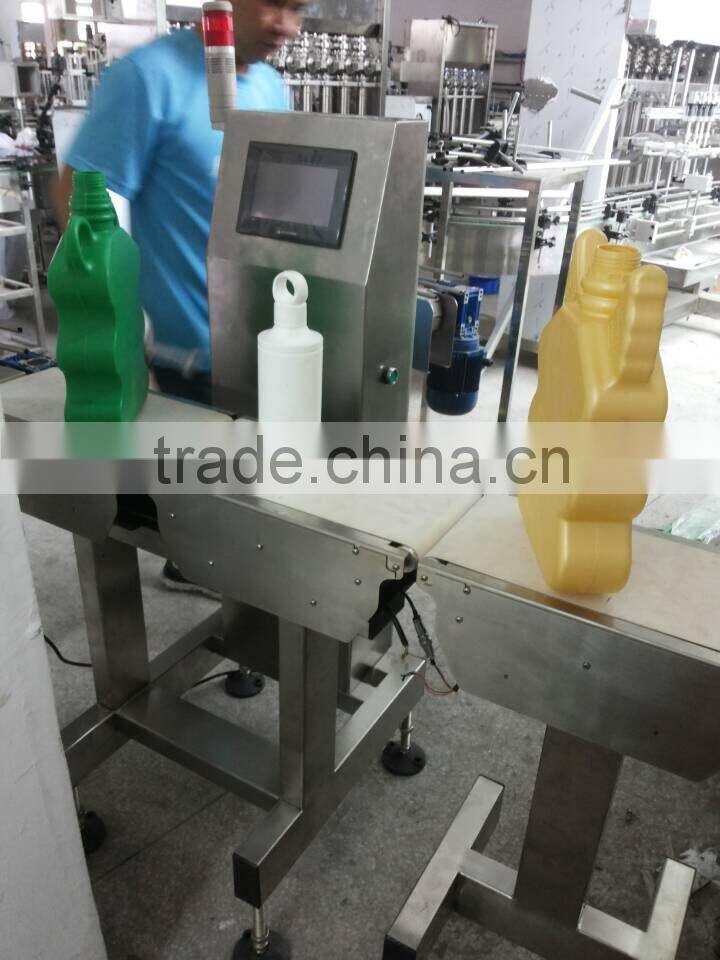

5,Practical case

   1) combined  with  bottle filling line

IXL-160 weight checker



Packaging & Shipping

We will make sure all the machine with film wrapping inside to make sure machine is under dry emvironment. And we also make strength wooden box ( no need fumigation) to make sure machine will not be broken during long way of sea transport.



Our Services

 1. For all your inquires about us or our products, we will reply you ASAP

2. Machines are under guarantee repair for 1 year except for human reasons, after service forever.

3. Lifetime spare parts available



Company Information

 Wuhan Good Rain Machinery Co., Ltd is a professional manufacturer& trading company of various types of food processing machine and  has become a brand enterprise in the rice processing industry.

Our Mission: Provide Cleaning, safety, friendly , and healthy food processing solution.

Our Vision: Our products, as the runnel, trickles into your heart and turns into good rain that moistening everything of your life



FAQ

1. Payment term: T/T 30% deposit after order confirmed, the balance paid against copy BL . or L/C at sight
2. Lead time : normally in 4 weeks after deposit received .
3. Shipping port: Wuhan, Shanghai / Qingdao/Tianjin China
4. Discounts : We offer discount for long term cooperated customers

5,About product Electricity Voltage and frequency , we can customized as your requirement.

6: We can provide LCL and FCL shipping service, but LCL cost is really lower for you and us



For more details, please contact me directly!

IXL-160 weight checker
