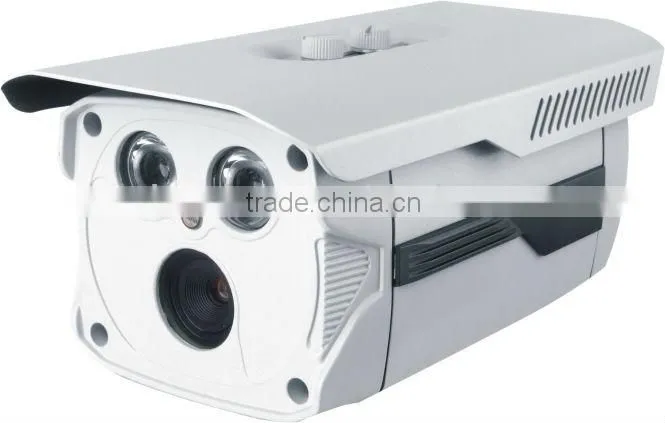

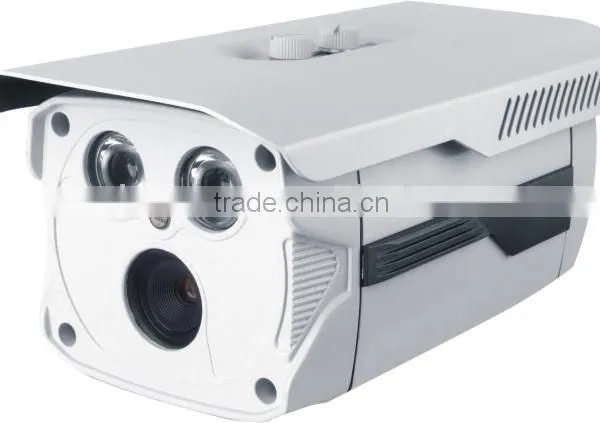

Top ten new desian IR camera, hotsale!
CCTV Camera/IR Camerae/CCD Camera:
-1/4 CMOS 800TVL, IR distance 60m
-8,12,16, 25mm CS lens.
Key function:
1/4 CMOS IR camera 800TVL
2pcs array led, IR distance 60M
two years warranty
Model number |
AK-31000TK |
Imaging Sensor |
1 / 3" SUPER HAD || Hi-sensitive CCD |
Pixel |
PAL: 752(H)×582(V); NTSC: 768(H)×494(V) |
Signal System |
PAL/ NTSC |
Syn. System |
Internal Synchronization |
Shutter speed |
PAL:1/50~1/100000s; NTSC:1/60~1/100000s |
S/N Ratio |
More than 50dB(AGC OFF) |
Video Output |
1.0Vp-p, 75 ohms |
Horizontal resolution |
Color 600TVL, B/W 650TVL |
D/N Switch |
Auto/Color/B/W/External Control |
Brightness Switch |
Color to B/W & B/W to Color for option |
D/N Switching Time |
1s~30s Optional |
Title setting |
54 characters |
Title Position |
Any position on the Screen |
Image Brightness |
0~255 adjustable |
AGC |
Low/Milddle/High choice |
Strong Light Reversion |
On/off, 0~255 adjustable |
Backlight Compensation |
On/Off,Two Area Setting |
IR Smart |
ON/OFF |
IR LEVEL |
LOW/MIDDLE/HIGH |
DPC |
Support |
Privacy Zone |
1~8 Zones for setting privacy areas |
Privacy Zone Color |
Black/Grey/Color. 1-16 Colors optional |
Parking line |
Support |
Wide dynamic compensation |
0-63 adjustable |
Motion Detection |
On / Off (multi-sensitivity settings, alarm time optional) |
Alarm Display |
track / Icon optional |
AWB |
ATW1/ATW2/AWC / MANUAL |
Mirror |
On/Off |
Sharpness adjustment |
0~255 adjustable |
Contrast adjustment |
0.3~1.0 adjustable |
Len Shade Compensation |
0-255 adjustable |
2DNR |
ON/OFF |
Menu font |
0-15 adjustable |
NEG image |
Support |
CCD white Point Auto-detection |
Support |
RS-485 Remote Control |
support (optional) |
Communication Add. |
1-254 optional |
BPS baud rate |
2400/9600/14400/19200/38400/57600 |
Control Protocol |
Pelco-D / Pelco-P/NEXTCHIP protocol |
Video Output |
BNC Mode: twisted-pair method (built-in twisted pair transmission module) |
Power Supply |
DC12V/AC24V(optional) |
Power Consumption |
2.5W |
Operation Temperature |
-100C~+500C |
Operation Humidity |
20~80% |
Storage Temperature |
-400C~+600C |
Storage Humidity |
20~95% |
Our advantage:
Good quality with two years warranty!
Soon deliver date 3-5 days.
2013 new design camera housing help you catch the market
Payment term:
Accept TT in advance, Paypal, West Union
Deliver date:
3-5 days after getting your bank slip
Shipment:
By TNT, DHL, FEDEX express, By air or By sea.
