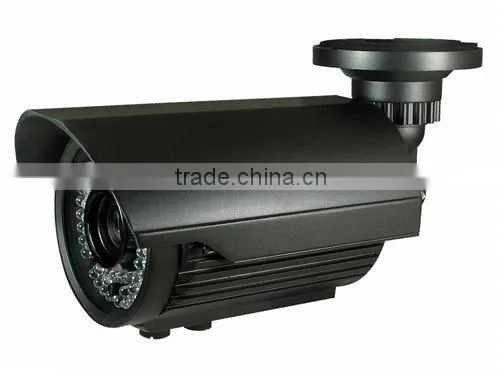

Weatherproof 700TVL Sony, IR Camera Sony Effio-P WDR

Name: Weatherproof 700TVL Sony, IR Camera Sony Effio-P WDR
Brand: Thanks or OEM
SKU: 101160715

US$ 10 - 50 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Thanks or OEM

Model Number:

AK-331TK-P

Guangzhou Thanks Electronic Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Thanks or OEM

Model Number AK-331TK-P

Type Analog Camera

Style Bullet Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

1)1/3 Sony SUPER HADII CCD
2)700TVL Effio-P DSP
3)0Lux/F1.2(IR ON)
4)2.8-12mm manual zoom lens
5)120dB super WDR

Features:

·1/3’’ Sony 960H High Sensitivity CCD,Effio-P DSP

·700TVL

·72pcs Ø5 IR LED

·2.8-12mm manual zoom lens

·120dB super WDR

·2D/3D-DNR,privacy zone,motion detection,ATR

·DIS,Digital zoom,Sens up,Multi-languauge

·OSD

·IP66

Specification:

Model	AK-331TK-P
Sensor	sensor	1/3” 960H High Sensitivity CCD
	Video Format	PAL/NTSC
	Resolution	700TVL
	Horizontal resolution	PAL:967(H)x582(V),NTSC:967(H)x494(V)
	Mini. illumination	0Lux/F1.2(IR ON)
	S/N Ratio	≥50dB Min. (AGC OFF)
Menu Operation	WDR	DWDR,WDR,BLC,HLC,OFF
	AGC	AUTO;MANUAL(0-20)
	Electronic shutter	NTSC:1/160-1/100,000 PAL: 1/150-1/100,000
	DC manual shutter	1/60(50),1/120(100),1/250,1/500,1/1000,1/2000,1/4000,1/10000
	DNR	3DNR,OFF,2DNR
	White balance	PUSH/USER1/ USER2/PUSH LOCK/ATW(2000-1000°K)
	BLC	OFF,BLC,HSBLC
	Day/Night	AUTO,Color,B/W
	Motion detection	4 programmable zone(On/Off,position,sensitivity)
	Privacy	ON/OFF(15 programmable zone)
	Mirror	Off,V-flip,H-flip,HV-flip
	Picture adjustment	Sharpness/Brightness/Contrast/HUE/Gain
	D-zoom	0-255x
	OSD language	English/Japnese/Germany/French/Russian/Putuguese/Spanish/Chinese
Power	Voltage	DC12V+10%
Power	Current	350mA
Video output		1.0VP-P/75ohm video 0.714VP-P Sync 0.286Vp-p
Lens		4-9mm auto iris lens
IR LED		72pcs Ø5 IR LED
Sync. System		Internal
Operating Temperature		-10°C-50°C
Operating humidity		10%-85%
Storage Temperature		-20°C-55°C
Storage humidity		0%-90%
